more photos of my xr650r rack set up !!!

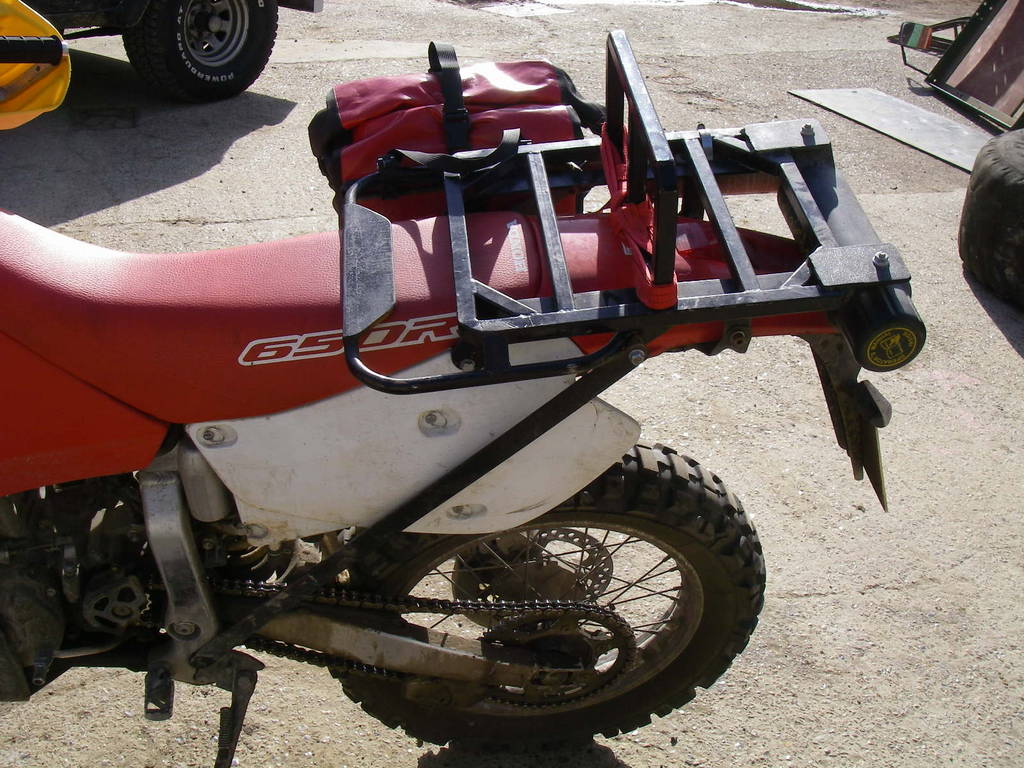

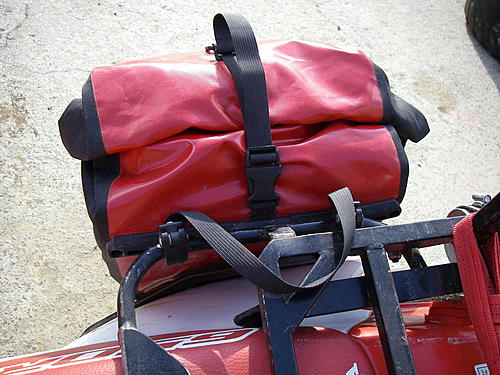

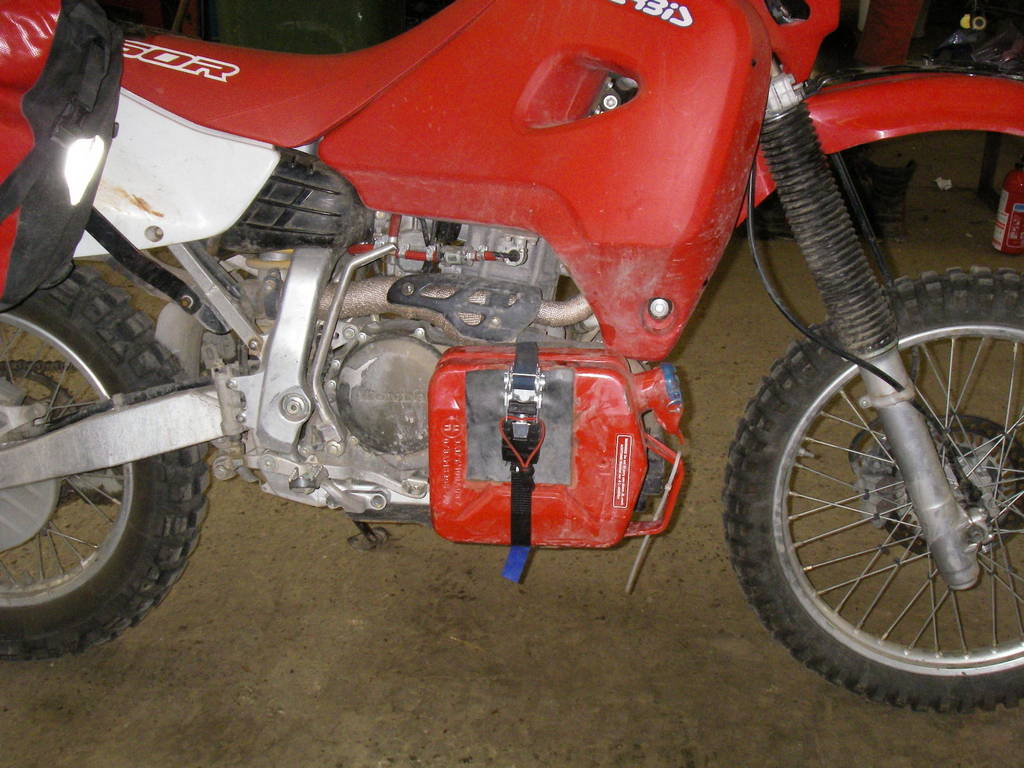

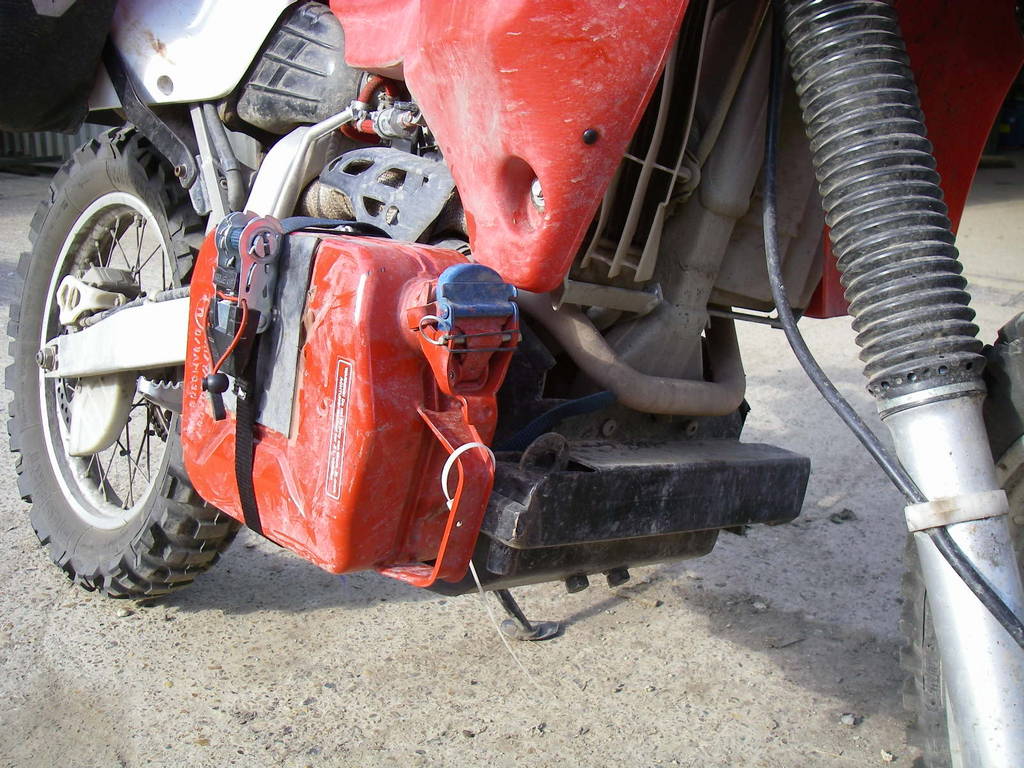

here,s some more photo,s of my jerry can set up and panniers, the sump guard mounts to the original mounts and also an additional mount across the frame rails to take the weight of the jerry cans ( you can see the bolt heads just under the tool box) i looked at various sumpgurds but not many offered much protection for the oil filter housing or flywheel cover, they were also were quite exspensive, the pannier are a bit higher than i wanted but it was a bit of a compromise, and they are out the way of the exhaust, if any body wants any particular close up,s drop me a line and i will see what i can do.
Attached Thumbnails
more photos of my xr650r rack set up !!!-imgp2367.jpg

more photos of my xr650r rack set up !!!-imgp2368.jpg

more photos of my xr650r rack set up !!!-imgp2369.jpg

more photos of my xr650r rack set up !!!-imgp2370.jpg

Last edited by freddy; 1 Mar 2010 at 22:05.
Reply With Quote
  #2
Old 6 May 2009
Registered Users
Veteran HUBBer

Join Date: Nov 2007
Location: The Netherlands
Posts: 184
What exacxtly do you plan on carrying on that rack! water bufferlo perhaps!?
__________________
'99 R1100GS - In a suitable shade of black

It's not that life is so short, It's just that we're dead for so long....
"The world is a book, those who do not travel read only one page." ~ Saint Augustin
Reply With Quote
  #3
Old 6 May 2009
Contributing Member
Veteran HUBBer

Join Date: Aug 2005
Posts: 839
Xr650r
Great pictures, thanks but now we want to see some of your trip.
Reply With Quote
  #4
Old 6 May 2009
Registered Users
Veteran HUBBer

Join Date: May 2007
Location: yorkshire
Posts: 362
Hi Freddy

If It Help's
I have tried that type of pannier,I think they are made for use on Push Bikes
They are very waterproof,but the problem I found with them was that if you intend to go off road,or even if you ride on very pot holed roads the brackets that they use are not strong enough

I returned to the through over type.

Stay Safe

Dazzer
Reply With Quote
  #5
Old 6 May 2009
Registered Users
HUBB regular

Join Date: Feb 2002
Location: charlwood surrey
Posts: 61
water buffalo why not !!!
yes i know it,s a bit over kill but i am a ag-mechanic and i tend to over build thing,s, but i can tell you none of my racks have broken in over 70,000 k,s o f overlanding, might have to up the power to carry it tho !!! good point about the throw over bags, i did think of using 4 mounts instead of two but i had no problems on my last trip, but i did not over load them. the photo is froM ERG CHEBBI
Attached Thumbnails
more photos of my xr650r rack set up !!!-dsc00046.jpg

Reply With Quote
  #6
Old 7 May 2009
Registered Users
Veteran HUBBer

Join Date: Sep 2004
Location: Estonia
Posts: 351
I have brand new Ortlieb quick-release moto panniers, similar to bicycle ones that I planned to mount on racks but after several reports that these plastic mounts will break I'm in doubt.

I recently read another report that these plastic mounts just break from bike falling over. See video here:

Sibirsky Extreme » Blog Archive » Pannier trouble origins
Reply With Quote
  #7
Old 7 May 2009
Registered Users
HUBB regular

Join Date: Feb 2002
Location: charlwood surrey
Posts: 61
panniers
hi mate , yes you are right, ithink if you did take a tumble then the brackets may well break, if i was going on a long trek then i would have a few spare set,s ,as they are not exspensive, also they were so cheap (£60)compared with other option,s that i thought if they last this trip then i would have had my moneys worth, i had no problems, but i must stress that i did not overload them.
Reply With Quote
  #8
Old 14 Jun 2009
Registered Users
Veteran HUBBer

Join Date: Jul 2002
Location: Alexandria
Posts: 426
Quote:
Originally Posted by freddy View Post
here,s some more photo,s of my jerry can set up and panniers, the sump guard mounts to the original mounts and also an additional mount across the frame rails to take the weight of the jerry cans ( you can see the bolt heads just under the tool box) i looked at various sumpgurds but not many offered much protection for the oil filter housing or flywheel cover, they were also were quite exspensive, the pannier are a bit higher than i wanted but it was a bit of a compromise, and they are out the way of the exhaust, if any body wants any particular close up,s drop me a line and i will see what i can do.
Hey Freddi
so what do you use the jerry can for ? water or fuel?
if its for fuel , no problem with the heat of the negine?
just asking as i need to add 2 jerry can ( 5 liters each )on the engine guards of africa twin??? (worry about dropping the bike and the heat of the engine ifi i put it there )
cheers
Omar
Reply With Quote
  #9
Old 15 Jul 2009
Registered Users
HUBB regular

Join Date: Feb 2002
Location: charlwood surrey
Posts: 61
hi omar
hi omar ,first off real sorry for such a late reply, i have not checked this website for a while, i will try and answer your questions, i only used the r.h.s. jerry for water as it was quite near the exhaust, i only filled the petrol one on the l.h.s if i really needed to , this set up did not up set the handleing at all , also i put a broom handle across the jerry can,s and it made a very comftable easy rider seating position, well omar once again sorry for late reply, email me for any other questions, safe travels mate cheers fredddy
Reply With Quote
  #10
