21 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Melbourne
Posts: 67
|
|
What 4x4 truck? A 4x2 van!
Hi all,
I'm going to propose something that might seem 'ridiculous' to some, but I feel like it's worthy bringing up regardless…
We've been in the process of planning an overland trip from Oz to Europe for some time now, and have looked at many trucks and weighed up the pros and cons, and have come to the following conclusions:
- The vehicle needs to fit in a 20" container, to keep the cost down on multiple shipments over an 18 month period. So:
- Max length 5.75 and height 2.28
- We need to be able to get from sleeping position to behind the wheel, for security purposes
- We need to sleep 2 adults, 2 children
The above cancels out rooftents, as well as any existing camper conversion based on either landrover or landcruiser, incl. troop carrier, what's available in Australia anyway.
So, I've ended up been 'convinced' that building a camper to go on the back of a landcruiser '79 cab chassis is the best approach.

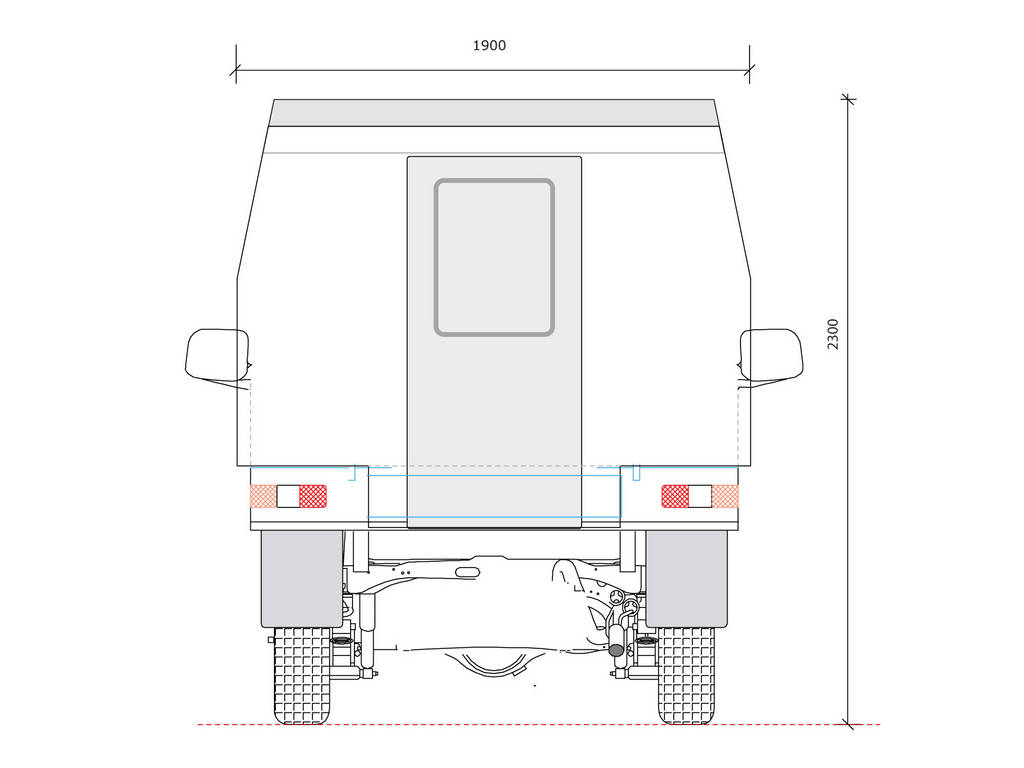

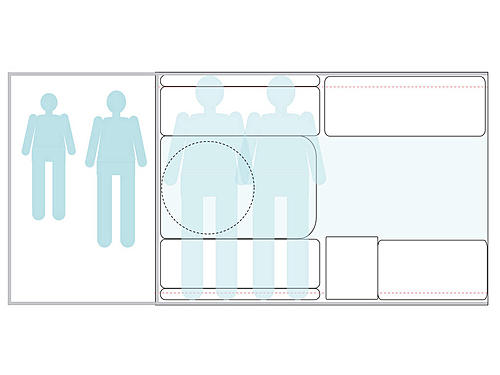

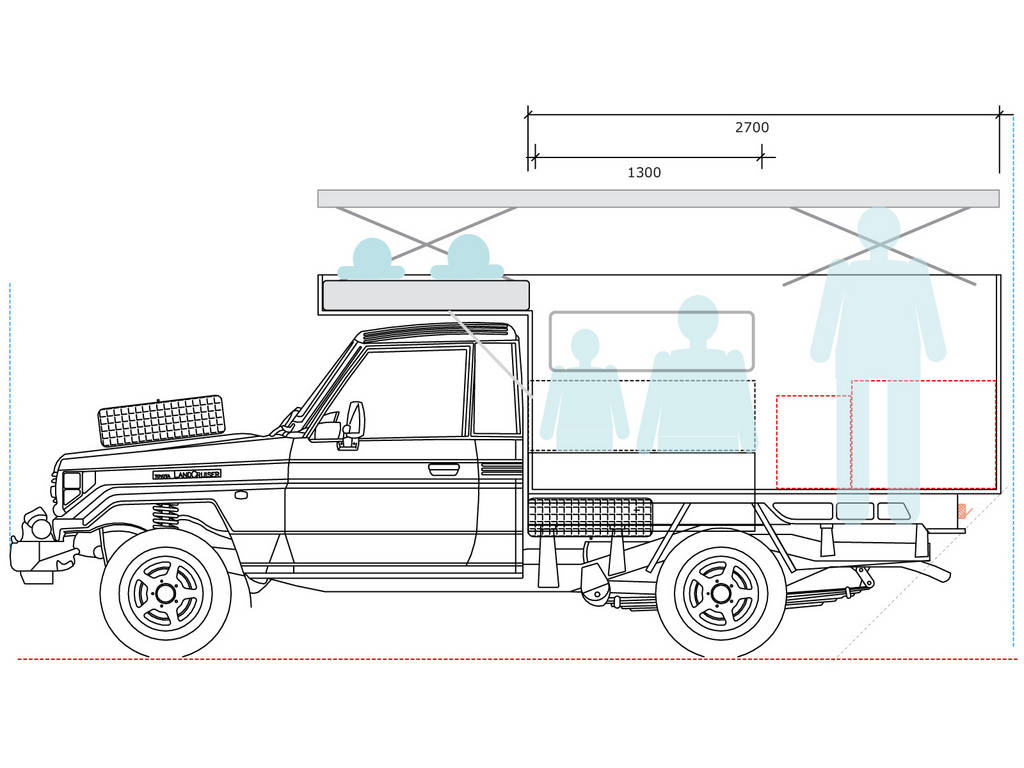

See sketches below.
Here's the catch:
As many past-overlanders have pointed out, Europe to India doesn't really require a 4wd, neither do the bits between Australia and India.
As many aboriginals proove, driving old holden utes (2wd), 99% of the area's in Australia where we'll be travelling, will be fine in a 4 x 2 with reseanoble ground clearence as well. Of course 'most' ozzies will not venture outback unless they're in a $70k landcruiser with $30k with of extra kit, but many of these vehicles have never seen the simpson dessert.
So, now I'm thinking: Should we really go to all the expense and effort of kitting out a landcruiser with a camper on the back, with as end result a vehicle that is most capable 'off road' (how much off road will we really be going - 5% if given the chance?), or are we better off with a Ford Transit van, 2.4 diesel, heaps more room, as it's a 'cab-over' design, which means more room for the kids, more room for camper fit-out, and ultimately a more 'comfortable' travelling experience purely because of the extra room?
So:
- I can pick up an early 2000 transit bus and do a relatively 'simple' camper conversion myself, by installing a pop-top in the existing roof, and doing the usual camper kitout inside the existing shell,
Or:
- Buy an early 2000 landcruiser and go the full hog with building an entire camper from scratch, including cutting open the landcruiser cab to allow for an open connection between camper and the cab…
Note that We'll be avoiding the rainy seasons in all relevant countries we're travelling through, however we will be travelling on 'high' roads, such as the road to Kathmandu and the Karakoram Highway however these road to get travelled by transits as well far more capable vehicles…
No, you can't get a 4x4 transit in Australia :-)
What is wisdom? At this point I don't know… I'm weighing the above issues up… I'd be interested in your thoughts!
cheers
Kai
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
21 Nov 2008
|
Registered Users
Veteran HUBBer
|
|
Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
|
|
- The vehicle needs to fit in a 20" container, to keep the cost down on multiple shipments over an 18 month period.
I'm still not 100% convinced that using shipping containers is the cheapest way to go if you can have access to RoRo vehicle carrying ships. The initial port to port prices seem to be competitive but when you add in additional port handling charges and transport charges (the container has to leave the wharf to be unloaded) RoRo comes out even or just a few dollars more expensive.
You just have to make sure that you have access to the car carriers schedules and have a bit of flexibility on timing.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
21 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Melbourne
Posts: 67
|
|
Point taken, however RoRo is not available for every sea crossing, and unless we can go on the same ship it isn't that safe either.
Malaysia to India is probably the main one where container is the only option, and at around US $1500 quite reasonable.
We have to ship back from Europe to Oz in the end as well.
I've also worked out that there's a company in Oz that can convert a transit to 4wd and lift it. Have to look into total costs though…
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
21 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Ireland
Posts: 27
|
|
If i was in your position id go for the transit.
4x4 would make it alot easier but with a decent bit of driving you can get
transits pretty much any where(ish).
But if you managed to convert it to 4x4 then ya laughing.
I travelled round in an old merc508 for a while and even that big oath we managed to get up and round and down some pretty mental tracks and passes in northern africa.
The other plus for the transit is the converting. ![Thumbup1](https://www.horizonsunlimited.com/hubb/images/smilies/thumbup1.gif)
Piece of cake compared to other option.
Well thats my 2 penny's thrown in.
Good luck whichever you choose.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
21 Nov 2008
|
Registered Users
Veteran HUBBer
|
|
Join Date: Aug 2008
Location: Shropshire
Posts: 194
|
|
Transit?
From your description I’d go with the Transit. With careful, well planned driving they are actually quite capable off road. I’ve proved it. Going places Series III LR’s struggled with. (1.5 metre snow drifts did defeat it though
Way more room than a LC or any other equivalent 4X4 and pretty good comfort. Oh and you can fit proper seats with integral seat belts in the back for the kids. Waaay safer than some home made camper conversion. Pretty important don’t you think? That single thing would swing it for me if they were my kids.
Maybe you could find a limited slip diff or even a diff locker if you think there maybe off road / poor roads encountered?
I have no knowledge of the new 2.4 diesel but I don’t hear good things about this unit when fitted to LR’s. You may want to investigate that further.
Can you get Mercedes Sprinters in Australia? They come in 4X4 with 3 locking diff's. Best of both worlds.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
21 Nov 2008
|
Registered Users
Veteran HUBBer
|
|
Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
|
|
Quote:
Originally Posted by brethouwer
Point taken, however RoRo is not available for every sea crossing, and unless we can go on the same ship it isn't that safe either.
Malaysia to India is probably the main one where container is the only option, and at around US $1500 quite reasonable.
We have to ship back from Europe to Oz in the end as well.
I've also worked out that there's a company in Oz that can convert a transit to 4wd and lift it. Have to look into total costs though…
|
Safety of your property is not such a big issue nowadays - any country wanting to trade with the USA/Europe or have ships that end up unloading in the USA/Europe has had to put in place some very strict security measures. The days of things "leaving" the wharves in wheelbarrows has long gone. Making sure that you can lock up the rear of the vehicle/isolate the cab can help if you are worried. Plus what really valuable items are you going to leave in the vehicle? Pots and pans, bedding, some clothes, some tools?
Malaysia to India is a RoRo problem, but you can go back to Singapore and ship to India on the host of regular car carriers that do the USA - Japan -Singapore - Europe voyages. Go up Malaysia's West coast into Thailand, come down the East Coast and back into Singapore.
Shipping with RoRo ex Europe is very easy, Bremerhaven, Europoort, Felixstowe, Bristol, Tilbury, Le Havre all have regular sailings to Australia via Singapore.
Doing conversions is always a bit dodgy, that one part critical to the conversion will not be available off the shelf if it breaks - if at all. A diff locked Tranny would be good, a Merc with worldwide spares support would be better.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
22 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Ireland
Posts: 27
|
|
If you can get mercs over there go for a 208/408.
I'd go for one of these over a transit any day.
They all turn on a sixpence due to the rack and pinion steering.
Solid motors and as you said parts every where.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
23 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Melbourne
Posts: 67
|
|
mercedes 313CDI
Quote:
Originally Posted by FunkyFro
If you can get mercs over there go for a 208/408.
I'd go for one of these over a transit any day.
They all turn on a sixpence due to the rack and pinion steering.
Solid motors and as you said parts every where.
|
Hi FunkyFro - the mercs a plentiful in OZ, ie mercedes 313CDI, which still (just) fits in a container (if letting the air out of the tires will give me another 65mm), and should have enough grunt w. 95kw and 300Nm of torque to get up the mountains...
I read in your introduction that you've done a lot of travelling with a Merc yourself, not sure where you have or haven't been, the times that you did get stuck, was this due to lack of ground clearance, lack of rear diff, no front wheel drive or all of the above?
I could probably get the merc lifted a bit and a rear diff lock shouldn't be too hard to organise either…
The idea of travelling in a proper 4x4 obviously really appeals to my maleness, being able to go 'everywhere', but don't want to go down the big truck route, and starting to realise the limitations of having 4 in a converted landcruiser… possible but perhaps not the best choice for being on the road for 18 months…
Roger - thanks for your feedback on RoRo, great tip on Singapore to India RoRo, will certainly look at that. It would be great if every crossing is RoRo, but there are a few unpredictable crossings, such as Darwin to Dili (somie have been lucky to hitch a ride RoRo, others have had to do container), and if the shit hits the fan in Pakistan as we're about to cross from India to Iran, we need a backup plan there, which could possilby be shipping from India to Iran or Dubai (or shooting up to the stans via China and dropping down into Iran from there)… in short, too many unkowns to travel with an oversized vehicle… plus, i like the idea of keeping things 'small'(ish)!
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
23 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Ireland
Posts: 27
|
|
"I read in your introduction that you've done a lot of travelling with a Merc yourself, not sure where you have or haven't been, the times that you did get stuck, was this due to lack of ground clearance, lack of rear diff, no front wheel drive or all of the above?"
Pure driver inexperience!!!
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
23 Nov 2008
|
Registered Users
New on the HUBB
|
|
Join Date: Aug 2006
Location: Panama
Posts: 5
|
|
Sprinter every time. Hi top containers.
Would not touch the Ford. Ford are useless at support especially in countries where the van is not sold.
Go with the Sprinter it is sold worldwide and has better track record of reliability.
The landcruiser will be cramped - dont do it. Too long on the road and friction will heat things up too much.
Would definitely go container every time for security - the extra dollars are worth it for peace of mind rather than handing over keys and trying to seal off the sleeping compartment.
Forget the 20ft container - difference between cost of 20 and 40 is insignificant. Plus a lot easier to get a 40ft high top which gives you the extra height you were looking for with a sprinter. 20ft high tops are v rare.
We travelled in a Ford through the americas (Top to bottom) - it was kitted out by Sportsmobile and had a 4x4 conversion. The clearance was needed more than the 4x4. It fitted in a container (hi top) - but it was hell to get serviced especially common rail diesel. So avoid electronics.
Good lights - 360 degrees is more important than 4x4 (lights are better than an audible alarm). Actually a great water filter is probably the no 1 requirement way above 4x4.
Neil
Index
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
24 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Melbourne
Posts: 67
|
|
Quote:
Originally Posted by FunkyFro
"I read in your introduction that you've done a lot of travelling with a Merc yourself, not sure where you have or haven't been, the times that you did get stuck, was this due to lack of ground clearance, lack of rear diff, no front wheel drive or all of the above?"
Pure driver inexperience!!!
|
Haha! Sounds familiar, my last big trip with a 2x4 during 4 months saw me stuck only once - at the first camping spot - not being careful where i parked!
Do you think it's worth getting the Merc lifted? There a company in Zaire that supplies springs that lift it 45mm
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
24 Nov 2008
|
Registered Users
HUBB regular
|
|
Join Date: Sep 2008
Location: Melbourne
Posts: 67
|
|
Merc and not Transit
Quote:
Originally Posted by yarglien
Would not touch the Ford. Ford are useless at support especially in countries where the van is not sold.
Go with the Sprinter it is sold worldwide and has better track record of reliability.
The landcruiser will be cramped - dont do it. Too long on the road and friction will heat things up too much.
|
Funny you should say that… my wife isn't too keen on Ford either… One reason i was looking at transit is because there's a company in Oz that does a 4x4 conversion for transit, the Mercs (bar 1% of the ambulances, so rare) are all 2x4 and no-one does conversions…
I might have to let the idea of 4x4 go for this trip…
Good feedback on 4x4 versus lights and water filter Neil, i need that at the moment, putting things in perspective…
I'll certainly look into the cost comparison between 20' and 40' hitop, this would open up the possibility of LWB, although i don't want to become the traveller with the big fat RV… it's a fine balance :-)
come-on guys - any more votes for the landcruiser with camper option? anyone? ![Unsure](https://www.horizonsunlimited.com/hubb/images/smilies/unsure.gif) 230 viewing, and no opinions?
Last edited by brethouwer; 24 Nov 2008 at 14:20.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
24 Nov 2008
|
Registered Users
Veteran HUBBer
|
|
Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
|
|
With four travellers that configuration of Toyota will be a real pain.
Have you seen the conversions of the same model station wagons to 6x4, remove the bit behind the second row of seats, put a tray back on with your camper.
BTW there is a 4x4 Transit for sale in one of the Aus 4x4 Trader mags at present.
The T1 Mercs were not sold in Australia.
The other thought I had was go to Europe and buy a 4x4 Sprinter or T1 Merc Campervan and do the trip in reverse. If you own the vehicle for more than a year overseas you can import it - just have to be aware of converting to RHD - I've done that twice.
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
24 Nov 2008
|
Registered Users
Veteran HUBBer
|
|
Join Date: Aug 2008
Location: Shropshire
Posts: 194
|
|
Quote:
Originally Posted by RogerM
With four travellers that configuration of Toyota will be a real pain.
Have you seen the conversions of the same model station wagons to 6x4, remove the bit behind the second row of seats, put a tray back on with your camper.
BTW there is a 4x4 Transit for sale in one of the Aus 4x4 Trader mags at present.
The T1 Mercs were not sold in Australia.
The other thought I had was go to Europe and buy a 4x4 Sprinter or T1 Merc Campervan and do the trip in reverse. If you own the vehicle for more than a year overseas you can import it - just have to be aware of converting to RHD - I've done that twice.
|
Or just get one in the UK, they are quite plentiful here. Given the choice I would go with a Sprinter.
Getting a Transit converted to 4X4 doesn’t sound a good idea. You just know the conversion will be the weak link. I’ve used a 4X4 Transit County. They were an official Ford conversion carried out by County Tractors. When you looked closely at the conversion it was a real bodge.
First time I used it in anger it broke. Ride/handling was pretty nasty too
|
![Old](https://www.horizonsunlimited.com/hubb/images/statusicon/post_old.gif)
24 Nov 2008
|
Contributing Member
Veteran HUBBer
|
|
Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
|
|
One for the LC camp... what about doing a conversion on a Troopie - I saw one in Morocco owned by a Fench family and it looked pretty good.
What route are you taking?
With some of the vans I would be concerned if the suspension will be up to some of the roads.
__________________
Cheers,
Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
|
Currently Active Users Viewing This Thread: 1 (0 Registered Users and/or Members and 1 guests)
|
|
Posting Rules
|
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts
HTML code is Off
|
|
|
|
Check the RAW segments; Grant, your HU host is on every month!
Episodes below to listen to while you, err, pretend to do something or other...
2020 Edition of Chris Scott's Adventure Motorcycling Handbook.
"Ultimate global guide for red-blooded bikers planning overseas exploration. Covers choice & preparation of best bike, shipping overseas, baggage design, riding techniques, travel health, visas, documentation, safety and useful addresses." Recommended. (Grant)
![Ripcord Rescue Travel Insurance.](/stuff/ripcord/ripcord-logo-250.jpg)
Ripcord Rescue Travel Insurance™ combines into a single integrated program the best evacuation and rescue with the premier travel insurance coverages designed for adventurers.
Led by special operations veterans, Stanford Medicine affiliated physicians, paramedics and other travel experts, Ripcord is perfect for adventure seekers, climbers, skiers, sports enthusiasts, hunters, international travelers, humanitarian efforts, expeditions and more.
Ripcord travel protection is now available for ALL nationalities, and travel is covered on motorcycles of all sizes!
What others say about HU...
"This site is the BIBLE for international bike travelers." Greg, Australia
"Thank you! The web site, The travels, The insight, The inspiration, Everything, just thanks." Colin, UK
"My friend and I are planning a trip from Singapore to England... We found (the HU) site invaluable as an aid to planning and have based a lot of our purchases (bikes, riding gear, etc.) on what we have learned from this site." Phil, Australia
"I for one always had an adventurous spirit, but you and Susan lit the fire for my trip and I'll be forever grateful for what you two do to inspire others to just do it." Brent, USA
"Your website is a mecca of valuable information and the (video) series is informative, entertaining, and inspiring!" Jennifer, Canada
"Your worldwide organisation and events are the Go To places to for all serious touring and aspiring touring bikers." Trevor, South Africa
"This is the answer to all my questions." Haydn, Australia
"Keep going the excellent work you are doing for Horizons Unlimited - I love it!" Thomas, Germany
Lots more comments here!
![Five books by Graham Field!](/stuff/grahamfield/graham-field-2021-280.jpg)
Diaries of a compulsive traveller
by Graham Field
Book, eBook, Audiobook
"A compelling, honest, inspiring and entertaining writing style with a built-in feel-good factor" Get them NOW from the authors' website and Amazon.com, Amazon.ca, Amazon.co.uk.
Back Road Map Books and Backroad GPS Maps for all of Canada - a must have!
New to Horizons Unlimited?
New to motorcycle travelling? New to the HU site? Confused? Too many options? It's really very simple - just 4 easy steps!
Horizons Unlimited was founded in 1997 by Grant and Susan Johnson following their journey around the world on a BMW R80G/S.
Read more about Grant & Susan's story
Membership - help keep us going!
Horizons Unlimited is not a big multi-national company, just two people who love motorcycle travel and have grown what started as a hobby in 1997 into a full time job (usually 8-10 hours per day and 7 days a week) and a labour of love. To keep it going and a roof over our heads, we run events all over the world with the help of volunteers; we sell inspirational and informative DVDs; we have a few selected advertisers; and we make a small amount from memberships.
You don't have to be a Member to come to an HU meeting, access the website, or ask questions on the HUBB. What you get for your membership contribution is our sincere gratitude, good karma and knowing that you're helping to keep the motorcycle travel dream alive. Contributing Members and Gold Members do get additional features on the HUBB. Here's a list of all the Member benefits on the HUBB.
|
|
|
