24V fuel tank selector solenoid valve
Hi all,

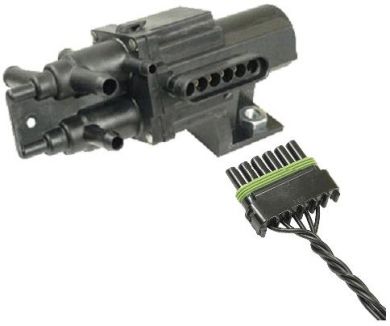

As I have three tanks, I'd rather avoid manual valves, and use remotely activated switch-over valves (each having 6 ports - for feed and return lines). Something like this (unfortunately, they do not make a 24V coil version)



I've been searching for a solution and can't find any for 24V trucks. Plenty available for 12V installations, though. Any idea if these are fitted in trucks as OEM parts, or any alternative source of supply?
__________________
----------------
Roman (UK)
Reply With Quote
  #2
Old 3 May 2011
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Leicestershire,UK, or in my Iveco Daily 4x4
Posts: 474
Hi Roman

I used the 12v version for years in my 101, great piece of kit, just got one for the Iveco now

It only needs 12 volts (0.5 amps) momenterily to affect the switchover, its then not using power, so could you use a stepdown from 24-12 just for that (do you have one already for a radio/cdmp3 player)

Rich
__________________
Rich

Iveco Turbo Daily 4x4 40-10
Ex Owner LR101 300Tdi Ambi 'Tiggurr'
Last edited by rclafton; 3 May 2011 at 14:49. Reason: bad spelling/add current draw
Reply With Quote
  #3
Old 14 May 2011
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: UK
Posts: 273
Try tidyco.co.uk, importers of Parker Marine products, who make a 24v 6 port fuel selector for boats. Probably more reliable than the one in your pic, which has a poor rep in veg oil circles!
Good luck,
Simon.
Reply With Quote
  #4
Old 15 May 2011
Registered Users
Veteran HUBBer

Join Date: Jun 2007
Location: Anchorage, Alaska
Posts: 326
http://www.parker.com/literature/03_09MS%20Flyer.pdf

Looks very expensive, although they can build it for 3 fuel tanks or any number you desire. 12V or 24V.
As you know many/most Euro large trucks are 24V. Try a truck breaker yard and get one from a MAN or Merc or whatever big truck.

Charlie
__________________
Unimog U500 w/Unicat
Reply With Quote
  #5
Old 15 May 2011
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Leicestershire,UK, or in my Iveco Daily 4x4
Posts: 474
Quote:
Originally Posted by mossproof View Post
Try tidyco.co.uk, importers of Parker Marine products, who make a 24v 6 port fuel selector for boats. Probably more reliable than the one in your pic, which has a poor rep in veg oil circles!
Good luck,
Simon.
Hummm... not my experience of the valve running on bio etc, wonder if people put filters on before the device as per spec
__________________
Rich

Iveco Turbo Daily 4x4 40-10
Ex Owner LR101 300Tdi Ambi 'Tiggurr'
Reply With Quote
  #6
Old 16 May 2011
Registered Users
Veteran HUBBer

Join Date: Feb 2010
Location: UK
Posts: 273
Bio's not quite the same as veg oil, as I'm sure you know, but you could well be right - running on pure veg is a bit hit and miss at the best of times... I've been using Jaguar XJ fuel changeover valves in pairs on my veg oil conversions but they're only 12v. There are also similar valves on L/Cruisers equiped with twin tanks. Are they 24v on 24v cars? Anyway, the thread might be meandering a bit if I'm not careful!
Reply With Quote
  #7
Old 16 May 2011
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Scotland
Posts: 775
Hi guys,

Thanks for the tips. These Parker's valves do look expensive, and I bet they are! In the meantie I've found something that might work, is also expensive but at least affordable as a two tanks selector, less so if you have three tanks, like me:

http://uk.rs-online.com/web/search/s...duct&R=0168169

I have a Toyota selector valve on my LC, but it's 12V (even though the truck has 24V starter) so this is not an option for me.
__________________
----------------
Roman (UK)
Last edited by Roman; 19 May 2011 at 00:31.
Reply With Quote
