Camper Body Wall Construction Material
I'm looking to cost the conversion of a 4x4 lorry; there are a number of differing methods to construct the body.

One option that has come to light is a glass fibre reinforced laminated board instead of steel/Ali sheeting. Problem is I don't know the name of the board or any suppliers, can anyone help?

I believe its similar to ply wood except stronger and has a durable hard surface on the outside.
Reply With Quote
  #2
Old 25 Dec 2007
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Hi Josh,

You are thinking of Composites, available in a variety of forms, weights, etc.

I share a workshop with someone that converts lorries into Horseboxes and he has used it a few times. We have been looking into using it for storage solutions in expedition trucks, however it is expensive.

The best place to look for suppliers is in the commercial trucking world.

Are you going to be doing the conversion yourself?
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #3
Old 26 Dec 2007
Chris Scott's Avatar
Super Moderator
Veteran HUBBer

Join Date: Jun 2000
Posts: 4,934

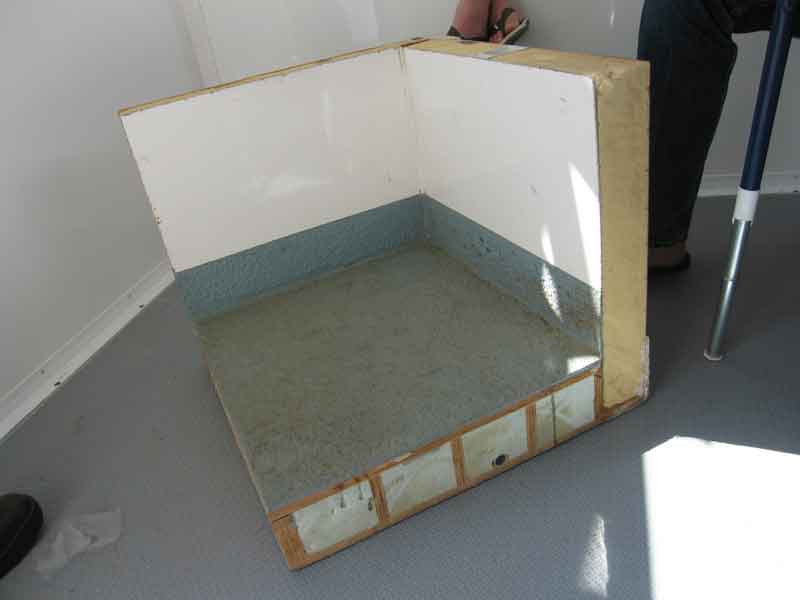

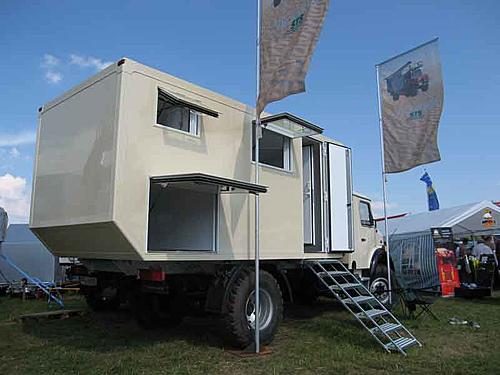

Sounds like the same stuff they use to make refrigerated lorry bodies out of and is much better than metal on wood for an overland truck body IMO. You can buy nice overland-ready shells in Germany (all glued, no metal frame) for around 10,000 euro (see pics) or you can track down an old refridge body as we thought about (on Merc 800D?? vans I believe). It will come with kick-ass air-con too!

Ch
Attached Thumbnails
Camper Body Wall Construction Material-img_4921.jpg

Camper Body Wall Construction Material-img_4922.jpg

Reply With Quote
  #4
Old 26 Dec 2007
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: Cairo
Posts: 304
Info
Have a browse through this web site, a conversion of a Unimog. He has lots of info about stuff.
The UK Unimog owner's meeting place.
And click on "converted into a campervan"
Reply With Quote
  #5
Old 29 Dec 2007
Registered Users
Veteran HUBBer

Join Date: Dec 2001
Location: Denver, CO
Posts: 227
I've heard good things about the Nida-Core composites.

Nida-Core Lightweight Composite Honeycomb Core Materials and Structures

Nick.
__________________
Nick Taylor, a Colorado Mack'em
blog | vehicles
Reply With Quote
  #6
Old 1 Jan 2008
Gipper's Avatar
Contributing Member
Veteran HUBBer

Join Date: Mar 2004
Location: Saltspring Island,Canada/Poole,UK
Posts: 1,081
Hi Josh,
the europeans have got this of to a fine art - and they are great,
Ali sheet works well until it starts to separate from the frame - which happens - albeit after quite a few years.......
'plastic' is the way to go
what truck are you using ?

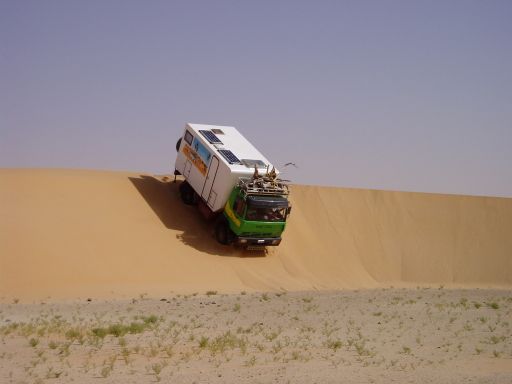

this is a rather nice Steyr S21 4x4 we travelled with in Mauri - not sure who made the box - but i remember the owner saying it was 10-15000 euros ish unfurnished - well insulated and hermetically sealed - no sand ingress at all on the pistes - which is doing better than the 90 !!!

A Happy New Year to All - Even Toyata Drivers
Attached Thumbnails
Camper Body Wall Construction Material-team-oryx.jpg

__________________
Cheers
Grif

'11 KTM 450 EXC
'09 Suzuki DR650
'00 Discovery Series 2 V8
'95 Defender 90 300 Tdi Overlander
http://gipperstravels.blogspot.ca
Last edited by Gipper; 1 Jan 2008 at 04:28. Reason: Drunk
Reply With Quote
  #7
Old 1 Jan 2008
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Happy New year to one and all.

Quote:
Originally Posted by Gipper View Post
Ali sheet works well until it starts to separate from the frame - which happens - albeit after quite a few years.......
The key with joins between Aluminium and Steel is that you have to put a seperating layer between the two, otherwise the Aluminium will eventually corrode.

We usually use double sided tape or bonding mastik to keep the different metals apart and this prevents the problems.
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #8
Old 1 Jan 2008
Registered Users
HUBB regular

Join Date: Aug 2007
Posts: 40
Thanks guys
Thanks for you comments, I've been looking at some of the European bodies from the likes of Unicat and Langer and Bock. I want to use the same material to build my own body for the rear of a Leyland DAF 45 4x4 or a Unimog U100L.

I was looking for a material name or something so I could speak to some of the local Truck Coachbulders to buying the right mateial.

All info greatly recived.
Reply With Quote
  #9
Old 1 Jan 2008
Chris Scott's Avatar
Super Moderator
Veteran HUBBer

Join Date: Jun 2000
Posts: 4,934
AFAIK you can't buy it by the metre or in panels; the GRP sandwich examples in my reply above were cut to size and bonded together to the thickness required under a high pressure press using special glues. And then you glue the pre-formed panels together to make a box (which door/window holes as and where).
I got the impression listening to the German bloke selling the shells (made in Spain, actually) that to DIY to anywhere near their very high standard would be tricky, but that is all you have to do or get done.

good luck

Ch
Reply With Quote
  #10
Old 1 Jan 2008
Registered Users
Veteran HUBBer

Join Date: Aug 2006
Location: christchurch uk
Posts: 299
try this company
Service Metals Commercial Vehicle Fittings Catalogue

Look under grp panels.

Graeme
Reply With Quote
  #11
Old 2 Jan 2008
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Quote:
Originally Posted by Chris Scott View Post
AFAIK you can't buy it by the metre or in panels;
Yes you can ;-)

Yes you can get pre-assembled panels or you can get sheets as you do with ply and then cut them to your own requirements.
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #12
Old 3 Jan 2008
Registered Users
HUBB regular

Join Date: Oct 2006
Posts: 58
this is a german company but they sell the panels cut to size in various thicknesses with all the appropriate fittings and hardware:

ORMOCAR Reisemobil GmbH: Sandwichplatten, Wandplatten, Deckenplatten, Bodenplatten, GFK

not sure how the price compares to getting them to make the whole box for you.

Hope this helps,

regards,

nick
Reply With Quote
  #13
Old 3 Jan 2008
Registered Users
HUBB regular

Join Date: Oct 2003
Location: Lichfield, UK
Posts: 52
You can get panels and various profiles to fit it all together in Germany through AMR-Outdoorwelt Trekking Allrad Offroad Expeditionen Fähren Camping Reisen Abenteuer. Click "ausbau und wohnen" and then "wohnkabinen".

Probably not practical to have panels shipped to the UK, but of interest to see a DIY option, with special panels for floor, and even panels with pipes prefitted inside.

Pieter
Reply With Quote
  #14
Old 29 Jan 2008
Registered Users
New on the HUBB

Join Date: Jan 2008
Location: oxford, uk
Posts: 4
RTM Styrofoam
As others have mentioned, you can use the sandwich panels manufactured for the frozen goods delivery vans - there are several UK suppliers. RTM Styrofoam is the modern version and what I went for in my daily 4x4 conversion - very light, very rigid and very insulated. Also easy to cut and glue together.

cj
Reply With Quote
  #15
Old 9 Jul 2008
Registered Users
HUBB regular

Join Date: Mar 2008
Location: Netherlands
Posts: 36
Try and contact this guy in holland Contact . He has some kind of composite and he claims that it is so hard that if you hit it with a hammer it doesn't even dent. He uses epoxy glue to get it on the metal frame.

regards

Henk Jan
