  #1
Old 26 Jan 2009
Registered Users
Veteran HUBBer

Join Date: Jan 2008
Location: wherever our vehicle is
Posts: 135
security shutters
We are looking for ideas on how to make the best of our shutters. At the moment they can be lifted off and do not lock. We want to have them in place permanently, with a system where we can open them from the inside of the truck, opening up to work as a 'sun shade' for the windows. And we want them to lock from the inside as well!! Not asking for much!!
Any ideas most welcome.
Attached Thumbnails

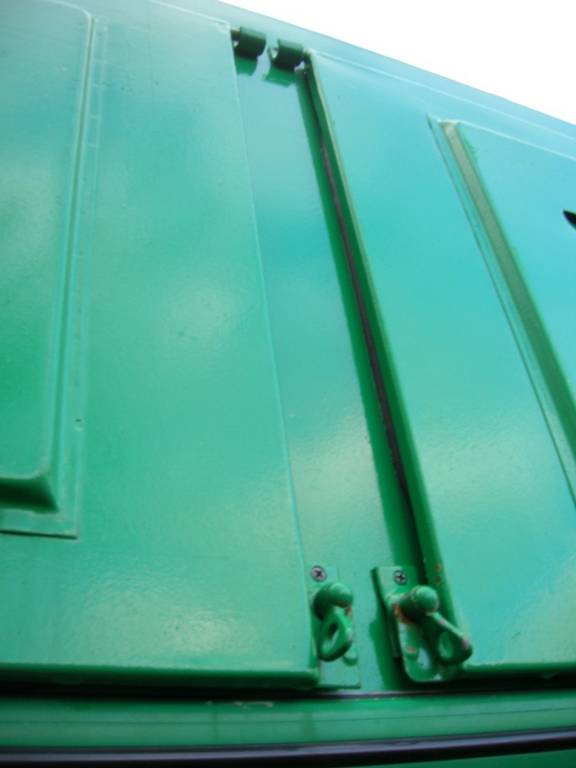

security shutters-dscn2566.jpg

Attached Images

Last edited by monster; 2 Feb 2009 at 11:38.
Reply With Quote
  #2
Old 28 Jan 2009
Registered Users
HUBB regular

Join Date: Jan 2005
Location: Ireland
Posts: 65
Ok, maybe not what you were looking for but click on the link below, select ; Wothahellizat 2: Construction Diaries, then and scroll down to diary #10 then scroll down to Thu 27 Sep entry and follow extra link for more details. I found this website a couple of months ago and was blown away by the amazing construction diary this guy did.

http://www.robgray.com/index_files/index_diaries.php

R
Reply With Quote
  #3
Old 28 Jan 2009
Registered Users
Veteran HUBBer

Join Date: Jan 2008
Location: wherever our vehicle is
Posts: 135
shutters
Many thanks for the web link, we also stumbled upon this site a couple of months ago- a BIG project! This bloke obviously has loads time, money and build experience.
We have thought of the hinge at the top but it's how to lock them and adapt them to open as sun shades that's the real conundrum for us!
Hopefully some-one with more imagination than us will have a eureka moment.
dave
Reply With Quote
  #4
Old 28 Jan 2009
Registered Users
Veteran HUBBer

Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
Is it possible to extend the shafts for the turnkeys so that they enter the cabin and can be turned and locked from inside? You can also get long shaft cabinet locks to put through from the inside.

A pair of gas struts with a locking ring would solve the problem of adjustable lifting - but depends on the weight of the shutters as to the sizing of the gas struts - and available space.
Reply With Quote
  #5
Old 29 Jan 2009
silver G's Avatar
Gold Member
Veteran HUBBer

Join Date: Mar 2007
Location: south Cumbria
Posts: 364
I see you have sliding windows, can you, depending on clearance, fit a bolt to the inside face of the shutter that would locate on the window frame somewhere? Then simply slide back the window, draw the bolt and then close the window to keep the heat in.
__________________
Chris
-----------------
"Never have a stupid argument with an idiot - he gets a lot more practice than you"
there I go again
not too hard really
Reply With Quote
  #6
Old 29 Jan 2009
Registered Users
Veteran HUBBer

Join Date: Jan 2008
Location: wherever our vehicle is
Posts: 135
shutters
Thanks for all feedback! We had thought that we could fit a bolt to each bottom corner of the shutter, drill a hole fitted with a open grommet for it to go thru into the cabin area and then 'R clip' it to 'lock' it??

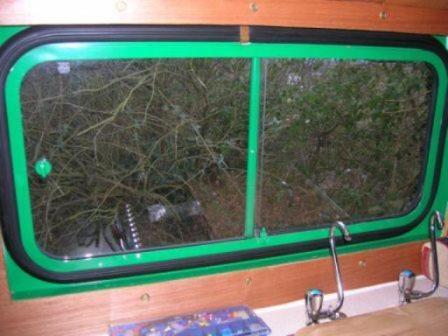

The shaft extension that Roger mentioned would mean us hitting our box metal frame- if you look at the photo of the inside of the window- we are trying to incorporate the lock system within the bottom 'triangle' area of metal, as this is a single sheet and won't disrupt our internal build.
Not sure if we have room for internal gas struts as the shutters are a pretty snug fit.
Keep the ideas coming!
Many thanks guys.
Dave
Reply With Quote
  #7
Old 29 Jan 2009
Registered Users
Veteran HUBBer

Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
Get rid of the external turn buckles.

From that triangular area inside drill a hole, fit a male spring lock - has a circular shaft with a T piece at the end.
On the shutter fit the female part of the spring lock, the male part fits into the hole (as do male parts!!) and when its turned 90 degrees it locks against the spring. You might get them from an aircraft parts supplier or maybe marine shops. Mercedes Benz used them on sump guards for a while.

Might have to fit the gas struts externaly to the shutters. Have a look at how the tailgates on a station wagon have them fitted.
Reply With Quote
  #8
Old 30 Jan 2009
Registered Users
Veteran HUBBer

Join Date: May 2006
Location: Bribie Island Australia
Posts: 678
or something like this T Locks , products new home , FOLDING "T" LOCKPOLISHED STAINLESS STEELKEYED ALIKESTRAIGHT CAM
Reply With Quote
  #9
Old 9 Feb 2009
Registered Users
Veteran HUBBer

Join Date: Jan 2008
Location: wherever our vehicle is
Posts: 135
security shutters
Many thanks to Roger and co for all the hints and tips. Reckon we know what to do now, just a case of getting the weather to do it- we were snowed in with the bad weather!! Probably buy the stuff we need here and do the work on a sunny beach somewhere. Got to be better than knee deep snow and freezing bits. ha ha
Dave
Reply With Quote
