Adding an oil cooler?

I'm interested in the possibility of adding an oil cooler to my Honda XR650L.

I know it's been done, but I've not come across any detailed info, can anyone help?

Cheers folks
Reply With Quote
  #2
Old 23 Mar 2008
Gold Member
Veteran HUBBer

Join Date: Nov 2005
Location: Wells, Somerset
Posts: 233
Try google you idiot

What a muppet, found this, looks good I think.

4Strokes.com Forums - XR400R oil cooler on a XR650L

Not sure what it says about me, that I'm basically talking to myself on an internet forum.
Reply With Quote
  #3
Old 25 Mar 2008
BCK_973's Avatar
Registered Users
Veteran HUBBer

Join Date: Mar 2005
Location: Buenos Aires,City of good sex,mate and asado!
Posts: 539
Look at my blog,done diferent

I was about to do that too but one thing didn´t like me about the position:the extra heat around the cockit area.

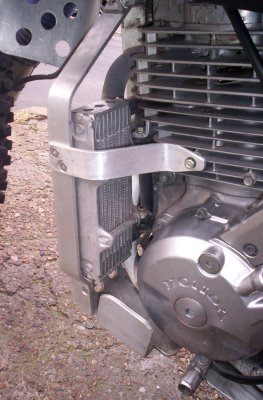

I put an Citroen 2CV oilcooler on the side of the engine.It is biger(more oil circulating) and has bigger cooling area.

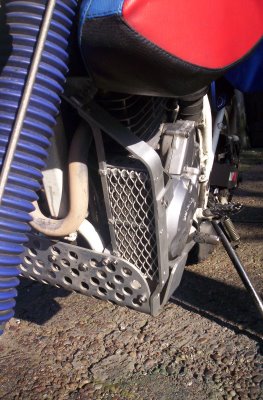

Temperature droped from 110-120 to 80-95º cel. summer riding.no leaking or problems at all.The thing was 10 pound in cost.Did the proteccion myself.
I would only recomend cooling the oil on this "boiler".
KH
Attached Images

__________________
http://vientoderipio.blogspot.com/
America is a nice continent,not a country.All people who lives in this continent are americans.Discover it in peace!

Last edited by BCK_973; 25 Mar 2008 at 19:33. Reason: more data added
Reply With Quote
  #4
Old 26 Mar 2008
Gold Member
Veteran HUBBer

Join Date: Nov 2005
Location: Wells, Somerset
Posts: 233
Cock on, that looks really good KH.

With a bit of luck I'm getting a sump guard/toolkit (can you hear me DJOROB?! :-), that I'd like to get fitted before going any further, but that setup looks really good.

What was the deal with extra fuel capacity? Did you fill the system to see how much you'd have to add to the current capacity?
Can you still use the dipstick measurement?

Also, I take it you've got a temp dipstick..?
Which one did you get? I was looking at a couple of Ebay, not sure which one to go for..

Cheers
Reply With Quote
  #5
Old 26 Mar 2008
BCK_973's Avatar
Registered Users
Veteran HUBBer

Join Date: Mar 2005
Location: Buenos Aires,City of good sex,mate and asado!
Posts: 539
No changes on oil level

Remember that the oil reservoir is on top of pump and cooler.So it shouldn´t change the level.The oil is circulating all the time and filling the reservoir.Much cooler the oil circulates the longer the oil qualitys will last.
I purchased the gauge from germany(ebay).I don´t like farenheit!!!there are some us products too.
ÖLTHERMOMETER Honda XL 600,NX/SLR/XR 250/650,CBR900 RR bei eBay.de: Markenspezifische Teile (endet 28.03.08 11:31:20 MEZ)
This is the one i purchased last year! thats the reason i put the cooler later,hahahaha.
I measured the quantity last oil change.It was about 400 ml more.
Any thing you need PM and we can work it out together.
Karl
