Increasing the oil capacity on a dry sump bike
I have an XR400R, and it has a pitifully frequent oil change schedule. This is no surprise as it only carries about 2 and a bit litres of oil and is air cooled, so the oil works hard, plus the filter is teeny.

Does anyone know of a system/theory for how the oil capacity could be increased?

I had heard a suggestion once of putting another oil reservoir along the oil pipe route between the frame reservoir and the engine, but how workable might this be?
__________________
Adventure: it's an experience, not a style!
(so ride what you like, but ride it somewhere new!)
Reply With Quote
  #2
Old 17 May 2009
djorob's Avatar
Seek and thou shalt find.
Veteran HUBBer

Join Date: Feb 2006
Location: Midlands/UK
Posts: 231
Oil.
Hi.
How abourt increasing the tank (frame) volume at the point above the motor behind the steering tube by welding a chamber to the main oil reservoir?
You could cut a few slots into the oil tank and weld on some plating to the cross brace above the motor. You might get another litre or so.
You may need to re-locate a couple of items but it may be do-able?
Does your XR have an oil cooler?
Maybe the MILITEC product may interest you?
Good luck anyway, I'd be interested to hear how you get on.
Dave.
Reply With Quote
  #3
Old 17 May 2009
Registered Users
Veteran HUBBer

Join Date: Apr 2006
Location: Tallinn, Estonia
Posts: 1,049
There already is an oil cooler on the bike. Its semi-circular and resides under the headlight assembly.

I think it is standard, but no way to tell.

As for increasing capacity, I had though a secondary reservoir between the motorsump and the frame reservoir.

However, going on with the frame weldding idea, welding a section along the front face of the frame (ie directly behind the front wheel), provided the front wheel does no catch itunder fork compression could add a goo litre without having to butcher the tank and loose fuel capacity...
__________________
Adventure: it's an experience, not a style!
(so ride what you like, but ride it somewhere new!)
Reply With Quote
  #4
Old 17 May 2009
djorob's Avatar
Seek and thou shalt find.
Veteran HUBBer

Join Date: Feb 2006
Location: Midlands/UK
Posts: 231
Yeah, could work.
A square secton tube could give you a few more cc's.
Been a while since I had an XR400 but the 600 has a lovely space between the main cross tube (oil res) and the brace above the motor, you'd get away without modding the fuel tank at all.
The gap by the upper oil pipe union could be plated off, the union re positioned and the pipes altered, If this is similar to your XR400 frame that is.
The only thing I can think of that you might have to watch is when the motor is off, the oil drains to the motors sump and gets pumped up into the frame when it starts. A larger amount of oil sitting in the sump (an extra litre or so) when the bike has stood may cause a hydraulic lock with the downstroke of the piston on initial start up! I can't see it being a prob but just a thought! Depends how much volume is in the crankcase.
As mentioned, I'm interested in how you get on with this, all the best bud.
Dave.
Attached Thumbnails

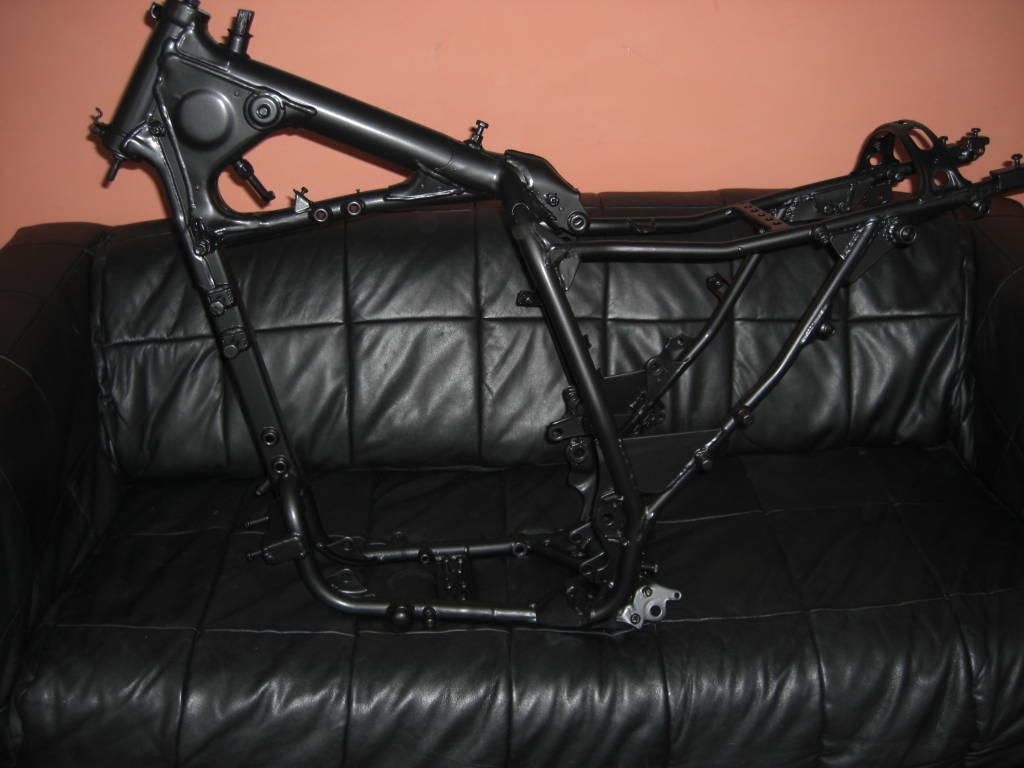

Increasing the oil capacity on a dry sump bike-cimg1717.jpg

Reply With Quote
  #5
Old 17 May 2009
Registered Users
Veteran HUBBer

Join Date: Oct 2003
Location: Danmark
Posts: 346
Try and search around, I've seen an engineguard with a built in oiltank. Maybe some of the guys using a XR 400 for Paris-Dakar have done something like that.
__________________
Poul
May you enjoy peace and good health !
Reply With Quote
  #6
Old 21 May 2009
Registered Users
Veteran HUBBer

Join Date: Jul 2006
Location: the Netherlands
Posts: 138
Quote:
Originally Posted by Warthog View Post
There already is an oil cooler on the bike. Its semi-circular and resides under the headlight assembly.

I think it is standard, but no way to tell.

As for increasing capacity, I had though a secondary reservoir between the motorsump and the frame reservoir.

However, going on with the frame weldding idea, welding a section along the front face of the frame (ie directly behind the front wheel), provided the front wheel does no catch it under fork compression could add a goo litre without having to butcher the tank and loose fuel capacity...
that oil cooler is standard.
i've been thinking about the frame welding option a long time. when it is time to rebuild the engine.. the frame will be altered as well
btw i got a nx not a xr but it works the same
__________________
I’m not afraid to go fast, it’s the crash and burn part that sucks.
Reply With Quote
  #7
Old 21 May 2009
Registered Users
Veteran HUBBer

Join Date: Oct 2003
Location: Danmark
Posts: 346
Don't weld on the frame. You might weaken it and nobody will buy a bike with welding on the frame.
You have to build a tank anyway, so why not make it for bolting on the frame or as suggested make an engine protector with a built in tank. Both could be unboltet before a sale.




__________________
Poul
May you enjoy peace and good health !
Last edited by pbekkerh; 21 May 2009 at 19:15.
