bolt found under KLE, anyone knows this one?

Hi,
we recently found a black bolt under our KLE 500 (year 2006), but cannot find it somewhere missing. Has anyone an idea, whether it belongs to the bike at all?

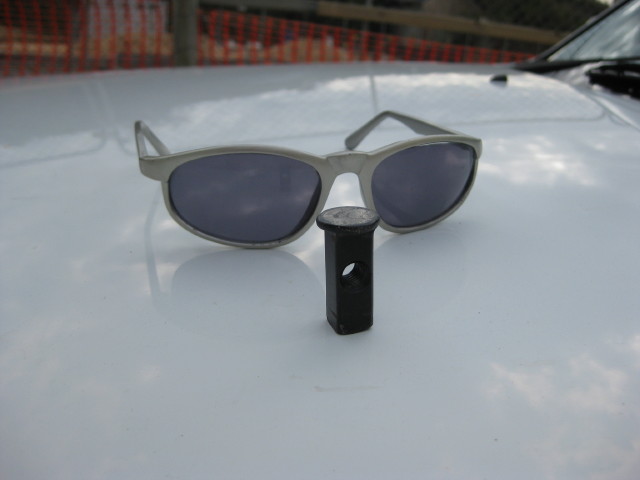

The bolt is 34mm long, and has a diameter of 14mm, is square except for the thin head with a thread through the middle.
Some help would be appreciated, thanks
cheers Michael
Attached Thumbnails
bolt found under KLE, anyone knows this one?-jpg-1.jpg

Reply With Quote
  #2
Old 21 May 2010
gixxer.rob's Avatar
Registered Users
Veteran HUBBer

Join Date: Mar 2008
Location: Back in Melb
Posts: 287
side stand kill switch ?

something to do with the side stand kill switch maybe ?

Will check to see if I have a parts diagram for your bike when I get home..if nobody else has answered by then..
Reply With Quote
  #3
Old 21 May 2010
Registered Users
New on the HUBB

Join Date: Nov 2009
Location: Western Australia
Posts: 14
Good day gixxer.rod,
will have a look tonight or tomorrow and let you know. Thanks very much,
cheers Michael
Reply With Quote
  #4
Old 21 May 2010
gixxer.rob's Avatar
Registered Users
Veteran HUBBer

Join Date: Mar 2008
Location: Back in Melb
Posts: 287
I can't download the fiche (over my limit) but they might help identify the bolt...

RepairManualClub Download Area > Kawasaki KLE 500 Microfiches German

Cheers
Reply With Quote
  #5
Old 21 May 2010
Registered Users
Veteran HUBBer

Join Date: Aug 2008
Location: Ireland
Posts: 106
That is a mother of a bolt. I wouldn't feel too comfortable riding a bike that was missing one of those.

I have a parts manual with exploded views of all the parts of KLE. If you want I can email it to you. You might be able to identify your bolt from the illustrations. PM me an email address if you want it.
Reply With Quote
  #6
Old 21 May 2010
Registered Users
Veteran HUBBer

Join Date: Sep 2008
Location: England
Posts: 152
try looking here
OEM Motorparts - Kawasaki - KLE 500 - 2006
Personally i don't think its even from the bike
Reply With Quote
  #7
Old 21 May 2010
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Never seen anything like that on a bike before.

If it IS off the KLR, it's going to be from the suspension, swingarm or frame !

If the subrame isnt lose and the suspension if all working fine etc, then it's probably unrelated. It should be quite easy to spot where that's missing from though..

I looks totally foriegn to an engine and the rough casting and paint make it look unrelated too.

Please triple check though !!
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #8
Old 22 May 2010
Registered Users
New on the HUBB

Join Date: Nov 2009
Location: Western Australia
Posts: 14
Hi guys,
thanks for all your input.
Its not missing at the sidestand/switch.
The OEM partlist is not really helping me, because the parts drawn are too rough for allowing proper comparison.
All the suspension works fine, and frame connections/bolts seem to be in place. Maybe someone accidently lost it there, who knows.
Gixxer.rod, I leave the download of the repair manual to my son, and check then.
Touring Ted, our bike is a KLE, not a KLR.
All the best to you, thanks again for your input, have a great weekend and always a safe ride,
cheers Michael
Reply With Quote
  #9
Old 22 May 2010
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by m2catter View Post
Touring Ted, our bike is a KLE, not a KLR.

cheers Michael
Same applies !!
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #10
Old 7 Sep 2010
Registered Users
New on the HUBB

Join Date: Aug 2010
Location: southport/liverpool uk
Posts: 10
hi guys ive just built a kle from bare frame and i have deffinatly not got one of them on my bike either or i havent used one of them on it for anything.
Reply With Quote
  #11
Old 8 Sep 2010
Registered Users
New on the HUBB

Join Date: Jun 2010
Location: Bristol UK
Posts: 10
The last time i seen something like that was on one of my kids metal beds that bolted the sides together.Are you sure this come off ur bike????
Reply With Quote
