  #121
Old 27 May 2012
Registered Users
HUBB regular

Join Date: Jan 2009
Location: kent
Posts: 74
Quote:
Originally Posted by SPYE View Post
I would like to do the same on my bikes carbs. Do you have the Kawasaki part numbers for the 112 jets and N96J needles? I can't seem to find them anywhere. My local dealer works in Part Numbers only. Dont forget to check the vacuum slide springs as they might be a different stifness to the newer one.

I have a genuine parts manual if you are interested. It covers 06 ~ 07 KLE 500. Can email it. Quite handy.

Forgot to mention that I placed two 3mm spacer washers under each needle. It definately made a differance. There's a bit more torque, but the fuel economy has gone down a bit. (Jets still standard 95;92.)
Hi. is there any chance you could email me the parts catalogue too? am just rebuilding a kle and will need a few bit, have also just cut the back box off my working bike and would like to look into putting some larger jets in too.
my email is nathanstuff@hotmail.co.uk.
this would be very much appreciated.
regards
Nathan
Reply With Quote
  #122
Old 26 Sep 2014
Registered Users
New on the HUBB

Join Date: Sep 2014
Posts: 3
Hey just wanting to report on in my KLE tuning experiences so far, I have a 1998 KLE 400, which to the best of my knowledge is 100% the same as the 500, with the exception of the cylinder bore,

To start with i ordered 112 main jets and the bigger snorkel, The results were okay, but to be honest, I felt a little dissapointed, in search of shims I could only find m4 washers so put one each under the N96L needles, I must say this made quiet the difference, seeing as it was my day off and I was bored I said "Lets do rimfire now", So I did, the bike felt stumbly and whatnot so I swapped out the needles for GPZ400 needles (N31M), this made a lovely difference and the bike was back running strong again, but I did not get to run it for a long journey, The bike has standard headers but with an aftermarket end can.

Which has me wondering what should the next step be? Will a DNA filter be worth buying at this stage? I have also not touched the fuel air screws since doing this but I believe they were around 2.5 turns out, can anyone recommend a change in that?

I can currently do 0-100 in 7 seconds which is not bad at all for a 400. I have not seen my fuel consumption though.

Attached Thumbnails
KLE 500 Dyno-tuning/carb settings info needed.-10590699_10152374434063613_2488883022477023598_n.jpg

Reply With Quote
  #123
Old 3 Oct 2014
Registered Users
New on the HUBB

Join Date: Mar 2013
Posts: 17
Hi guys, I could do with a little help! I have just had a go at setting my carbs up and I have run into a bit of a problem!
I have a DNA filter and a GPR exhaust fitted, I got a carb tuning kit from sigma6 in the states and I have fitted 110 main jets and 38 pilot jets and added too small washers under the needle, I also turned the fuel screw back then out 1.5 turns
The problem is the bike just doesn't have any go! It will hardly pull over 50mph on a flat road but when you try and pull away the bike just stumbles and feels like it will stall.
I'm thinking it's a lack of petrol, the bike sounds fine, starts ok and idles well.
Any ideas?
Reply With Quote
  #124
Old 11 Feb 2015
Registered Users
New on the HUBB

Join Date: Feb 2015
Posts: 2
Kicking this old thread!

Have been reading this whole thread but with all the minor changes everybody has been making throughout time, I kinda lost track

My KLE500 is a 2006 model, so the one with the small snorkel. The headers are the stock ones (so they are the uneaven ones I assume) but I have fitted an aftermarket slip-on muffler which is pretty sporty.

I'm not looking to get a DNA filter because they're hard to come by where I live and when they áre available, very expensive.

But I am interested in getting the richer needles, bigger snorkel and bigger main jets.


If I am not mistaken, I would need the following parts for the best results:

Big snorkel
N96J needles (2x)
Main jet #112 (2x) or #115 when I do the rimfire mod as well

final question: why do I need 2 identical main jets when the stock ones are not equal thanks to the uneven headers?
Reply With Quote
  #125
Old 23 Feb 2015
Registered Users
New on the HUBB

Join Date: Feb 2015
Posts: 2
Quote:
Originally Posted by KLE-Kevin View Post
Kicking this old thread!

Have been reading this whole thread but with all the minor changes everybody has been making throughout time, I kinda lost track

My KLE500 is a 2006 model, so the one with the small snorkel. The headers are the stock ones (so they are the uneaven ones I assume) but I have fitted an aftermarket slip-on muffler which is pretty sporty.

I'm not looking to get a DNA filter because they're hard to come by where I live and when they áre available, very expensive.

But I am interested in getting the richer needles, bigger snorkel and bigger main jets.


If I am not mistaken, I would need the following parts for the best results:

Big snorkel
N96J needles (2x)
Main jet #112 (2x) or #115 when I do the rimfire mod as well

final question: why do I need 2 identical main jets when the stock ones are not equal thanks to the uneven headers?
looks like this thread is non revivable?
Reply With Quote
  #126
Old 30 Nov 2015
Registered Users
New on the HUBB

Join Date: Nov 2015
Posts: 2
for those, who still have this great bike with "bad" carb settings, and want to make them "right", like i
Changed:
bigger snorkel
112 main jets (same in carbs)
N96J needle jets.

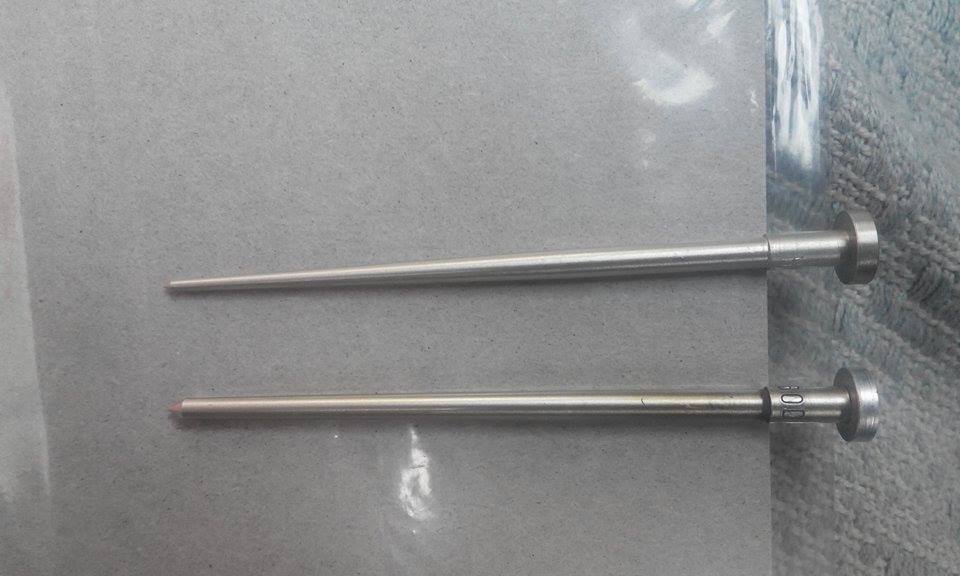

Unfortunately it's winter, so i cant test it. Will wait for higher temperature. In the meantime here is comparison of N60D and N96J needles.
Attached Thumbnails
KLE 500 Dyno-tuning/carb settings info needed.-12336137_920362801390138_1097992581_n.jpg

Reply With Quote
  #127
Old 6 Feb 2016
Registered Users
New on the HUBB

Join Date: Feb 2016
Posts: 1
Hi all!

New to this forum!

Have read this thread with big interest and are right now doing the carb mod with new needles and main jets.

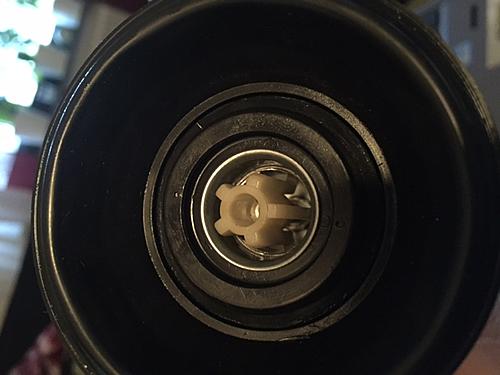

My problem is getting the old needles out. As shown in the picture there are a white plastic part inside the throttel which cant come out.

The plastinc thing has five barbs that hooks inside the throttel, and stopping the needle to come out.

I there any easy fix?
Attached Thumbnails
KLE 500 Dyno-tuning/carb settings info needed.-img_0175.jpg

Reply With Quote
  #128
Old 27 Feb 2016
Registered Users
New on the HUBB

Join Date: Nov 2015
Posts: 2
If you still didn't solved this - you just pul it out. Try with tweezers
Reply With Quote
