KLE 500 rear wheel gap between cush drive and sprocket

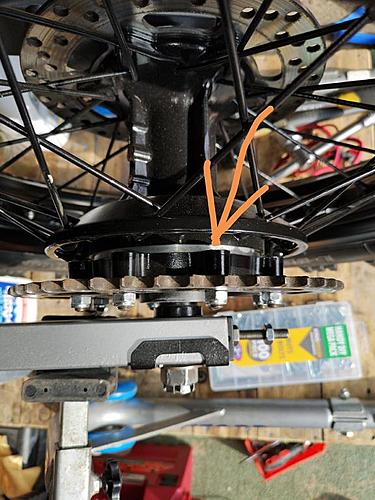

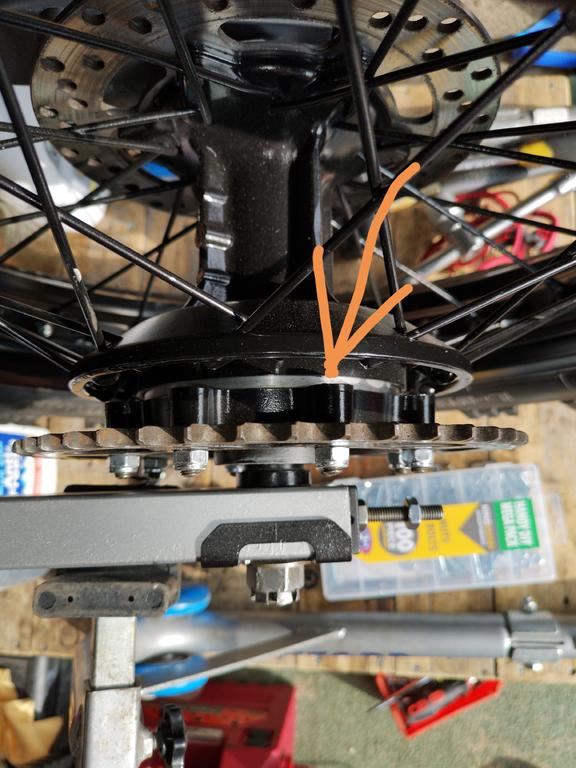

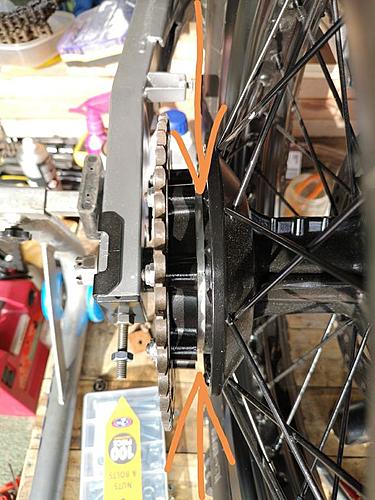

I'm really hoping someone can confirm something fairly straightforward for me, I am in the process of rebuilding my 93 KLE and it's been years since I removed the rear wheel so can't remember whether this is normal or not. The sprocket carrier won't sit flush against the hub, the cush drive appears to be preventing it doing so. The spindle is done up pretty tight and according to the schematic I'm not missing any spacers etc....
Can some tell me if this looks normal?
Thanks Dan
|
