  #46
Old 7 Jan 2013
Registered Users
HUBB regular

Join Date: Mar 2007
Posts: 82
Quote:
Originally Posted by uk_vette View Post
the 90/95 and the 120/125, both Land Cruisers certainly have locking center diffs.
I should have been more precise there. I was referring to J7 light duties.

Quote:
Originally Posted by uk_vette View Post

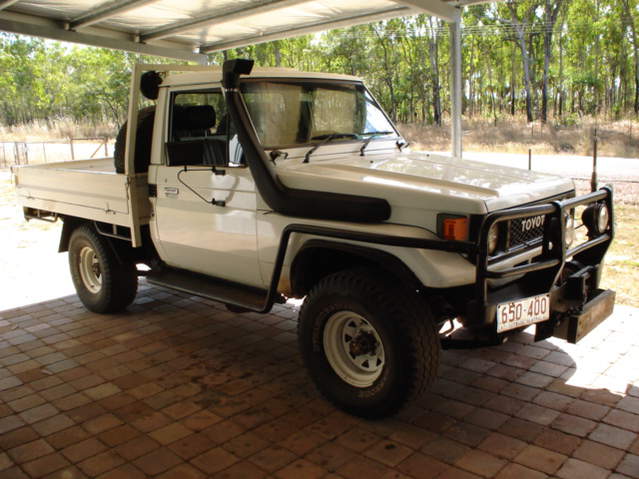

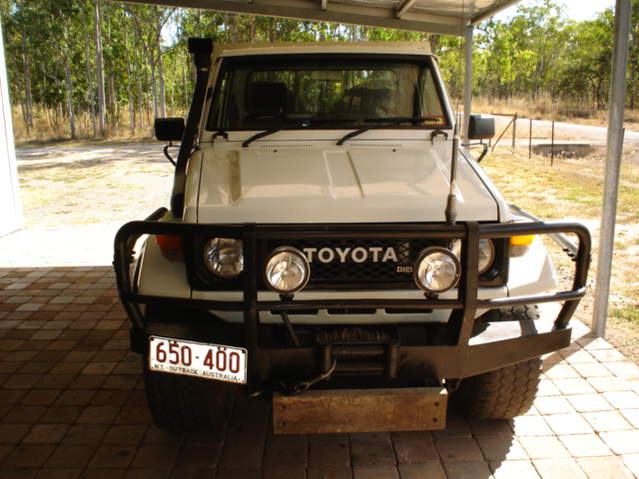

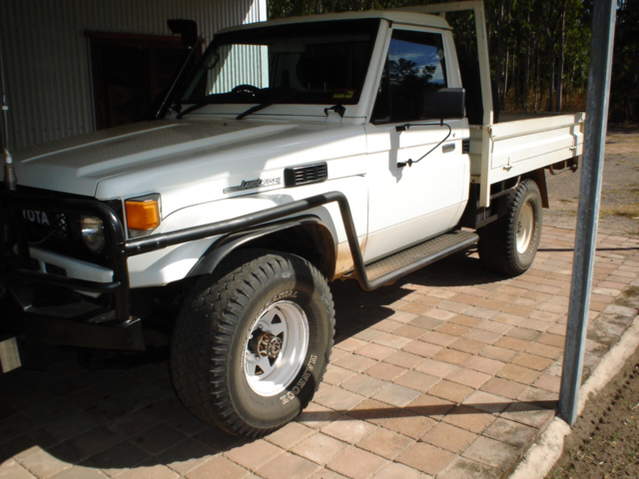

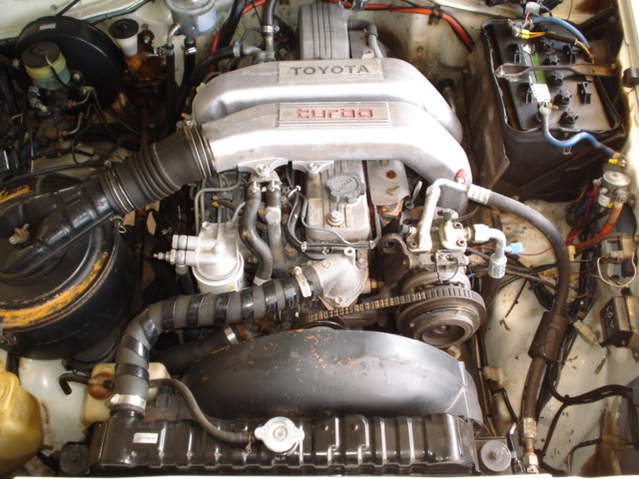

My 1991 70 series.
What you're showing is a J7 light duty, not a heavy duty.

Quote:
Originally Posted by uk_vette View Post
There are no 105 series available in Europe, so pointless directing the OP in that direction.
But still I know a few of them here in Germany and I've seen some of them in northern Africa.

Quote:
Originally Posted by uk_vette View Post
Perhaps it would be better if you completed your profile, so members can see where you are?
Then when you tell people about various Land Cruisers, they can at least recognise that you are talking form, what I guess, is an Australia point of perception.
This mystery could have been solved by following the links in my signature.

Pointless this discussion has become. After all this not a pissing contest, right? It has wandered too far from the original question, so I'll leave it at that.

Hans
Reply With Quote
  #47
Old 7 Jan 2013
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Quote:
Originally Posted by Mandarax View Post
Pointless this discussion has become. After all this not a pissing contest, right? It has wandered too far from the original question, so I'll leave it at that.
Too true, as has already been pointed out the models, specs and availability of the various Land Cruisers vary considerably around the world.

On the subject of diffs, I have yet to come across a Land Cruiser that doesn't have a Centre Diff Lock, and that is based on working on 60s, 70s, 75s, 78s, 79s, 80s, 90s, 95s, 100s, 105s and 120s in the UK.

Most will either have a rear diff lock or an LSD in the rear axle, I have never come across both in the same axle.

Most 80/105s (except some basic spec and Aus/NZ spec) will also have a front diff locks and most non UK/European/North America models will have part time 4wd with locking front hubs.

THe 90s, 95s, 100s and 120s with the independent front suspension will get you to 98% of the off road routes that a fully articulating 70, 80 or 105 will take you - for overlanding purposes you generally wouldn't want to go to the extra 2% anyway.

One thing with the independent front suspension, whilst articulating trucks can step over things, the independent front suspension doesn't give you that advantage so it is usually worth considering underbody protection for under the engine.

As a guide for Ovelanders from the UK we suggest that if on a budget start to look at the 90/95 Colorados as a starting point, they are perfectly capable of taking you around the world.

If you have deeper pockets or there are more than a couple of you travelling then I would suggest going for a larger 80/100/105 - they are bigger in side making it more comfortable and providing more storage space.


At the other end the Hilux/4Runner/Surfs are gaining popularity and are also extremely capable. In reality they are probably better supported globally than any other model and would be great for bried forays into North Africa however I wouldn't necessarily get one for a round the world trip....

The 80s, 100s and 105s are bigger and less fuel efficient, but due to their size and weight they do chew up the miles off road in a lot more comfort. I regularly test Land Cruisers down a track that is a reasonable example of the sort of road you will find out in Africa or Asia and the larger models always feel a lot more planted and reassuring where as the 90s and 120s are more skittish and suffer from more scuttle shake.

Don't get me wrong I would happily pick any of the models over a LR Defender - living in 1950s discomfort doesn't appeal to me :-)
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #48
Old 7 Jan 2013
Registered Users
Veteran HUBBer

Join Date: Mar 2007
Location: UK
Posts: 4,343
Just as a completely personal view, this thread is certainly not pointless for me; on the contrary, it contains information that serves to inform me about the models of Landcruisers that are available in various parts of the world - it is that simple.
It's an international forum - that's been said elsewhere recently in discussion about motorcycles - so it should be borne in mind when reading any individual posting.
I suppose an alternative to this current thread could be:-
1. Thread for RHD LCs sold in the UK
2. Thread for "grey import" LCs brought into the UK
3. Thread for LCs sold in continental Europe
4. Thread for LCs imported into Europe
5. Thread for LCs sold in Australia

etc etc

Sure, along the way there are some opinions expressed also, but that's not a problem to me and hopefully not to the OP (but I was concerned in my last post that he hasn't got information that he might want about, for instance, the Hilux).
__________________
Dave
Reply With Quote
  #49
Old 8 Jan 2013
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Quote:
Originally Posted by uk_vette View Post
The rear diffs can be LSD, or LSD "AND" locking rear diff.
Unfortunately this is a bit of an urban myth from the Land Cruiser forums.

Most Land Cruisers will have centre diff locks, either electrically or mechanically engaged.

They will then have either an open rear diff, a Limited Slip Diff or fully locking rear diff - you never get an LSD and diff lock.
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #50
Old 8 Jan 2013
Registered Users
Veteran HUBBer

Join Date: Mar 2007
Location: UK
Posts: 4,343
Quote:
Originally Posted by JulianVoelcker View Post
Unfortunately this is a bit of an urban myth from the Land Cruiser forums.

Most Land Cruisers will have centre diff locks, either electrically or mechanically engaged.

They will then have either an open rear diff, a Limited Slip Diff or fully locking rear diff - you never get an LSD and diff lock.
Thanks for that!
I couldn't understand why any car would be fitted with 2 technologies on the same part of the vehicle that serve such similar purpose.

So, as far as the UK is concerned and as I understand it, there are LSDs fitted to the rear differentials of "grey" imported models of the 90 series (which all UK car dealers seem to refer to as "Prados") and locking diffs fitted to those which are genuine UK models (the "Colorados").
__________________
Dave
Reply With Quote
  #51
Old 8 Jan 2013
Registered Users
Veteran HUBBer

Join Date: Aug 2008
Location: Dorset, UK
Posts: 339
Quote:
Originally Posted by Walkabout View Post
So, as far as the UK is concerned and as I understand it, there are LSDs fitted to the rear differentials of "grey" imported models of the 90 series (which all UK car dealers seem to refer to as "Prados") and locking diffs fitted to those which are genuine UK models (the "Colorados").
Some people repeat with great authority information they have just read on the net from others with no first hand experiences and so the misinformation goes on, from my experiences of meeting real people on the road, you cannot say for sure what options will be fitted to a Japanese imported Toyota, the great myth of imported 80 series not having rear and front diff locks was blown away when I travelled with a guy for a few weeks with a Jap import with the Toyota diff locks fitted as imported.

Mine is a UK model and does have a Toyota rear diff lock.
Reply With Quote
  #52
Old 8 Jan 2013
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Quote:
Originally Posted by twenty4seven View Post
Some people repeat with great authority information they have just read on the net from others with no first hand experiences and so the misinformation goes on
That's part of the reason I've backed away from the Land Cruiser forums.

Quote:
Originally Posted by twenty4seven View Post
you cannot say for sure what options will be fitted to a Japanese imported Toyota, the great myth of imported 80 series not having rear and front diff locks was blown away when I travelled with a guy for a few weeks with a Jap import with the Toyota diff locks fitted as imported.
True, there are no set rules.

Also to complicate things further when looking to buy a Land Cruiser from a second hand car dealer or even a private individual, most won't know the difference between a Prado/Colorado/Amazon, etc and also in most cases none of them would know if there were diff locks or not so you usually have to ask if there is a rotary switch beside the steering column.
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
  #53
Old 9 Jan 2013
Registered Users
HUBB regular

Join Date: Mar 2007
Posts: 82
Quote:
Originally Posted by Walkabout View Post
Just as a completely personal view, this thread is certainly not pointless for me; on the contrary, it contains information that serves to inform me about the models of Landcruisers that are available in various parts of the world - it is that simple.
I just remembered that the owner of the german site Buschtaxi made a poster of most of the variations of the Landcruisers. Available as JPG (ca. 1MB) here: http://www.buschtaxi.de/fileadmin/da...lc_history.jpg.

Hans
Reply With Quote
  #54
Old 9 Jan 2013
Registered Users
HUBB regular

Join Date: Dec 2009
Posts: 42
Well that turned into a beast of a thread. :P

In the end I couldnt find a Toyota suitable for me sadly.

I instead have bought a 2003 Nissan Terrano 2.7Diesel. Get it on friday
Reply With Quote
  #55
Old 9 Jan 2013
Registered Users
Veteran HUBBer

Join Date: Mar 2007
Location: UK
Posts: 4,343
Quote:
Originally Posted by JulianVoelcker View Post
That's part of the reason I've backed away from the Land Cruiser forums.

Well, I am grateful that you have stuck it out in this forum.

Quote:
Originally Posted by Mandarax View Post
I just remembered that the owner of the german site Buschtaxi made a poster of most of the variations of the Landcruisers. Available as JPG (ca. 1MB) here: http://www.buschtaxi.de/fileadmin/da...lc_history.jpg.

Hans
And I thought motorcycles have a wide range of model numbers/designations and optional extras.
I can imagine that poster on the garage wall of any LC enthusiast.

Quote:
Originally Posted by Cysne View Post
Well that turned into a beast of a thread. :P

In the end I couldnt find a Toyota suitable for me sadly.

I instead have bought a 2003 Nissan Terrano 2.7Diesel. Get it on friday
Damn, after all that, buying a non-Toyota!!
The Surf experience turned you off maybe?

When you have some experience with it, you could contribute to this thread which turned into one that is more enthusiastic for the Terrano than the OP.
http://www.horizonsunlimited.com/hub...-x-trail-61322
__________________
Dave
Reply With Quote
  #56
Old 6 Feb 2013
Registered Users
Veteran HUBBer

Join Date: Mar 2007
Location: UK
Posts: 4,343
1996 Prado 1KZ-TE 3.0L TD TX

So, to continue the story, I've now invested my hard-earned in one of these:-
http://english.auto.vl.ru/catalog/to...o/1996_5/8905/

As far as I can tell it is that model; the English language handbook that came with this 17 year old vehicle (Prado 1996-2002, various engines) talks about things that are not on this car and the specification given in that link above is not totally the same.
I guess there were a few variations.

It's running on Bridgestone tyres fitted to alloy wheels right now, and the tyres have very mixed reviews in this link:-
Bridgestone Dueler HP Sport | the Bridgestone Dueler HP Sport reviewed and rated | Page2 | the online tyre guide

Very early days, but so far.

Ooops, it's a LWB, so that's the 95 series going by everything above (Prado to the sales people still).
__________________
Dave

Last edited by Walkabout; 6 Feb 2013 at 12:18. Reason: Ooops added
Reply With Quote
  #57
Old 6 Feb 2013
Registered Users
Veteran HUBBer

Join Date: Oct 2007
Location: Warrington UK
Posts: 703
Quote:
Originally Posted by Walkabout View Post
So, to continue the story, I've now invested my hard-earned in one of these:-
http://english.auto.vl.ru/catalog/to...o/1996_5/8905/

As far as I can tell it is that model; the English language handbook that came with this 17 year old vehicle (Prado 1996-2002, various engines) talks about things that are not on this car and the specification given in that link above is not totally the same.
I guess there were a few variations.

It's running on Bridgestone tyres fitted to alloy wheels right now, and the tyres have very mixed reviews in this link:-
Bridgestone Dueler HP Sport | the Bridgestone Dueler HP Sport reviewed and rated | Page2 | the online tyre guide

Very early days, but so far.

Ooops, it's a LWB, so that's the 95 series going by everything above (Prado to the sales people still).
.
Hi Dave,

Read every thing and all on this forum here.

Land Cruiser Club

Roll down to see the "90 series" which covers yours

Looking forward to seeing you join.

Vette
Reply With Quote
  #58
Old 6 Feb 2013
Registered Users
Veteran HUBBer

Join Date: Mar 2007
Location: UK
Posts: 4,343
Quote:
Originally Posted by JulianVoelcker View Post
Unfortunately this is a bit of an urban myth from the Land Cruiser forums.

Most Land Cruisers will have centre diff locks, either electrically or mechanically engaged.

They will then have either an open rear diff, a Limited Slip Diff or fully locking rear diff - you never get an LSD and diff lock.
As for my newly purchased 95, it certainly does not have a fully locking rear differential, and I hope it is not an open rear diff on such a quality vehicle so this means it must be a LSD on the back (I am assuming that there is no way of telling from a cursory glance underneath, but I do know that there is no locking diff actuator down there and there is no such control on the dash either).

Mais oui, it does have the central locking diff but I have yet to try it out.

And, I'll take it as a given that the front diff is "open" in its' design.
__________________
Dave
Reply With Quote
  #59
Old 6 Feb 2013
Registered Users
Veteran HUBBer

Join Date: Aug 2008
Location: Dorset, UK
Posts: 339
Well done on your purchase Dave, all you need to buy is a GPS now

I've owned mine for six or so years and have done around 50,000 miles on and off road in it.
Reply With Quote
  #60
Old 7 Feb 2013
Contributing Member
Veteran HUBBer

Join Date: Jun 2005
Location: Ledbury, Herefordshire, UK
Posts: 324
Congratulations Dave on the purchase. The Colorados/Prados are great little trucks.

As you say the chances are you have a LSD at the back - if you can jack up one rear wheel with the transfer case in Neutral, if there is an LSD you should struggle to turn the lift wheel by hand (actually I doubt you will be able to turn it).

If it turns but a little stiffly then it will be an open diff.

If you have the LSD it is essential that you use proper LSD oil in it, they don't last long with straight diff oil.

Other things to look out for...
1. The engines are very prone to overheating. Check the rad, hoses and water pump for leaks or other problems and also check the coolant - if it isn't nice clear red colour, use a chemical flush, following instructions to a "T" and then thoroughly flush before filling up with Toyota Red Coolant.

2. ON standard suspension they are prone to rusting around the rear axle and around the top of the fuel tank - if these areas are relatively ok, steam clean and treat with rust treatment, otherwise if rusty get it checked by a professional mechanic - we have come across rusty diffs leaking and suspension mounting brackets rusting - particularly the top link ones because the drain holes get blocked and so they fill up with salty road water - we always enlarge the drain holes to avoid the problem.

3. You can sometimes get starting/running problems - this is usually down to the fuel pipes on the top of the fuel tank (under the boot) rusting and leaking - the tell tale is the top of the tank being very damp. The only solution is to drop the tank and replace the fuel pick-up in the tank and then rust treat.

4. Depending on where you are going it is worth getting a front bash plate.

5. If an auto, make sure it has a good supply of fresh oil - this is often left out of services.

That covers most things, but if you have any questions, don't hesitate to post here.
__________________
Cheers,

Julian Voelcker
Overland Cruisers - Specialising in Land Cruiser preparation and servicing.
Reply With Quote
Reply

Tags
hilux, landcruiser 95, prado, rav 4, surf


Currently Active Users Viewing This Thread: 1 (0 Registered Users and/or Members and 1 guests)


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Land Cruiser 80 series vs Toyota Hilux DC Cape Town to UK randalls 4 wheel Overland Travel 7 3 Jan 2023 00:04
Landcruiser vs Hilux Surf Dodders91 Light Overland Vehicle Tech 20 10 Sep 2013 03:23
Fully Kitted 92 Toyota Hilux for sale (SA reg) in Cape Town - ZAR95,000 timoth Overland Vehicles and Equipment for Sale / Wanted 6 25 May 2012 18:20
Land Cruiser 80 series vs Toyota Hilux DC Cape Town to UK randalls Light Overland Vehicle Tech 3 4 May 2012 22:28
Toyota Hilux Double-Cab - ZA registered - 1997 Bundubasher Overland Vehicles and Equipment for Sale / Wanted 0 29 Oct 2011 12:42




Announcements

Thinking about traveling? Not sure about the whole thing? Watch the HU Achievable Dream Video Trailers and then get ALL the information you need to get inspired and learn how to travel anywhere in the world!

Have YOU ever wondered who has ridden around the world? We did too - and now here's the list of Circumnavigators!
Check it out now
, and add your information if we didn't find you.

Next HU Eventscalendar

25 years of HU Events
Be sure to join us for this huge milestone!

ALL Dates subject to change.

2025 Confirmed Events:

Virginia: April 24-27 2025
Queensland is back! May 2-4 2025
Germany Summer: May 29-June 1 2025
CanWest: July 10-13 2025
Switzerland: Date TBC
Ecuador: Date TBC
Romania: Date TBC
Austria: Sept. 11-14
California: September 18-21
France: September 19-21 2025
Germany Autumn: Oct 30-Nov 2 2025

Add yourself to the Updates List for each event!

Questions about an event? Ask here

See all event details


World's most listened to Adventure Motorbike Show!
Check the RAW segments; Grant, your HU host is on every month!
Episodes below to listen to while you, err, pretend to do something or other...

Adventurous Bikers – We've got all your Hygiene & Protection needs SORTED! Powdered Hair & Body Wash, Moisturising Cream Insect Repellent, and Moisturising Cream Sunscreen SPF50. ESSENTIAL | CONVENIENT | FUNCTIONAL.

2020 Edition of Chris Scott's Adventure Motorcycling Handbook.

2020 Edition of Chris Scott's Adventure Motorcycling Handbook.

"Ultimate global guide for red-blooded bikers planning overseas exploration. Covers choice & preparation of best bike, shipping overseas, baggage design, riding techniques, travel health, visas, documentation, safety and useful addresses." Recommended. (Grant)



Ripcord Rescue Travel Insurance.

Ripcord Rescue Travel Insurance™ combines into a single integrated program the best evacuation and rescue with the premier travel insurance coverages designed for adventurers.

Led by special operations veterans, Stanford Medicine affiliated physicians, paramedics and other travel experts, Ripcord is perfect for adventure seekers, climbers, skiers, sports enthusiasts, hunters, international travelers, humanitarian efforts, expeditions and more.

Ripcord travel protection is now available for ALL nationalities, and travel is covered on motorcycles of all sizes!




What others say about HU...

"This site is the BIBLE for international bike travelers." Greg, Australia

"Thank you! The web site, The travels, The insight, The inspiration, Everything, just thanks." Colin, UK

"My friend and I are planning a trip from Singapore to England... We found (the HU) site invaluable as an aid to planning and have based a lot of our purchases (bikes, riding gear, etc.) on what we have learned from this site." Phil, Australia

"I for one always had an adventurous spirit, but you and Susan lit the fire for my trip and I'll be forever grateful for what you two do to inspire others to just do it." Brent, USA

"Your website is a mecca of valuable information and the (video) series is informative, entertaining, and inspiring!" Jennifer, Canada

"Your worldwide organisation and events are the Go To places to for all serious touring and aspiring touring bikers." Trevor, South Africa

"This is the answer to all my questions." Haydn, Australia

"Keep going the excellent work you are doing for Horizons Unlimited - I love it!" Thomas, Germany

Lots more comments here!



Five books by Graham Field!

Diaries of a compulsive traveller
by Graham Field
Book, eBook, Audiobook

"A compelling, honest, inspiring and entertaining writing style with a built-in feel-good factor" Get them NOW from the authors' website and Amazon.com, Amazon.ca, Amazon.co.uk.



Back Road Map Books and Backroad GPS Maps for all of Canada - a must have!

New to Horizons Unlimited?

New to motorcycle travelling? New to the HU site? Confused? Too many options? It's really very simple - just 4 easy steps!

Horizons Unlimited was founded in 1997 by Grant and Susan Johnson following their journey around the world on a BMW R80G/S.

Susan and Grant Johnson Read more about Grant & Susan's story

Membership - help keep us going!

Horizons Unlimited is not a big multi-national company, just two people who love motorcycle travel and have grown what started as a hobby in 1997 into a full time job (usually 8-10 hours per day and 7 days a week) and a labour of love. To keep it going and a roof over our heads, we run events all over the world with the help of volunteers; we sell inspirational and informative DVDs; we have a few selected advertisers; and we make a small amount from memberships.

You don't have to be a Member to come to an HU meeting, access the website, or ask questions on the HUBB. What you get for your membership contribution is our sincere gratitude, good karma and knowing that you're helping to keep the motorcycle travel dream alive. Contributing Members and Gold Members do get additional features on the HUBB. Here's a list of all the Member benefits on the HUBB.




All times are GMT +1. The time now is 09:51.
