  #16
Old 9 Aug 2015
Registered Users
Veteran HUBBer

Join Date: Apr 2005
Location: Oxford UK
Posts: 2,119
Quote:
Originally Posted by ta-rider View Post
For just a two weeks trip i would not bother. The oil will slowly come out but you can clean it. It will stop coming out once its half empty. Without oil the suspension will be more like a sofa but as the other side is still working i dont see a problem. If you feel any problems while riding you can refill the fork with normal engine oil. Been there done this.

Depends on the forks and how much oil is coming out but for a small amount sometimes you can put a bit of rag or sponge or something between the dust cover and the seal to soak up a bit of oil that would otherwise dribble down onto the tyre. Just check it / change it every fuel stop / night stop.

I have memories of topping up leaking forks with 20-50 engine oil and wishing I hadn't the first time I went over a pothole as the forks were essentially solid. I may well have put too much in but it got emptied out very quickly as riding around leaking forks was preferable to double vision and loose fillings.
Reply With Quote
  #17
Old 17 Aug 2015
Registered Users
Veteran HUBBer

Join Date: Oct 2008
Posts: 134

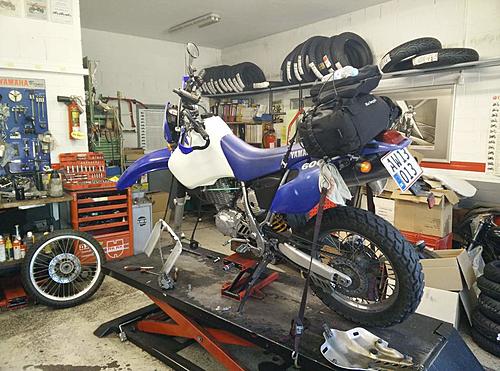

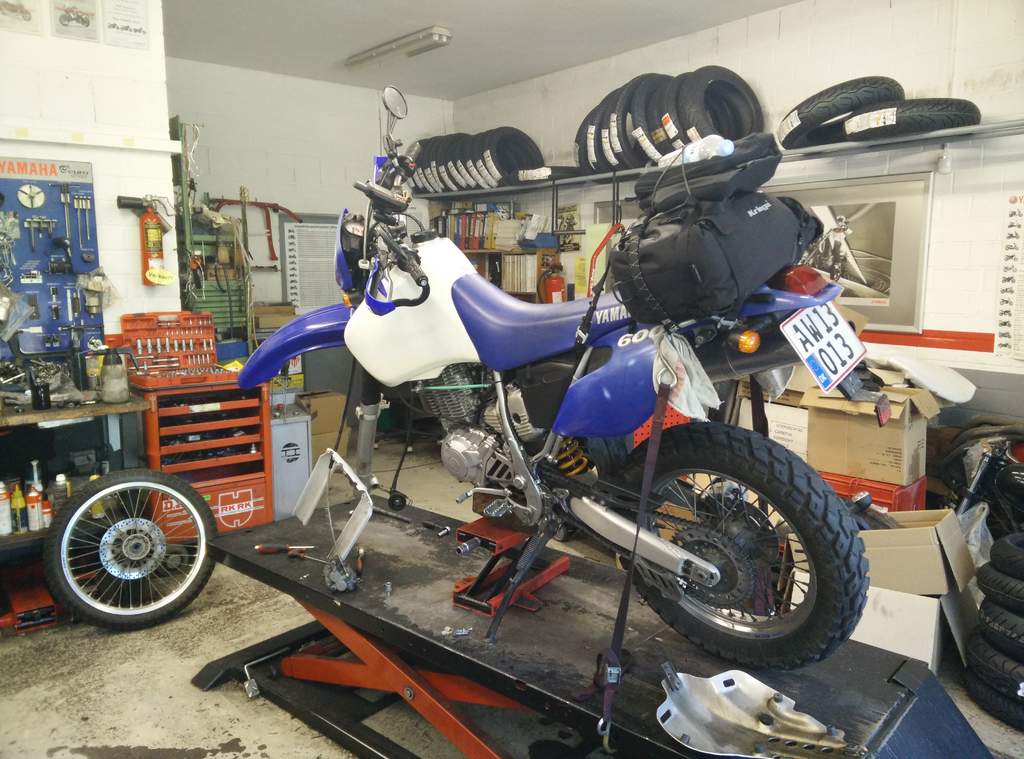

Well, I got the forks fixed! Thanks all for your feedback and tips.
Attached Thumbnails
Leaking fork seal - how serious?-uploadfromtaptalk1439795962250.jpg

Reply With Quote
  #18
Old 17 Aug 2015
Registered Users
Veteran HUBBer

Join Date: Aug 2012
Location: Australia
Posts: 1,131
Quote:
Originally Posted by backofbeyond View Post
I have memories of topping up leaking forks with 20-50 engine oil and wishing I hadn't the first time I went over a pothole as the forks were essentially solid. I may well have put too much in
It takes very little oil to make a big mess.

If you must use something for the fork oil ....
ATF - Automatic Transmission Fluid ... is about 5w .. and that should be ok for fork oil replacement untill you can get the good stuff. It is certainly better than 20-50w! To gauge how much to put in ... well the non leaking side will give you the height of oil in the leg that is required. A bit of wire to act as a dip stick and you have a good idea of where to have the oil in the leaking side.
Reply With Quote
  #19
Old 18 Aug 2015
Registered Users
HUBB regular

Join Date: Jan 2010
Location: Macedonia
Posts: 71
I think ATF is 10W. At least most of them. If your manual is stating 10W, you are good to go for ATF.
Reply With Quote
  #20
Old 18 Aug 2015
Registered Users
Veteran HUBBer

Join Date: Aug 2012
Location: Australia
Posts: 1,131
Quote:
Originally Posted by ccaa View Post
I think ATF is 10W. At least most of them. If your manual is stating 10W, you are good to go for ATF.
Still better than 20-50w engine oil...
Personally ...
I'd not be topping up the fork oil untill it runs towards dry or repairs are completed.
I'd put a rag around the fork leg to try and catch the oil before it makes a mess or gets on the brake. Remove the rag at the end of the days ride and squeeze out as much oil as you can.. bet it won't be much.
Reply With Quote
