Open exciter coil ? Help

Hello everyone.
I bought a 110cc xmoto pit bike four months ago. Now it won’t start.
I removed the spark plug, made the body of the spark plug contact the chassis and started it, but no spark was present. I tested the coil with a multimeter and seems ok. I was looking to replace the cdi and coil together. But I decided to check out the exciter stator and this seems to be open.
it turns out that the dc resistance measurement between ground and the black/red wire is OL or infinite.
but dc resistance between ground and the trigger pin is fine 130 ohms. I attached an image that shows the two points that show an open coil!
I am new to troubleshooting bike’s electrical systems.
It is clear that one side of this coil is attached to the green ground wire. The other side is the black/red exciter
Does anyone have this type of stator?
can someone help?
Name:  AED96CF1-36C9-4239-863D-03E5A0A8B9A3.jpeg
Views: 328
Size:  35.0 KB
Reply With Quote
  #2
Old 29 Dec 2020
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
How many and what colour wires are on the lead that comes from the stator ?
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #3
Old 29 Dec 2020
Registered Users
New on the HUBB

Join Date: Dec 2020
Posts: 4
Quote:
Originally Posted by *Touring Ted* View Post
How many and what colour wires are on the lead that comes from the stator ?
Five wires,
Two yellow
One green , this one has continuity to chassis and to one side of the wrapped coil.
One gren/white, this one has continuity to the pick up coil , reads 130 ohms
And one black and red, this one goes directly to one side of the wrapped coil ( shows open)
Thank you

Last edited by Ruviol; 29 Dec 2020 at 12:14. Reason: None
Reply With Quote
  #4
Old 30 Dec 2020
Registered Users
New on the HUBB

Join Date: Dec 2020
Posts: 4

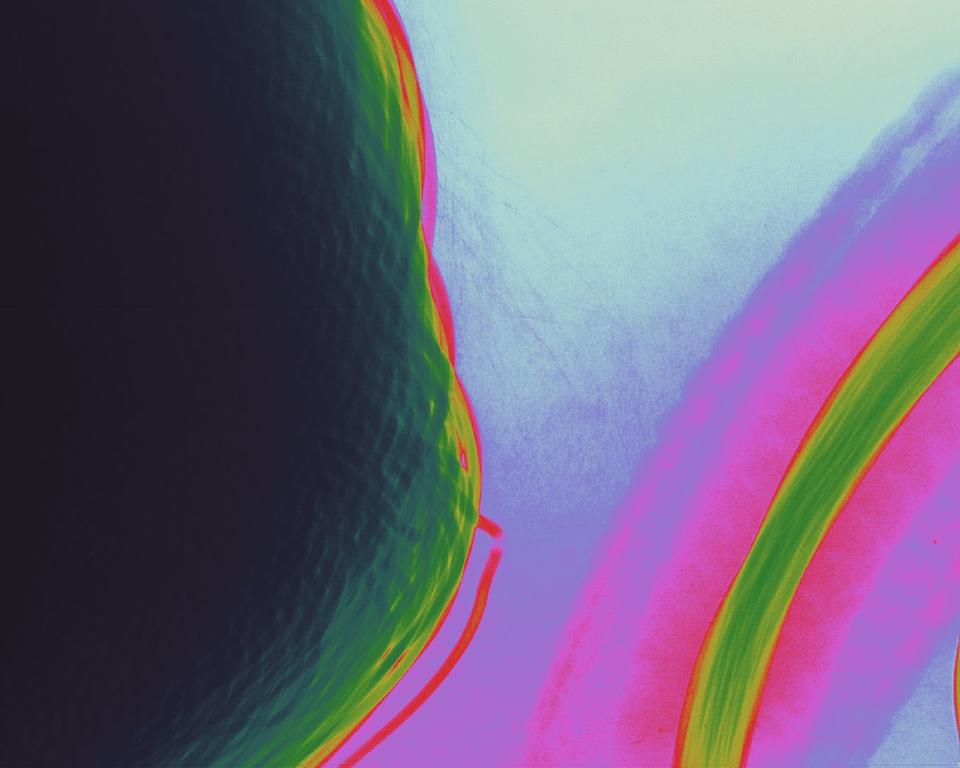

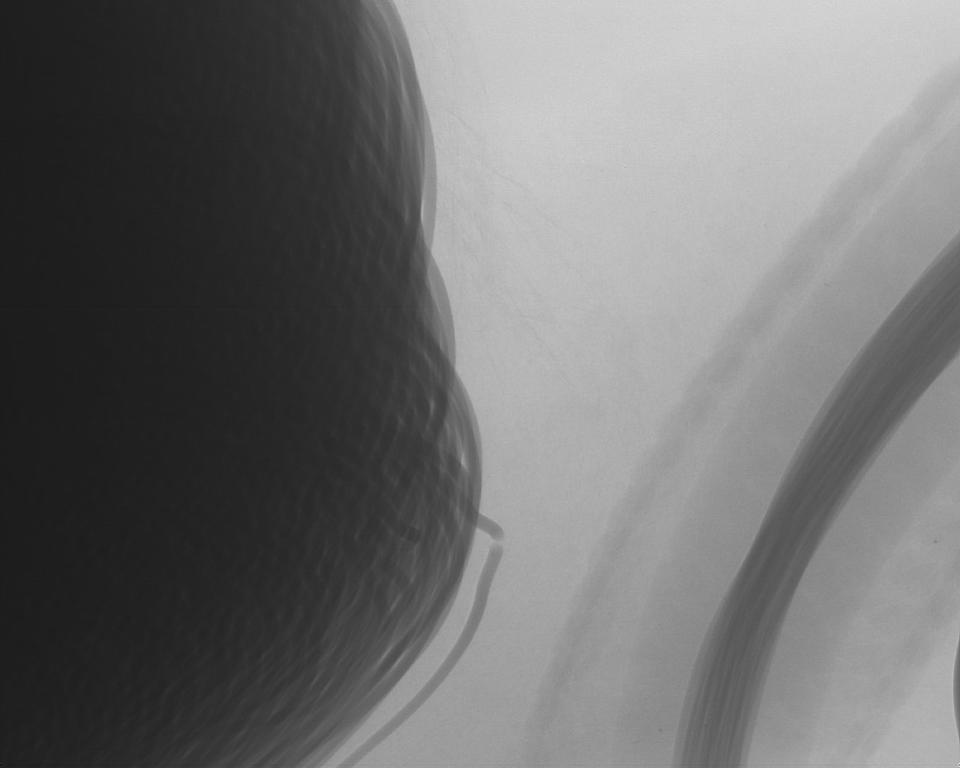

After an Xray inspection of the coil was performed:
Attached Thumbnails
Open exciter coil ? Help-stator_opendensity.jpg

Open exciter coil ? Help-stator_open6.jpg

Reply With Quote
  #5
Old 1 Jan 2021
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
You X-rayed a coil ?

__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #6
Old 2 Jan 2021
Registered Users
Veteran HUBBer

Join Date: Apr 2005
Location: Oxford UK
Posts: 2,116
Quote:
Originally Posted by *Touring Ted* View Post
You X-rayed a coil ?

My shed is starting to look very underpowered right now.

Bit of an upgrade from the fag papers and lump hammer that I used to fix faults with.
Reply With Quote
  #7
Old 4 Jan 2021
Registered Users
New on the HUBB

Join Date: Dec 2020
Posts: 4
Quote:
Originally Posted by backofbeyond View Post
My shed is starting to look very underpowered right now.

Bit of an upgrade from the fag papers and lump hammer that I used to fix faults with.
we have an XRay Machine at work.
Reply With Quote
