84 tt600 chain protector on 84xt600?

Does anyone know if the chain protector, the one on top of the swing arm that the chain runs across, from a 1984 TT600 will work on the same year XT600? The TT one is a 3rd the price so I would rather do that if it will work.
Reply With Quote
  #2
Old 13 Oct 2013
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
I don't think so, all the XT chain slides I've seen are bolted to the side of the swingarm and wraps around top and bottom.

Last edited by jjrider; 13 Oct 2013 at 12:46.
Reply With Quote
  #3
Old 13 Oct 2013
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
Check the height and screw holes.

Last edited by xtrock; 13 Oct 2013 at 13:12.
Reply With Quote
  #4
Old 13 Oct 2013
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Does it look like this, only without the extra strip on top(that's my Teflon addition to extend wear). I've not seen some of the older XT's, but '87-89 are like this.

[/URL][/IMG]
Reply With Quote
  #5
Old 13 Oct 2013
Registered Users
HUBB regular

Join Date: Apr 2013
Location: Bend Oregon
Posts: 20
Quote:
Originally Posted by jjrider View Post
Does it look like this, only without the extra strip on top(that's my Teflon addition to extend wear). I've not seen some of the older XT's, but '87-89 are like this.

[/URL][/IMG]
Yeah thats how mine looks and the tt ones look the same on the yamaha parts diagram.
Reply With Quote
  #6
Old 13 Oct 2013
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Well then I'll have to look into that since I need another one for another XT.
Reply With Quote
  #7
Old 15 Oct 2013
Registered Users
HUBB regular

Join Date: Apr 2013
Location: Bend Oregon
Posts: 20
Well. Part should be here on friday. I'll let you guys know if it fits.
Reply With Quote
  #8
Old 19 Oct 2013
Registered Users
HUBB regular

Join Date: Apr 2013
Location: Bend Oregon
Posts: 20
Same exact part just different part number
Reply With Quote
  #9
Old 19 Oct 2013
Registered Users
HUBB regular

Join Date: Apr 2013
Location: Bend Oregon
Posts: 20

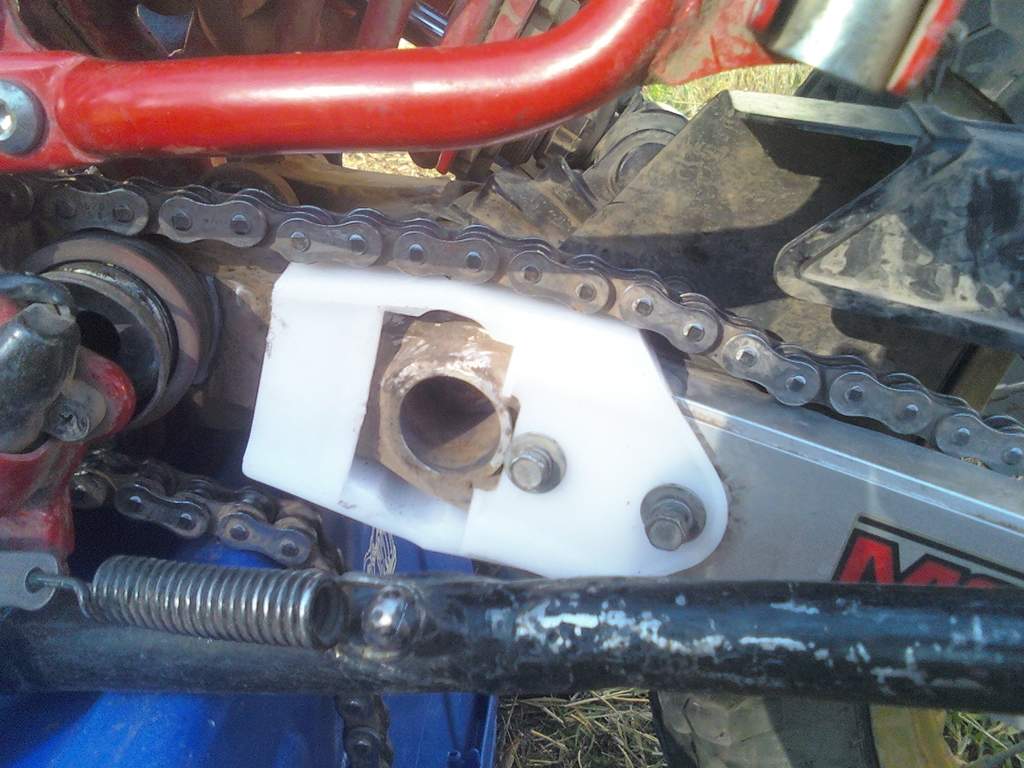

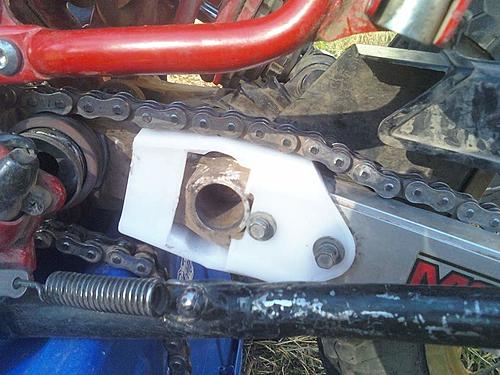

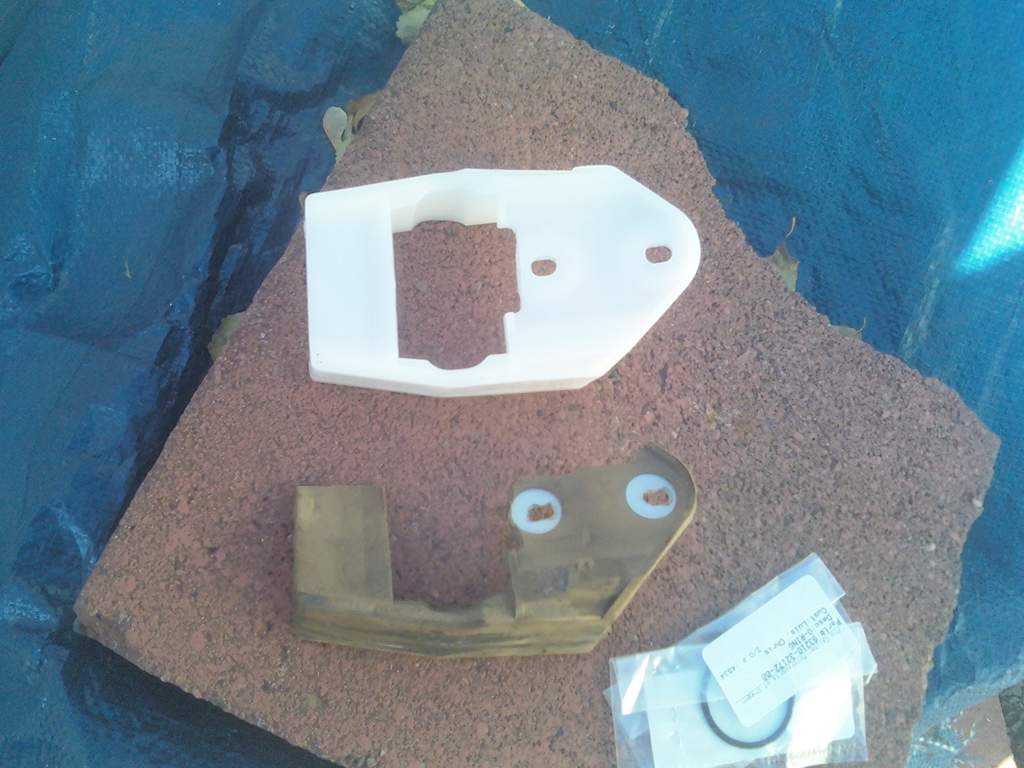

Sorry mezo, I already put it on the bike These are the only picture I took. Mine is as white as it gets. The Part number that my 84 XT600 calls for is 34L-22147-00 and the part number that I ordered and that came on the bag is 5X6-22147-01. Notice that the main part number is the same.
Attached Thumbnails
84 tt600 chain protector on 84xt600?-1018031452.jpg

84 tt600 chain protector on 84xt600?-1018031519.jpg

Reply With Quote
  #10
Old 19 Oct 2013
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Great, I'm ordering 2 or 3 of them since I seem to be acquiring more XT's every week and all have no protectors. I thought it was going to get expensive. I've found a bunch of parts on these bikes now that are the same on other models even quads and way cheaper to boot, part numbers are the same in the middle, just the first couple digits vary, I see a pattern.

Raptor quad2nd & 5th gear looks to be the same, a common failure on XT's and Tenere's.
I'm researching the Raptor TCI also, it may be able to be used on the E-start versions and I got one for $35. Tons of them over here.
Reply With Quote
  #11
Old 19 Oct 2013
Registered Users
HUBB regular

Join Date: Apr 2013
Location: Bend Oregon
Posts: 20
Mezo, Looks exactly the same to me
