Acerbis Tank Fuel Lines
Hi guys, I've just bought an Acerbis tank for my XT but it didn't come with any instructions for routing the fuel lines. So where did you get your fuel lines from? What lines did you use (braided)? What lengths and where did you route them? Pictures would also be awesome! ( my bike is a '91 3TB by the way)
__________________
The Garage:
1991 Yamaha XT600E
1998 Yamaha YZ125 Stripped and waiting for a full rebuild...
1993 Honda CG125 Stolen by my brother
1976 Honda XR75 In need of love and money
1998 Renault Megane Coupe
Reply With Quote
  #2
Old 17 Apr 2009
Matt Cartney's Avatar
Contributing Member
Veteran HUBBer

Join Date: Feb 2004
Location: Edinburgh, Lothian, Scotland
Posts: 1,350
Hi,

My XT Acerbis tank came with fuel lines, but you should be able to buy fuel line no problem from any motor-factors. Car fuel line is often thicker and more robust than bike fuel line. I wouldn't bother with braided, it's not in a very vulnerable position. I think you need line with a 5mm inner diameter, but I'd check this.

Mine didn't come with routing info. On the side where the fuel inlet to the carb is located the routing is obvious. The line from the tap on the other side I just poked it through the gaps. It goes up, then down, but works just fine. You'll need to get a t-junction to join the lines together before they connect to the carb.

You might want to put inline fuel filters in too. These are also widely available but make sure you get ones specifically designed for gravity feed fuel lines.

Matt
__________________
http://adventure-writing.blogspot.com

http://scotlandnepal.blogspot.com/

*Disclaimer* - I am not saying my bike is better than your bike. I am not saying my way is better than your way. I am not mocking your religion/politics/other belief system. When reading my post imagine me sitting behind a frothing pint of ale, smiling and offering you a bag of peanuts. This is the sentiment in which my post is made. Please accept it as such!
Reply With Quote
  #3
Old 24 Apr 2009
w00d's Avatar
Registered Users
HUBB regular

Join Date: Jan 2008
Location: Caithness
Posts: 22
Cheers for the advice Matt, I thought I'd better check if there was a specific routing first before just threading the lines through! How far are you getting to reserve with your tank?
__________________
The Garage:
1991 Yamaha XT600E
1998 Yamaha YZ125 Stripped and waiting for a full rebuild...
1993 Honda CG125 Stolen by my brother
1976 Honda XR75 In need of love and money
1998 Renault Megane Coupe
Reply With Quote
  #4
Old 28 Apr 2009
Matt Cartney's Avatar
Contributing Member
Veteran HUBBer

Join Date: Feb 2004
Location: Edinburgh, Lothian, Scotland
Posts: 1,350
Not completely sure I'm afraid. I don't keep a close check on mileage. I think about 400km for a tankfull on A roads

Matt
__________________
http://adventure-writing.blogspot.com

http://scotlandnepal.blogspot.com/

*Disclaimer* - I am not saying my bike is better than your bike. I am not saying my way is better than your way. I am not mocking your religion/politics/other belief system. When reading my post imagine me sitting behind a frothing pint of ale, smiling and offering you a bag of peanuts. This is the sentiment in which my post is made. Please accept it as such!
Reply With Quote
  #5
Old 29 Apr 2009
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
I used braided fuel lines from here. I used the braided stuff on the part that crosses over the carb as there in potential for rubbing and heat damage.

VWP - pipes & hose

The stuff you get with the Acerbis tanks is crap in my opinion.

I also got some stainless steel Y-pieces as the plastic ones snap easily.



I eventually used clear plastic hose so I could see what was going on... (these old orange pipes were just to get the sizes before I cut the new cler stuff)





Quick tip for priming the pipes.... BLOW into the breather pipe on the tank cap. It will force fuel through the lines and into the float bowl.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #6
Old 14 Feb 2015
zandesiro's Avatar
Registered Users
Veteran HUBBer

Join Date: Feb 2011
Location: Polygyros GR
Posts: 558
Quote:
Originally Posted by w00d View Post
Hi guys, I've just bought an Acerbis tank for my XT but it didn't come with any instructions for routing the fuel lines. So where did you get your fuel lines from? What lines did you use (braided)? What lengths and where did you route them? Pictures would also be awesome! ( my bike is a '91 3TB by the way)

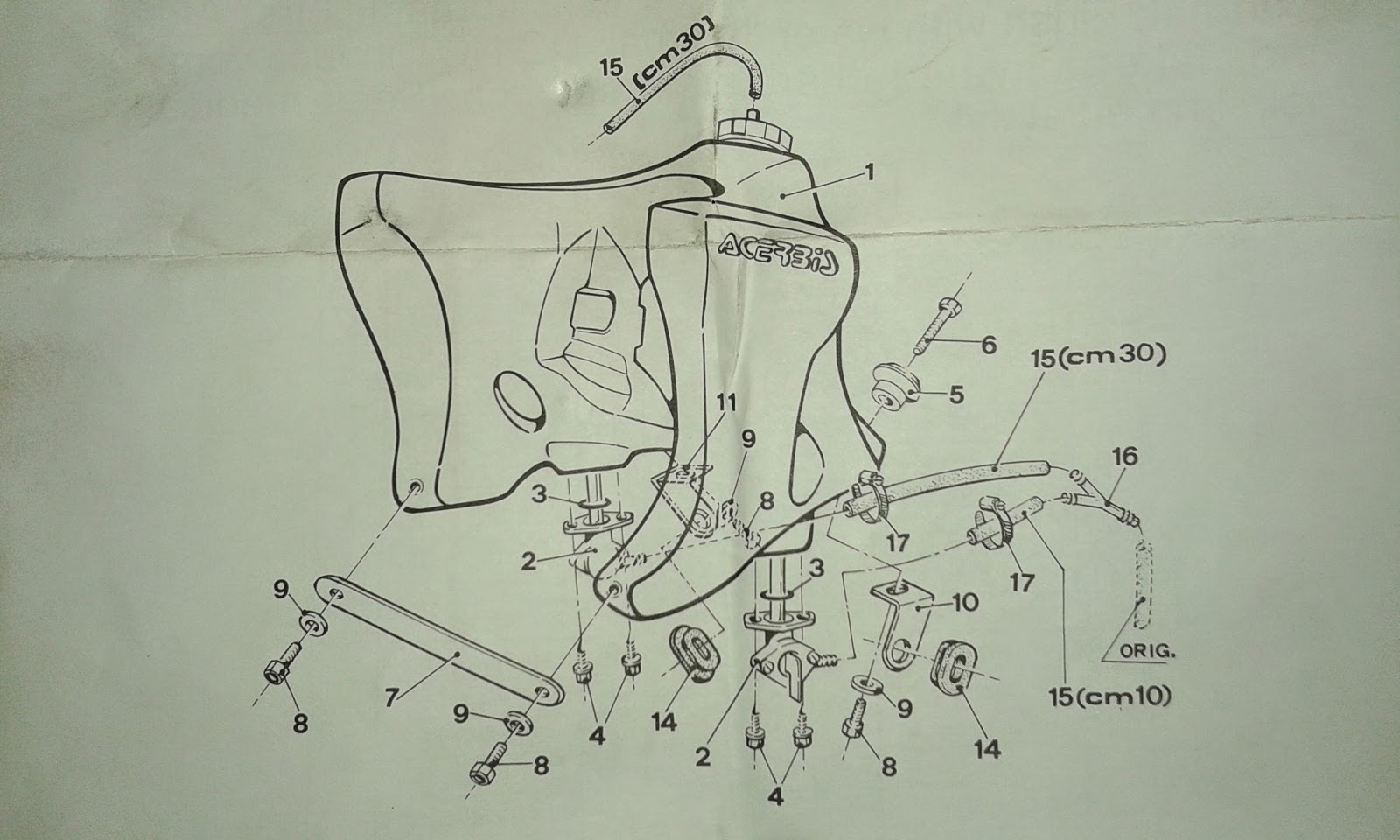

Just fitting mine so here is the instructions!

I know is a quote in a post 5+ years old, but, just in case someone needs the original fitting guide!
