Carb cleaning

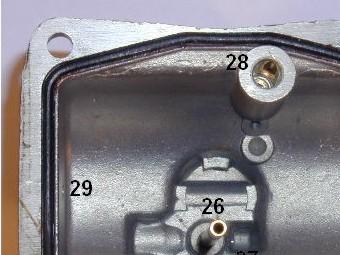

Can someone tell the purpose of section 28 on picture attached? I have cleaned all but section 28 is mistery for me. I can see small hole under it, but do not know for sure is there any connection?? Tried with air and tin wire.
Attached Images

Reply With Quote
  #2
Old 15 Apr 2008
Registered Users
Veteran HUBBer

Join Date: Apr 2003
Location: Manchester UK
Posts: 235
I believe that is the idle jetting. And yes, there will be a connection.
Reply With Quote
  #3
Old 15 Apr 2008
Registered Users
HUBB regular

Join Date: May 2006
Posts: 20
Maybe my picture is not good. It is section in float chamber.
Reply With Quote
  #4
Old 15 Apr 2008
Contributing Member
Veteran HUBBer

Join Date: Oct 2002
Location: montana usa
Posts: 547
Carb cleaning

It would help me to know what bike this carb bowl is off of? It looks like it is the fuel supply for the choke circuit. Does a small brass pipe index into this well when the carb is assembled? If it is the choke circuit it works to limit the flow of gas after the initial startup. The small hole limits how much gas can enter into the little well and get sucked up into the engine. I clean them by using a strand from a long bristled wire brush with carb cleaner and air blower. Unless this is off a twin carbed single cylinder engine or a old yamaha twin cylinder two stroke that only use a choke curcuit on one carb. Also if a shop has as ultrasonic carb cleaner it makes this job easier.
Reply With Quote
  #5
Old 15 Apr 2008
Registered Users
Veteran HUBBer

Join Date: Apr 2003
Location: Manchester UK
Posts: 235
Quote:
Originally Posted by igrujin View Post
Maybe my picture is not good. It is section in float chamber.
I gathered that much. and when attached to the carb body that section completes the idle jetting. Gathering from the kink in the O ring, that is the forward facing side with the float ensemble, behind that next to the front wall the idle jetting ports are found.
Reply With Quote
  #6
Old 15 Apr 2008
Registered Users
HUBB regular

Join Date: May 2006
Posts: 20
Thanks Bill,

my mistake. Bike is xt 600z 3aj Tenere. Probably the reason of cold start problem I have tryed to solve for months?
