Cast wheels

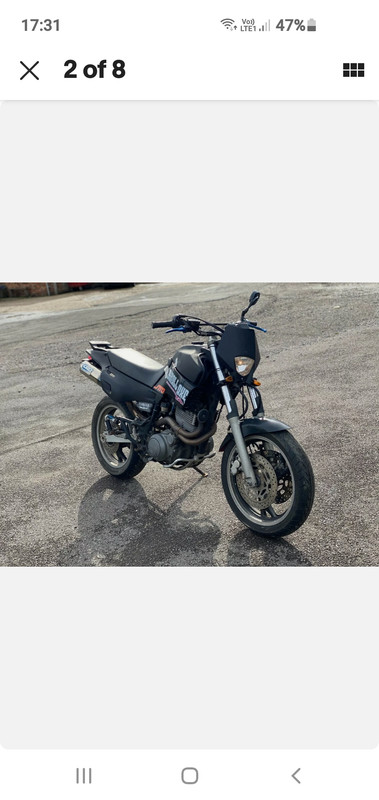

Just saw this and wondered what wheels and front end they have used.





Cheers
Min

Last edited by theoneandonlymin; 14 Jun 2021 at 22:16.
Reply With Quote
  #2
Old 17 Oct 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
Tdm 850
Reply With Quote
  #3
Old 17 Oct 2020
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
Thanks,

Haven't done any measurements to see if it will all fit. TDM parts can be cheap enough..
Cheers
Min
Reply With Quote
  #4
Old 17 Oct 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
front shouldnt be a problem if you fit also the 850 fork like that guy.

on the stock xt600 fork, i doubt it would work and you wont be able to use the twin disc setup either


the 850 150mm rear should fit. i have in my supermoto xt600 a 140mm and there is still room for a bit more
Reply With Quote
  #5
Old 29 Nov 2023
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
Managed to buy a TDM850 rolling chassis over the weekend after a search for one at the right price. Now I will have a stash of TDM850 parts for sale. Ah well. Hope to strip it down and see how it all fits together over the next few weeks. I've a bare 3TB frame so we'll figure it out on that.



Cheers
Min
Reply With Quote
  #6
Old 30 Nov 2023
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
nice, just fit the whole front end, hopefully steering stem bearings diameters will be the same.... but all-balls have all sorts of conversion bearings for those swaps


https://www.allballsracing.com/


i believe you will have some issues with stem length, TDM might be longer,
a turned spacer might be needed too, youll have to mcgyver it


good luck selling the parts....
Reply With Quote
  #7
Old 8 Dec 2023
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
Stripped out the TDM at lunchtime today, so thought I'd throw them at a frame. Straight in using the TDM yokes!!! Need to think about steering stop but not much else. Apart from how the clocks fit, the different size front wheel for the speedo etc etc



Cheers
Min

Last edited by theoneandonlymin; 17 Dec 2023 at 08:41.
Reply With Quote
  #8
Old 17 Dec 2023
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
Don't you love a Yamaha. Rear wheel went in OK, original XT spacer distanced the sprocket correctly.
Still a bit of caliper disc fiddling to go



Cheers
Min
Reply With Quote
  #9
Old 4 Jan 2024
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
looks good! post the final result...


this is mine


https://www.horizonsunlimited.com/hu...permoto-01.jpg
Reply With Quote
  #10
Old 4 Jan 2024
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
Good work indeed, I've got this far. Few problems to solve yet




Cheers
Reply With Quote
