  #46
Old 16 Dec 2014
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 204
Not working either... There's no part I need.

Yamaha Motorcycle Parts 1993 XT600EEC CRANKSHAFT PISTON Diagram

Not on the list. Or anywhere else...

Half of Kingdom and a Princess to someone who can show me exactly where I can find the damn sprocket to buy
Reply With Quote
  #47
Old 16 Dec 2014
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
That sprocket isn't a separate part, I think they figure it is part of the crank assembly since it get pressed on so hard. About the best bet otherwise would be to buy another used crank if you can find one with lower miles and either use that or press off the sprockets. I know other brands do the same thing with that sprocket, I wanted to change it on my klr but it wasn't an option to buy, just bought another low mileage crank.
Reply With Quote
  #48
Old 16 Dec 2014
Registered Users
Veteran HUBBer

Join Date: Feb 2005
Location: uk
Posts: 217
maybe?
hi I don't know if its the same as the xt/sr500 one that kedo sell, item 28342, give them a call they might know or be able to measure one for you, hope this helps, steve
Reply With Quote
  #49
Old 16 Dec 2014
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Partzilla has that listed also, can't say it'll fit though ,Yamaha Motorcycle Parts 1979 SR500F CRANK-PISTON Diagram

Bearing on the other side is the same, I don't know if thats the same as the sprocket side on the 600 though, that would make it the same id at least.
Reply With Quote
  #50
Old 17 Dec 2014
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Its one part (well i mean you cannot buy parts separate) i may have to buy the whole crank assembly myself & at $300 its cheap as chips, earlier XT`s are more than double that price.

Mezo.
Reply With Quote
  #51
Old 17 Dec 2014
Registered Users
HUBB regular

Join Date: Nov 2010
Posts: 66
Correct. Yamaha do not supply the crank sprocket loose.

Reason given; it is not keyed and Yamaha don't think customers/workshops can refit it exactly where it was.

You only need to remove it if you want to renew the bearing, where a new crank half is their preferred option.

But it can be done.

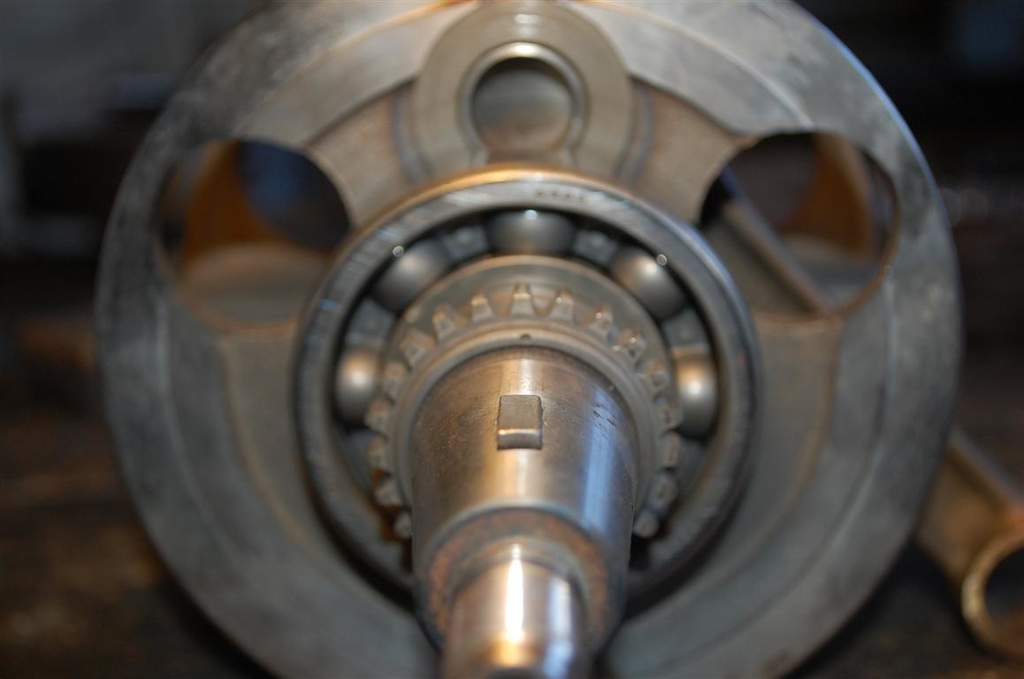

To quote ActionManMelb: Step away from that puller until you measure and record the position of your gear.

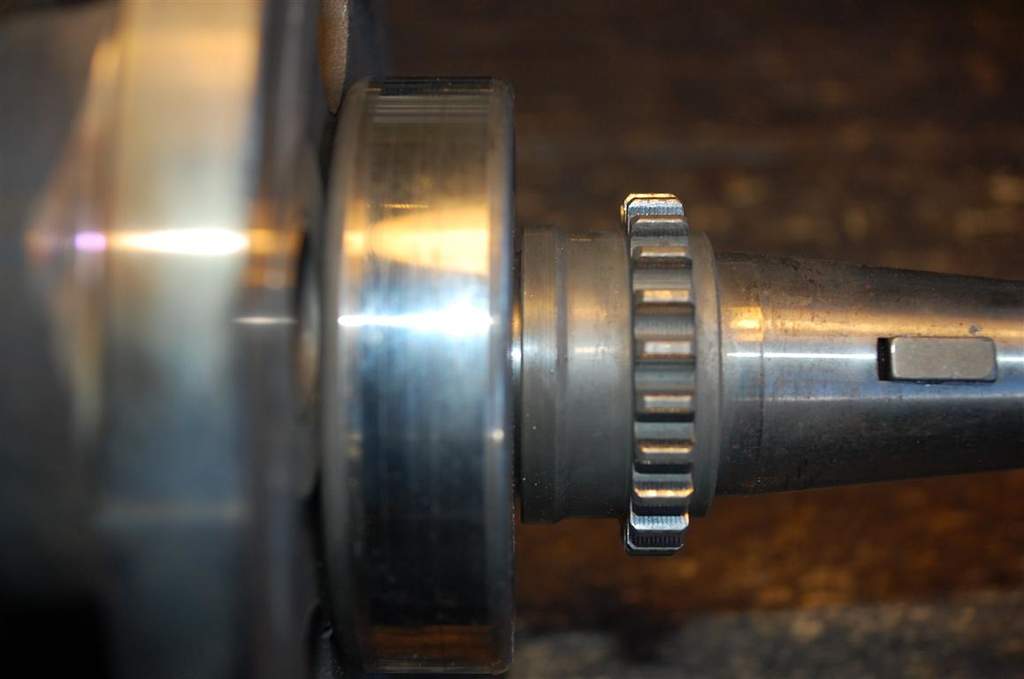

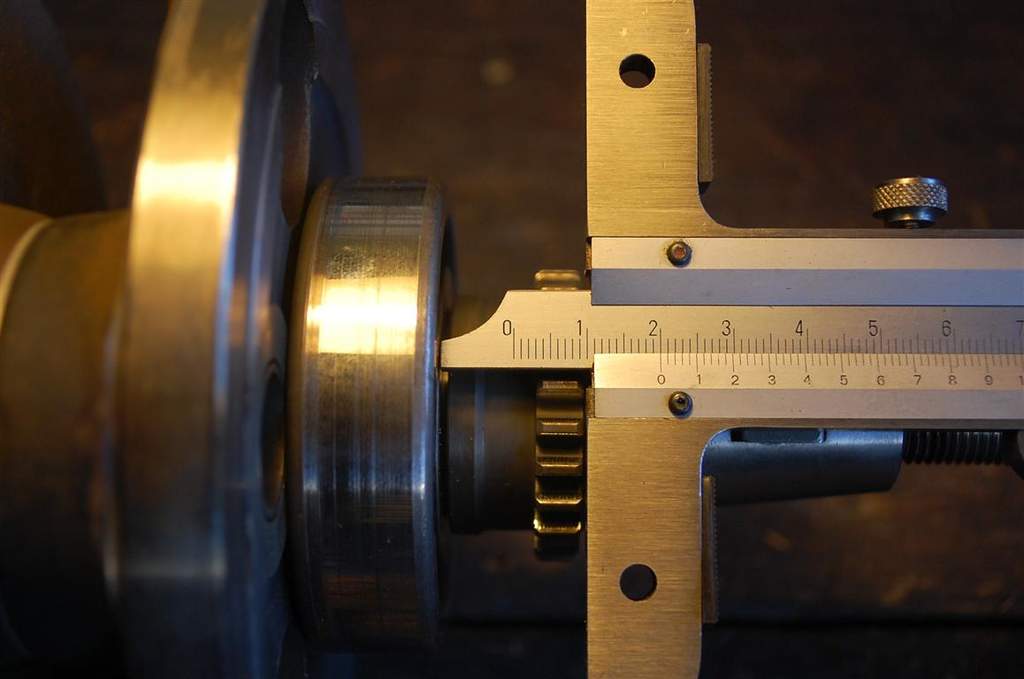

Click any pic to enlarge. This gear the outer edge of tooth is 20mm from bearing face, which is regarded as correct.

Aligning the gear with the key-way is not difficult and a fraction of degree out would not be noticeable on performance.

p
Attached Thumbnails
Engine rebuild: what to buy and where-valve-timing-mark-medium-.jpg

Engine rebuild: what to buy and where-crank-sprocket-gap-medium-.jpg

Engine rebuild: what to buy and where-sprocket-possition-medium-.jpg

Reply With Quote
  #52
Old 17 Dec 2014
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 204
Thanks on the replies guys.

And no, the XT500 sprocket is different, as the chain is different (500's chain links are round, 600's links are flat).

300$ isn't much, yes, but I've already bought the con rod kit, and I'll see what I do once the engine is completely disassembled. I might have to buy the kit... To be continued.

Anyway, worst case scenario I'll mark the sprocket, take measurements, and put it back together as it was.
Reply With Quote
  #53
Old 17 Dec 2014
Registered Users
Veteran HUBBer

Join Date: Feb 2005
Location: uk
Posts: 217
hi whats wrong with the sprocket or are you just wanting to replace the bearing behind it? as kedo do a pressing off/ pressing on service DL40 if your sprocket is good to reuse ,if not give them a call as they may have a good condition one as they do crankshaft work ,steve
Reply With Quote
  #54
Old 10 Nov 2017
N67's Avatar
N67 N67 is offline
Registered Users
Veteran HUBBer

Join Date: Oct 2016
Location: Dusheti, Georgia
Posts: 196
gasket / year compatibility
plan to take some care to the top end of my '02 xt this winter.

Earlier I was thinking to order https://www.ebay.com/itm/Yamaha-XT-6...9Z2xkx&vxp=mtr

then, found this option - https://www.ebay.com/itm/ATHENA-FULL...dYyNjQ&vxp=mtr
there's some more stuff, and price+postage is same for me. btw, "image is for reference only" is noted here.

I think that gasket set suitable for 1995 xt will be suitable for 2002 as well.
if not, what about listings like this? - https://www.ebay.com/itm/Yamaha-Comp...JZdkMt&vxp=mtr
they indicate almost all years...

So, is it safe to get second option, or there still might be some major difference?
Reply With Quote
  #55
Old 11 Nov 2017
Registered Users
Veteran HUBBer

Join Date: Jul 2016
Location: Obidos, Portugal
Posts: 134
Check out KEDO - Performance Products. They're much closer to you, do the full and top gasket sets and I think might work out cheaper for you.
Reply With Quote
  #56
Old 11 Nov 2017
N67's Avatar
N67 N67 is offline
Registered Users
Veteran HUBBer

Join Date: Oct 2016
Location: Dusheti, Georgia
Posts: 196
Thanks connal
seems there're nice options, but still need some help..

I've found that ones and not sure which of them will be suitable for '02 xt600e:

KEDO - Product Details
>> here application is indicated "XT600-'88, XT600Z-'87, SRX600"

and
KEDO - Product Details
>> here "TT600S/E/R/RE, XT600'89, XT600Z'88-, XT600E/K" is indicated..


And another point - Is there some difference in the quality/durability of KEDO and Athena?
I mean mostly cylinder gaskets and rubbers, the "paper" ones I cut from different material anyway..

: )
Reply With Quote
  #57
Old 11 Nov 2017
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
The number 2 is listed for E models, which you've got.
Reply With Quote
  #58
Old 11 Nov 2017
N67's Avatar
N67 N67 is offline
Registered Users
Veteran HUBBer

Join Date: Oct 2016
Location: Dusheti, Georgia
Posts: 196
Thanks : )

Probably will get them instead of Athena, if there's no significant difference in the quality.

It was like a small surprise - gasket-set-level compatibility of TT and XT.
Reply With Quote
