Fitting a GSXR 1000 exhaust to an xt600e?

Anyone have any info on how to do this? I have seen that from the header pipes you need to knock up some sort of connector pipe.

The reason I ask is because I have a 2001 gixxer can in the garage, and it will be alot lighter than the original can.
Would I have to adjust the carb setting or anything else too?
Reply With Quote
  #2
Old 15 Apr 2014
Registered Users
HUBB regular

Join Date: Oct 2013
Posts: 77
I believe the exhaust on the TBE is an actual stressed member of the frame. Why it's so heavy. Keeping mine stock.
Reply With Quote
  #3
Old 15 Apr 2014
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
I use KN filter, Yoshimura RS3, Dynojet kit stage 2 and it runs perfect. And i tell the sound its amazing!! Its not like a terrible noice, its nice XT sound normal riding, and heavy shit when you give full throttle. I dont know if RS3 can be compared to stock from your bike, you can see the pipe from you have to weld.


foto hochladen
Reply With Quote
  #4
Old 16 Apr 2014
mollydog's Avatar
R.I.P.
Veteran HUBBer

Join Date: Aug 2003
Location: california
Posts: 3,824
The XT shown above has an aftermarket Yoshimura pipe on it (made in USA).
It's a LOT more free flowing than your GSXR can and it's lighter too. But Yoshi pipes like that are generally obnoxiously noisy ... at least they are as sold in USA ... if in Norway they probably insist on some sort of restrictor ...
to keep it quiet, so an exercise in futility there. Guys in USA run these and they are REALLY annoying.

Hundreds of DR650 riders are using that same GSXR can on post '97 bikes. I have one too, not fitted yet. No jetting changes required at all on the DR650 ... and probably the same with your XT. K&N filters are fine ... if you never go off road. Off road in serious dust K&N can let a lot of dust into your carb. I much prefer an oiled, foam filter. I like Twin-Air brand.

I believe your XT has a Mid Pipe ... and the standard one will not work with the GSXR can. A good muffler shop or fabricator can knock up a mid pipe in a couple hours. You will then need to fit an adaptor to mount can to your sub frame. All very straight forward stuff for a good fabricator.

The Mid pipe for the GSXR can for the DR650 is $225 usd.

Many of the GSXR's cans used are Titanium. Not sure about your 2001 can, but could well be a Ti can. Very well made piece, NO REPACKING ever required. Will last forever ... and only just a bit louder than your stock exhaust. Win Win ... but not a free mod. $$$

What do you gain? No power change and a bit lost weight (Maybe a kg. or two at most over stock) ... and a much nicer sound.

Reply With Quote
  #5
Old 16 Apr 2014
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
Quote:
Originally Posted by mollydog View Post
The XT shown above has an aftermarket Yoshimura pipe on it (made in USA).
It's a LOT more free flowing than your GSXR can and it's lighter too. But Yoshi pipes like that are generally obnoxiously noisy ... at least they are as sold in USA ... if in Norway they probably insist on some sort of restrictor ...
to keep it quiet, so an exercise in futility there. Guys in USA run these and they are REALLY annoying.

. K&N filters are fine ... if you never go off road. Off road in serious dust K&N can let a lot of dust into your carb.


Well i dont agree, i have free flow RS3. I dont ride bike and hope no one will here me coming, then you can buy a electric KN filters are supposed to be oiled and can and are used in dirt on bikes and cars.
Reply With Quote
  #6
Old 16 Apr 2014
Registered Users
Veteran HUBBer

Join Date: Nov 2012
Location: London
Posts: 300
Seems like I wouldnt save too much money then, the can I have is the same as in those pictures.....

Seems like it would be better for me to just get a ready made system to save some weight and a better sounds (I dont want to have a stupid exhaust, just a nicer sound, solid and lighter)
Reply With Quote
  #7
Old 27 Apr 2014
Registered Users
Veteran HUBBer

Join Date: Dec 2010
Posts: 114

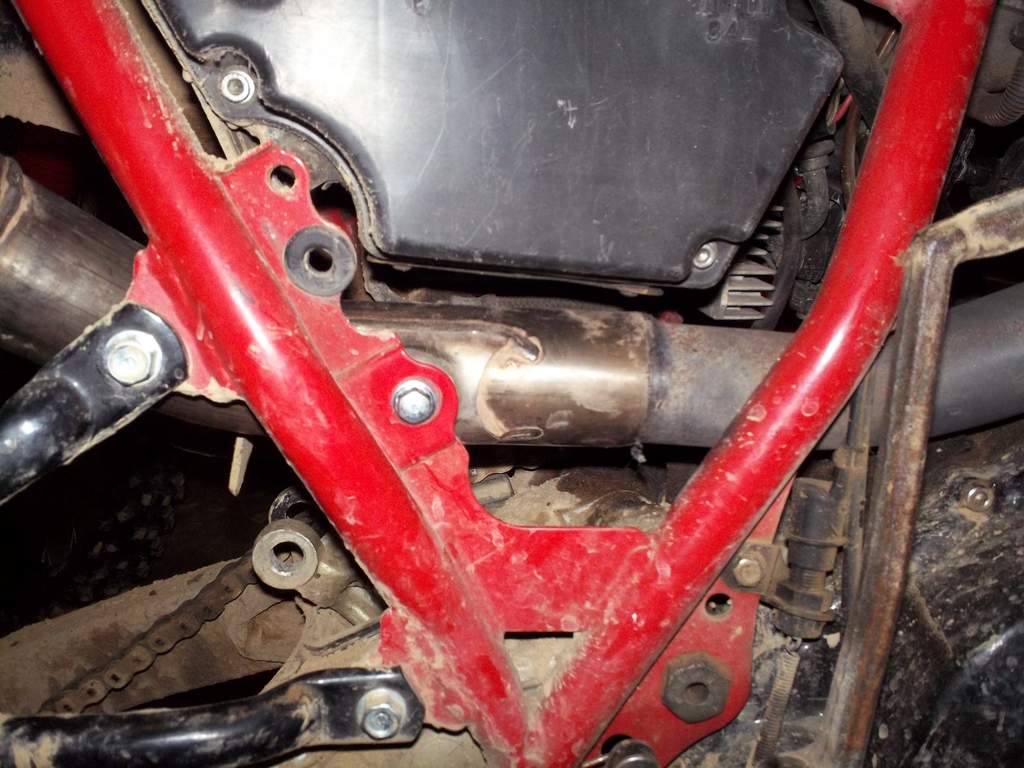

Kawasaki kxf 450 silencer is also a relatively easy fit too...the one on mines got a dented end cap..which meant the previous owner had to go and buy a carbon and titanium thing for a million quid nearly..much to my benefit....
Attached Thumbnails
Fitting a GSXR 1000 exhaust to an xt600e?-image.jpg

Reply With Quote
  #8
Old 27 Apr 2014
Registered Users
Veteran HUBBer

Join Date: Dec 2010
Posts: 114
Here's another one...
Reply With Quote
  #9
Old 28 Apr 2014
Registered Users
HUBB regular

Join Date: Apr 2014
Location: Hawkes Bay New Zealand
Posts: 28
Hi .I found i got a more power on my 600e when I fitted a yz 426 can I had to make the in-between pipe, and a bracket to support the seat . but it was worth it I,m not familiar with the size of the inside pipe in the GSXr can but if its at least the size of the pipe after your header pipes join into one then you will be flying singles need a bigger pipe through the can than four cylinders of the same cc
Reply With Quote
  #10
Old 28 Apr 2014
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
Quote:
Originally Posted by marcm View Post
Here's another one...
Yes this loik nice
Reply With Quote
  #11
Old 31 Aug 2014
Registered Users
Veteran HUBBer

Join Date: Nov 2012
Location: London
Posts: 300
Thinking about this again as I have been offered a gixxer 600 exhaust and headers for free, after fitting a new exhaust to a friends bike.....

There a difference to the 600 to the 1000? Maybe I can make a link pipe out of the headers?
Reply With Quote
  #12
Old 1 Sep 2014
Registered Users
Veteran HUBBer

Join Date: Nov 2012
Location: London
Posts: 300
not sure but its the standard pipe off an 04 gsxr.
Reply With Quote
