spark plug diagnosis
i changed my spark plug today. 1500-2000 km since last/1 year.

how would you say this plug looks?

the bike has been a bit difficult to start lately (kick).

i feel there might be some unburned fuel when i release the trottle, it doesn't go "bang" in the exhaust, but it rumbles a bit.

last time i changed plug the plug wasn't white at the tip as this one is. The picture may lie a bit, its not completely white, but grayish.
Attached Thumbnails

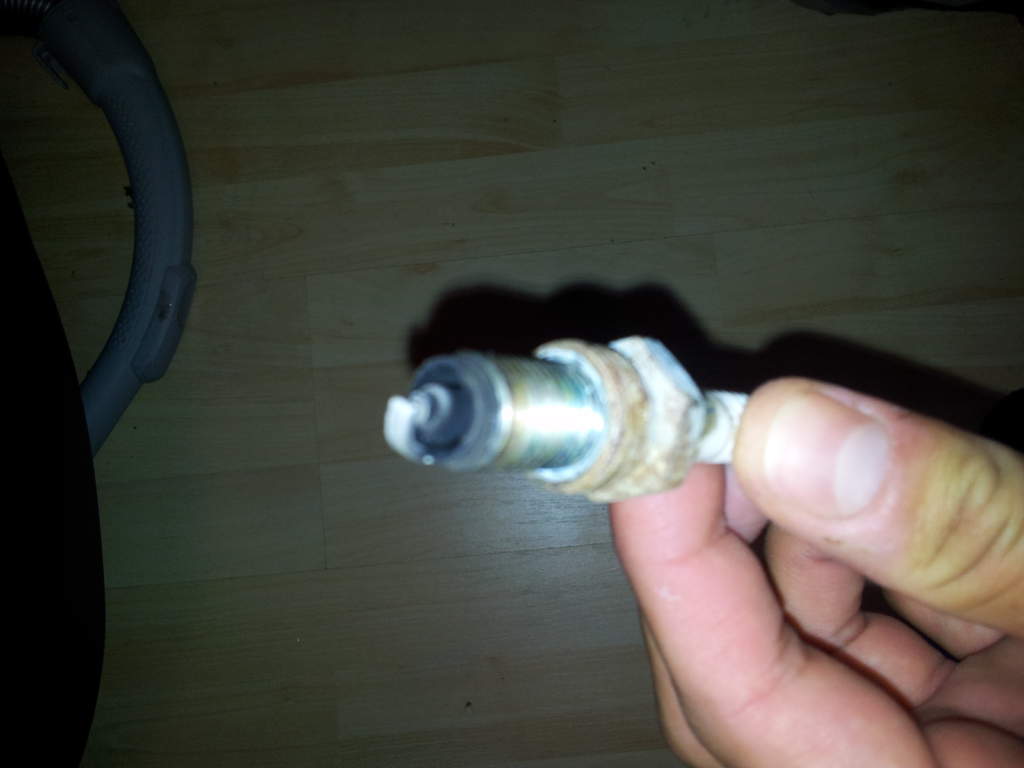

spark plug diagnosis-20120805_122609.jpg

Reply With Quote
  #2
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
the plug is altso a bit rusty on the outer parts
Reply With Quote
  #3
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
better pic
Attached Thumbnails

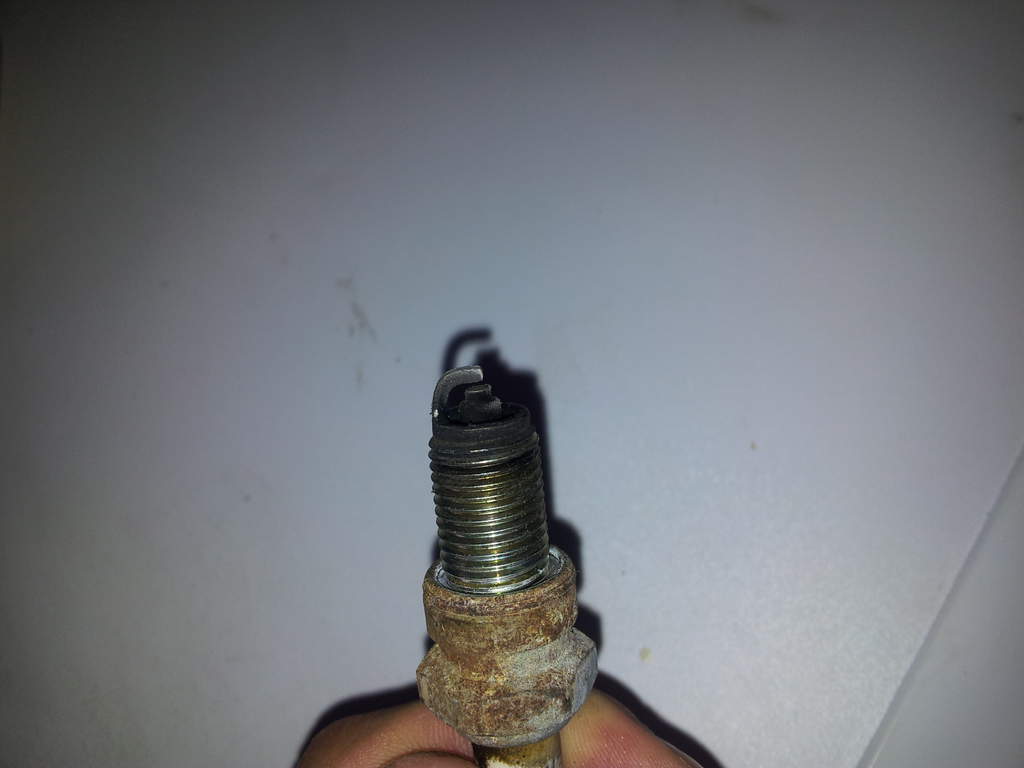

spark plug diagnosis-20120805_130246.jpg

Reply With Quote
  #4
Old 5 Aug 2012
Registered Users
Veteran HUBBer

Join Date: May 2012
Location: Lithuania
Posts: 204
Looks like it's running too rich on the fuel to air ratio. Spark plug should be gray-ish color, kinda like the color of the sand.
Reply With Quote
  #5
Old 5 Aug 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Is it the correct heat range for your bike/climate/altitude etc ?
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #6
Old 5 Aug 2012
Registered Users
Veteran HUBBer

Join Date: Apr 2005
Location: Oxford UK
Posts: 2,116
Have a look at this link - How you can read spark plugs and select them - by Gordon Jennings. It was written by an American journalist and published back in the late 70's but it's just as relevant today. There's such a lot of info there that by the time you get to the end of it you'll probably be able to read next week's lottery numbers from the distribution of soot on your plugs.
Reply With Quote
  #7
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
Quote:
Originally Posted by *Touring Ted* View Post
Is it the correct heat range for your bike/climate/altitude etc ?
im not shire what you mean here?

i haven't adjusted the carburetor before, is it straight forward to adjust the air/gas ?
Reply With Quote
  #8
Old 5 Aug 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by bikereurope View Post
im not shire what you mean here?

i haven't adjusted the carburetor before, is it straight forward to adjust the air/gas ?
Spark Plugs 101: Understanding Spark Plug Heat Range - SummitRacing.com


Before you think about jetting... Is it running okay ? Is it popping or does it feel hesitant to rev up ?

Have you changed your exhaust/airbox/filter etc ??

Are you valve clearances okay ?
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #9
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
haven't changed anything.

it runs great. i think its using some oil, its difficult to read the levels correctly on the bike. i have done the procedures that is recommended on the hubb. is it possible that the oil doesn't flow back up to the "oil tank"as good as it should?

but. the bike runs great. no popping, but maby a "rumble" when i get off the trottle...

its a kick, and lately it has been harder to kickstart when cold.
Reply With Quote
  #10
Old 5 Aug 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by bikereurope View Post
haven't changed anything.

it runs great. i think its using some oil, its difficult to read the levels correctly on the bike. i have done the procedures that is recommended on the hubb. is it possible that the oil doesn't flow back up to the "oil tank"as good as it should?

but. the bike runs great. no popping, but maby a "rumble" when i get off the trottle...

its a kick, and lately it has been harder to kickstart when cold.
Check your valve clearances... Very easy to check and adjust on an XT600.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #11
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
ok, they were checked 2500 km ago by last owner...
Reply With Quote
  #12
Old 5 Aug 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by bikereurope View Post
ok, they were checked 2500 km ago by last owner...
Any white/blue smoke when running or at start up ? You say it's burning oil.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #13
Old 5 Aug 2012
Registered Users
HUBB regular

Join Date: Feb 2011
Posts: 70
some smoke when starting. stops after 200 meters. valve seals maby or to much oil...
Reply With Quote
  #14
Old 5 Aug 2012
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by bikereurope View Post
some smoke when starting. stops after 200 meters. valve seals maby or to much oil...
If an engine always smokes it's a sign of head gasket/badly leaking valves, piston rings etc.

If it's just on start up it's usually a weeping valve seal..

That's assuming you're SURE it's oil smoke.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #15
Old 7 Aug 2012
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
The only reliable way of reading a spark plug is by doing a "Plug Chop"

Google it.

Mezo.
