Tenere 34L. worn kickstart shaft
Hi All,

Whilst window shopping on ebay the romance of old 80's thumpers got me. I spotted a 34L tenere and a short trip and a bit of cash later I now have a tenere sat next to my elefant.
I had on of these tenere's about 10 years ago and just didn't realise what a good bike it was at the time. I wish I had not sold it from my hospitol bed in NDB. ahh the wisdom of hindsight...
My 'new' one is a UK bike and is not bad for 24 yrs old. one thing that does bother me is the kickstart - the shaft is worn where it goes through the clutch cover and the hole in the cover is worn as well. there is about 1mm or 2mm play. some sand or something must have got past the seal and ground away the metal every time it was kicked over.

anyone else had this problem?

any clever fixes?

apart from the oil seep will it do any harm?

cheers
Last edited by Lamin Sambou; 17 Nov 2008 at 01:55.
Reply With Quote
  #2
Old 17 Nov 2008
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
Try replacing the seal...

if you could post a picture we could comment..

Safe riding
Reply With Quote
  #3
Old 17 Nov 2008
Registered Users
Veteran HUBBer

Join Date: Jul 2001
Location: Bmth, UK
Posts: 148
wobbly bits
Quote:
Originally Posted by bacardi23 View Post
Try replacing the seal...

if you could post a picture we could comment..

Safe riding

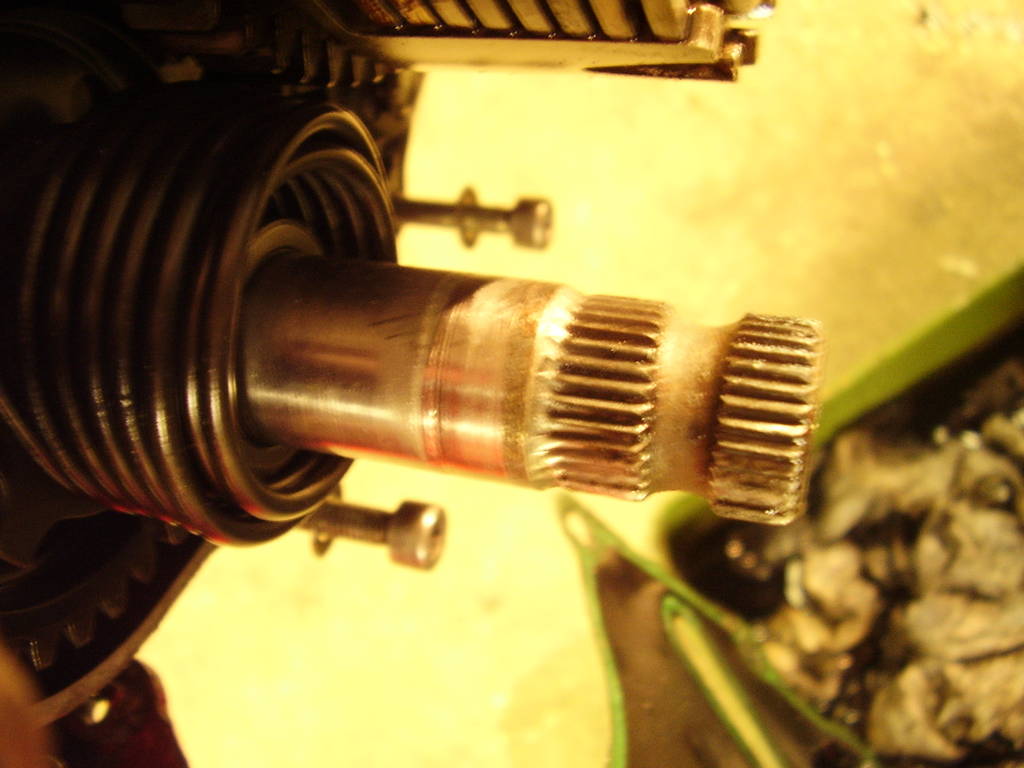

this is what the shaft looks like, imagine how much the softer metal of the hole in the clutch cover has suffered.
Attached Thumbnails
Tenere 34L. worn kickstart shaft-kickshaft-005.jpg

Reply With Quote
  #4
Old 18 Nov 2008
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
Hey there.... Uhmm it looks like it has gotten a lil use but doesn't seem wasted...

The cheapest thing you can do is put a new seal and check if it leaks...

The most expensive is to get another kickstart shaft and another side cover and the new seal....



Vando
Reply With Quote
  #5
Old 10 Dec 2008
Registered Users
New on the HUBB

Join Date: May 2008
Location: Saldanha
Posts: 2
Clutch side cover
Hello Friends
Anybody got a clutch cover for an XT600 Tenere the 34 L.Mine is cracked,somebody tried to weld it and even buggered it up more.
Lamin Sambo if you get a new side cover I will be interrested in yours.
Excuse my bad english.Spares for my bike in South Africa is just about non existent.

subie
Reply With Quote
  #6
Old 10 Dec 2008
Registered Users
Veteran HUBBer

Join Date: Jul 2001
Location: Bmth, UK
Posts: 148
Quote:
Originally Posted by subie View Post
Hello Friends
Anybody got a clutch cover for an XT600 Tenere the 34 L.Mine is cracked,somebody tried to weld it and even buggered it up more.
Lamin Sambo if you get a new side cover I will be interrested in yours.
Excuse my bad english.Spares for my bike in South Africa is just about non existent.

subie
Hi Subie,

I've just stuck a new seal in for now, there's plenty of clutch covers on ebay in europe, you just need a kindly seller that will send it to you on DHL or something. or find someone who's better at welding....

good luck
Reply With Quote
  #7
Old 10 Dec 2008
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
Hey there, don't forget to say how the seal worked out

OH have you put a little high temp grease on the gasket? you should put some if the seal doesn't work because that will allow you to remove the gasket without wasting it!

Vando
Reply With Quote
  #8
Old 10 Dec 2008
Registered Users
Veteran HUBBer

Join Date: Jun 2008
Location: yorkshire england
Posts: 201
hi there on my 1985 43f the kickstart shaft has up and down play .also the kickstarter cracked on the swivel , when i bought the bike about a year ago the kickstarter was good ,but i dont know about the shaft i had no reason to check it. the reason it all went bad is i had no decompresser cable fitted ,so the extra effort to kick it up defenatly broke the kickstarter . i know have a cable fitted and have welded the crack up , so my advice is always have the decompresser cable fitted and adjusted . my thoughts are the kickstarter and shaft and caseing are not up to the job with out a cable fitted . so the legendary xt do,s seem to have a few flaws, but this is my fault, a new kicker is 75 pounds (outch) , and about 35 on ebay but how wobbly are these , good luck with sorting it take care zigzag
Reply With Quote
  #9
Old 11 Dec 2008
Registered Users
Veteran HUBBer

Join Date: Jul 2001
Location: Bmth, UK
Posts: 148
Quote:
Originally Posted by bacardi23 View Post
Hey there, don't forget to say how the seal worked out

OH have you put a little high temp grease on the gasket? you should put some if the seal doesn't work because that will allow you to remove the gasket without wasting it!

Vando
Hi Vando,

new seal is OK for now, the hole in the case is worn about 3mm one side. I'm not using the XT on a daily basis but if the seal can't cope with being distorted on every kick then I was thinking to drill the hole and put a sleeve in.
Reply With Quote
