ttr600 ignitech
Hello
My first post at the forum..
I have Yamaha ttr600 Belgarda 2001 with kickstart.
I changed CDI box from original to Ígnitech because original was broken.
After changing I managed to start the bike, but now the bike is very difficult to start as cold. As warm it starts with first kick.
When engine is cold sometimes it needs five kick to start, but sometimes I need to wait few minutes after these kicks and then make new five kicks and then it usually starts.
With old CDI, bike started with two or three kicks.
Could it be something with ignition curve? I have tried to change curve from Ignitech software, but haven't found solution yet.
Do someone here have ignitegh in ttr600? I would like to see what kind of curve other have.
I emailed to Ignitech and they said I have right curve..

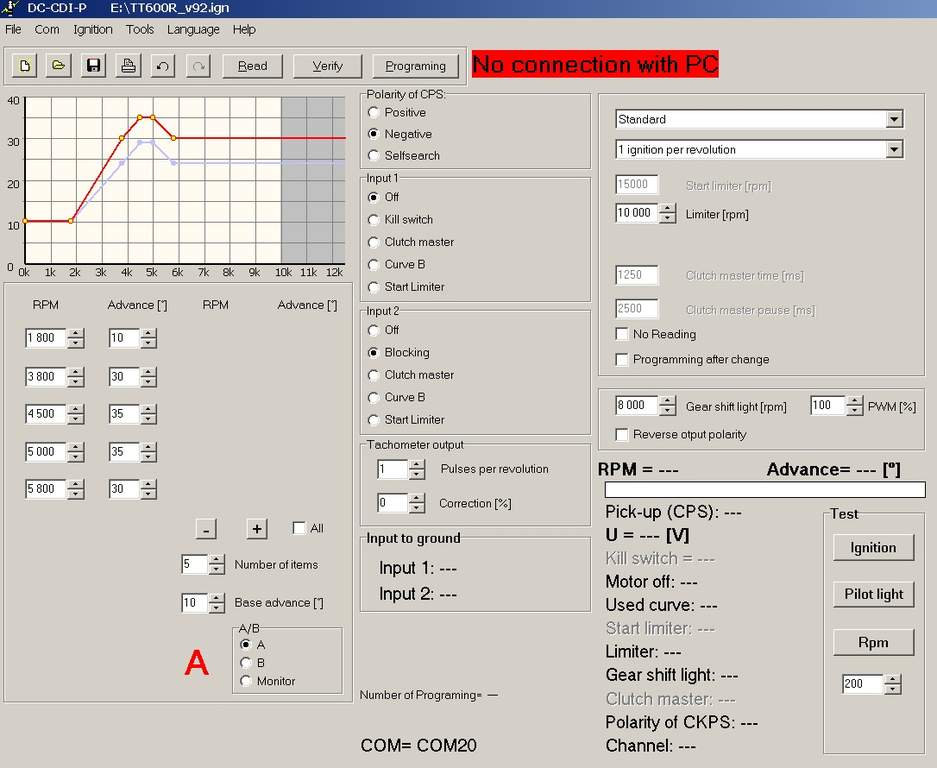

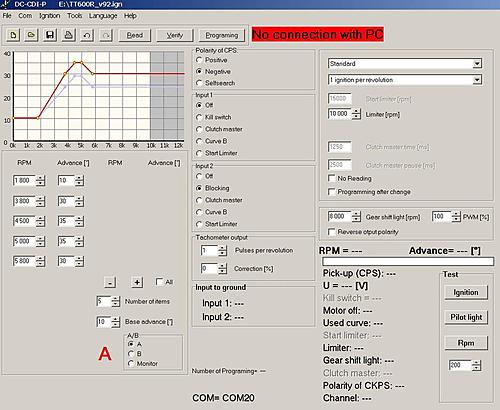

You can see the curve as attachment
Last edited by Lates; 27 Jun 2013 at 08:32.
Reason: Changed better quality picture
|
