  #76
Old 13 Sep 2013
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
I have the shock off now and i found out that the top of shock is 35mm, i see yours is 24,6 + 10mm walls= 34,6 is this correct Jens?. You dont need the long cut on the top, but it cant be suare, a little off on the side to engine side.
Last edited by xtrock; 14 Sep 2013 at 10:27.
Reply With Quote
  #77
Old 14 Sep 2013
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Seems right yes, tried to meassure the best I could
Reply With Quote
  #78
Old 14 Sep 2013
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Ok, to fit the ones that is sold from ebay Germany you will have to fit a two shims 2mm on the top if you want to get it in center and not moving. I grinded the end of the top in front 1mm and its ok straight down to the fitting bottom. Wilbers can make special heights and adjustable if i understood them correctly. Jens what is the biggest change from stock? Its pretty expnsive, here about 600,- Pound
Reply With Quote
  #79
Old 15 Sep 2013
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
My raiser-thing is one of the ebay ones. Just so were all clear on that.

Mine is one of the cheaper wilbers solution, no external reservoir ect. Theres only rebound adjustement, and ofcourse the preload on the spring to adjust.

Compared to my fully functional stock shock, not that much of a difference. But I really like it
Reply With Quote
  #80
Old 16 Sep 2013
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
This is how the bike looks with the raiser, dont think you wont to get it any higher. If you are approx 180 this is perfect, you get flat foot on the ground.



Uploaded with ImageShack.us
Reply With Quote
  #81
Old 19 Dec 2014
Registered Users
New on the HUBB

Join Date: Dec 2014
Location: Australia
Posts: 8
How good does it look, my bike is exactly the same and I will be doing this suspension adjustment, and tips in the end?
Reply With Quote
  #82
Old 20 Dec 2014
Registered Users
New on the HUBB

Join Date: Dec 2014
Location: Australia
Posts: 8
Hi Mr xtrocks,

How did the tail riser block thingy you made in this thread work after it had been on your bike for a while?
Reply With Quote
  #83
Old 21 Dec 2014
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Quote:
Originally Posted by luketratts View Post
Hi Mr xtrocks,

How did the tail riser block thingy you made in this thread work after it had been on your bike for a while?
Hi, its been great. Have one shock with welded raise of 1,5cm and the raiser that gives 2cm. I think bike looks much better with this on.
Reply With Quote
  #84
Old 21 Dec 2014
Registered Users
New on the HUBB

Join Date: Dec 2014
Location: Australia
Posts: 8
Quote:
Originally Posted by xtrock View Post
Hi, its been great. Have one shock with welded raise of 1,5cm and the raiser that gives 2cm. I think bike looks much better with this on.
It looks like the welded extension is probably an easier adjustment...just to clarify, do you have both the block and the extension on the one shock, so a total of 35mm increase...

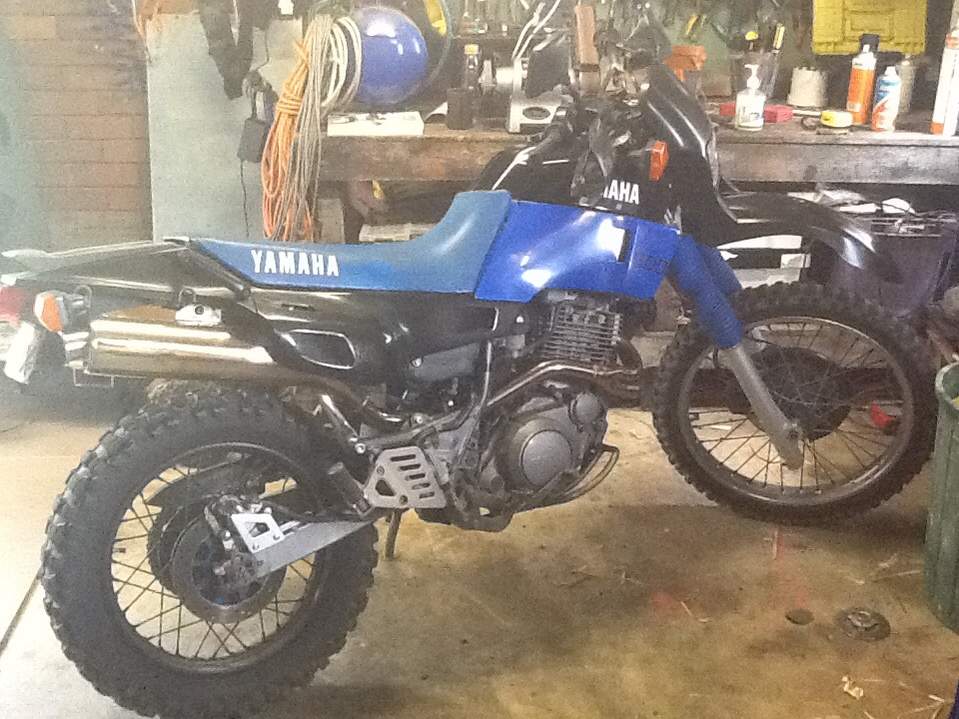

Photo of my wheelie machine attached

Thanks for the advice, most appreciated.XT600 Rear Suspension-image.jpg
Reply With Quote
  #85
Old 21 Dec 2014
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Quote:
Originally Posted by luketratts View Post
It looks like the welded extension is probably an easier adjustment...just to clarify, do you have both the block and the extension on the one shock, so a total of 35mm increase...

Photo of my wheelie machine attached

Thanks for the advice, most appreciated.Attachment 14366
No only one, recomend use of the one on the top, much easier. If you raise more than 2cm on shock it will be to much. Nice color on the bike And welcome to the the site.
Reply With Quote
  #86
Old 12 Mar 2015
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: scotland
Posts: 101
Quote:
Originally Posted by xtrock View Post
Here you go:

Uploaded with ImageShack.us

Here is pict of bike height:

Uploaded with ImageShack.us
xtrock... love the height of the bike,,, thats exactly what am looking for...
Reply With Quote
  #87
Old 12 Mar 2015
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Thanks, go for the raiser that i have in a picture earlier then you get the same height.
Reply With Quote
  #88
Old 14 Mar 2015
Registered Users
HUBB regular

Join Date: Oct 2007
Location: SE england
Posts: 96
With the increased ride height but not increased suspension travel, does this stop the brake caliper denting exhaust silencers ?
Reply With Quote
  #89
Old 14 Mar 2015
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Quote:
Originally Posted by xtorange View Post
With the increased ride height but not increased suspension travel, does this stop the brake caliper denting exhaust silencers ?
Dont understand how the caliper can dent exhaust?
Reply With Quote
  #90
Old 31 Mar 2015
Registered Users
HUBB regular

Join Date: Oct 2013
Posts: 77
1993 XTe
Aftermarket shock that isn't $300-$400?
Any ideas what might work?
16K miles and getting a bit boggy.
Reply With Quote
