  #16
Old 19 Jan 2010
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
not really lol... forgot about kedo

still 229euros damn... =|
thing is.. I don't know if that'll even fit...

I moved the top shock mounting point 6.5cm center-to-center hole further back to balance the height gain of my new front 02 YZ250F forks and to fit my Mikuni BST40 single carb conversion...

but since I had to have the mount point welded 1.5cm further back (it was supposed to be 5cm only) because the mount screw wouldn't clear the frame enough to fit and secure the shock..

That said.. I guess I'll have to simulate that lower link..

Can you or anyone let me know the lenght center of hole-to-hole so I can simulate it?!



Vando
Reply With Quote
  #17
Old 19 Jan 2010
Registered Users
HUBB regular

Join Date: May 2006
Location: Cambs. UK
Posts: 29
Heres a link to a thread I posted a while back
http://www.horizonsunlimited.com/hub...-shortys-46263
First to collect from St.Neots, Cambs. can have it if it's any use.
Reply With Quote
  #18
Old 23 Jan 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2005
Location: Birmingham,England
Posts: 140
Kedo Lowering Kit

Hi I have a brand new unused Kedo lowering kit. The kit includes a new lowering y link, two tubes to lower the front and an insert for the side stand so you can adjust its length to suit the lowered bike. If your interested I am open to offers.

Jimmy
Reply With Quote
  #19
Old 23 Jan 2010
palace15's Avatar
Registered Users
Veteran HUBBer

Join Date: Feb 2005
Location: LONDONISTAN, England
Posts: 1,034
This tread was started in 2006, the girl is probably an 'EX' by now!
__________________
'He who laughs last, was too slow to get the joke'
Never confuse the map with the journey.
Reply With Quote
  #20
Old 24 Jan 2010
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
Quote:
Originally Posted by jimmy46 View Post
Hi I have a brand new unused Kedo lowering kit. The kit includes a new lowering y link, two tubes to lower the front and an insert for the side stand so you can adjust its length to suit the lowered bike. If your interested I am open to offers.

Jimmy
Hi!

jimmy46
Could you take some measures of the link and give them to me? some pictures would help to..

In the Easter I'm heading back to my homeland island where I got my XT and if you can help me with the measures and if you still have the link I'll make you an offer!

I can't make the offer right now because I don't know if with the shock mod I made the link will actually fit...


dave ede....LOL

Vando
Reply With Quote
  #21
Old 24 Jan 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2005
Location: Birmingham,England
Posts: 140
Lowering Kit XT600 35mm

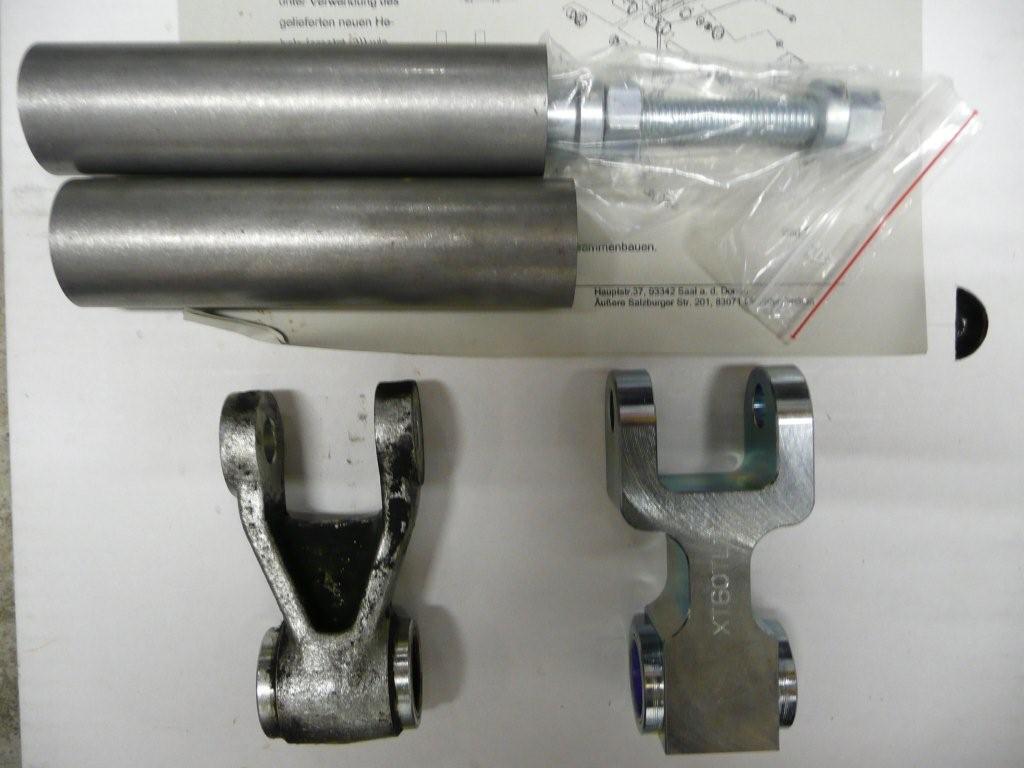

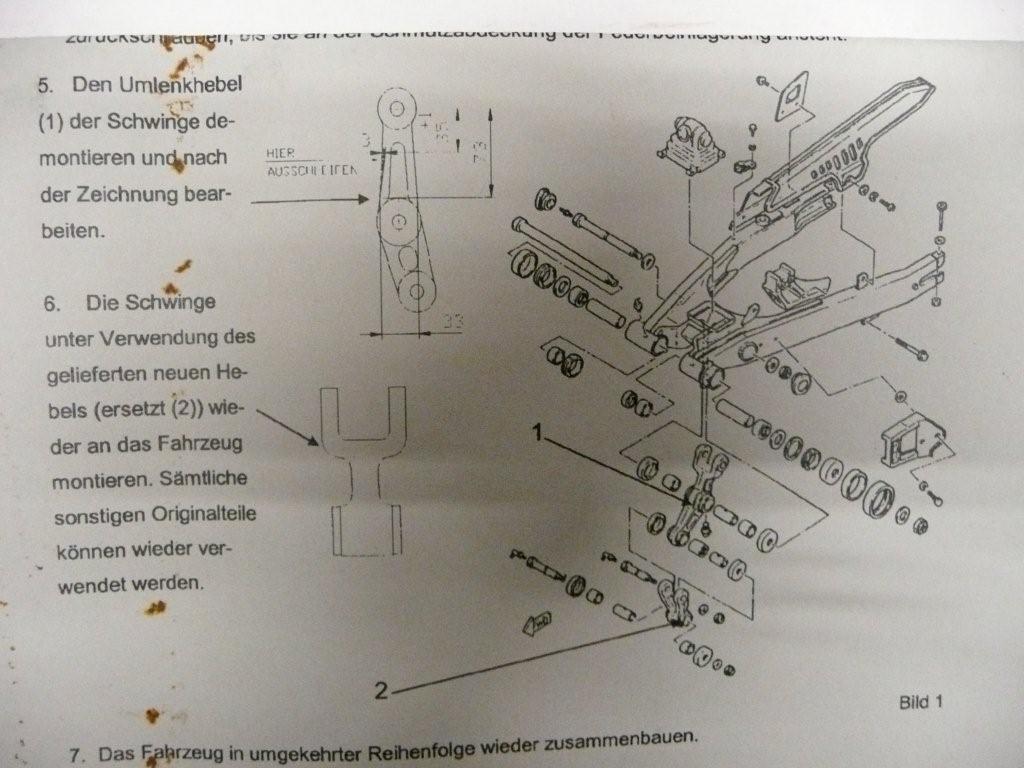

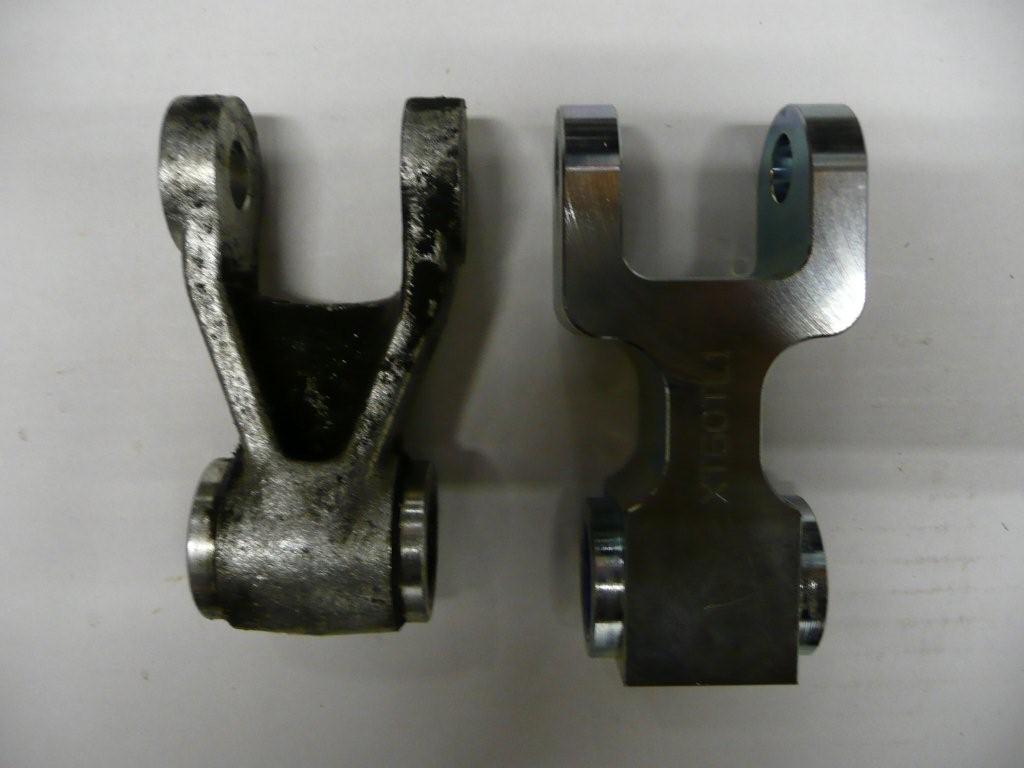

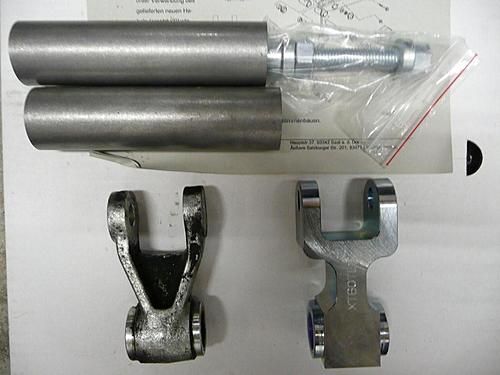

Hmm never posted pics before hope this works, the oily one on the left is the Yamaha original the shiny longer one is the Kedo part. 2nd pic includes the tubes for front forks and the side stand left right threaded insert. Last is the box with Kedo part number, all original instructions and diagrams included.

Jimmy
Attached Thumbnails
XT600E to tall for a 5'8 Female ??-p1000590.jpg

XT600E to tall for a 5'8 Female ??-p1000592.jpg

XT600E to tall for a 5'8 Female ??-p1000593.jpg

XT600E to tall for a 5'8 Female ??-p1000591.jpg


Last edited by jimmy46; 24 Jan 2010 at 19:31.
Reply With Quote
  #22
Old 26 Jan 2010
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
Hi!

Thanks for the pictures Jimmy!

the tubes for the front forks.. how does that work?!
I'm not able to imagine how it works lol...

So the Kedo part is just 17,5mm longer than the XT's stock one.
I have to say, It 'looks' much stronger than the OEM piece.


I do have one question... If I make my rear shock stiffer, will that make the shock go a tiny bit smaller from eye-to-eye?

It is currently set to the minimum as possible....
How much can the difference be?


Vando
Reply With Quote
  #23
Old 28 Jan 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2005
Location: Birmingham,England
Posts: 140
Rear Shock

Hi I am not sure what you mean by making the shock stiffer...If you make the spring shorter ie remove the spring and chop off a section of the spring you will lower the ride height ( you will have to work out the ratio, it will not be inch for inch. You could raise the spring pan and see how much a quarter of an inch raise does to the ride height. You can then work out how much to chop off the spring. As to the damping, never run the damper any stiffer than you need, you will put higher loads on the seals the stiffer you go, run it as soft as you can as long as you are not bottoming out, bottoming out puts extreme loads on the components and can make the bike leap around.

Lowering kit is still for sale by the way...
Reply With Quote
  #24
Old 28 Jan 2010
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
increase the stock rear shock preload =)
Reply With Quote
  #25
Old 28 Jan 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2005
Location: Birmingham,England
Posts: 140
Increase the pre load

If you increase the pre load ( compress the spring) you will shorten the springs static length...but all that will happen then is when you mount the bike it will not drop as much when you put your weight on the bike. If you think about the spring in isolation..it will compress a certain amount for a given weight, if you start with the spring free and unloaded and apply yoir weight it will compress until it has a resistance equal to your weight, it will shorten to a new length. If you started again but with the spring pre compressed, it will still only compress to the length it was in the previous test. Having too much pre load will give little sag in the bike and a harder ride since the spring is now only working in the range pre compress load to full load. Sorry I porobably am not making it very clear..but if you read advice on pre load etc it always offers a sag amount...the change in ride height from the unloaded state ie the back wheel touching the ground without any weight on and the ride height with the back wheel on the ground and supporting the bikes weight. Clear as mud I hope lol
Reply With Quote
  #26
Old 20 Feb 2010
Registered Users
New on the HUBB

Join Date: Feb 2010
Location: Leeds
Posts: 7
XT lowering kit

Hi Jimmy

just joined the forum - is the lowering kit still for sale ?:confused1:
Reply With Quote
  #27
Old 20 Feb 2010
Registered Users
Veteran HUBBer

Join Date: Dec 2005
Location: Birmingham,England
Posts: 140
Kedo kit

Hi Yes the kit is still for sale.

Thanks for asking Jimmy
Reply With Quote
  #28
Old 21 Feb 2010
Registered Users
New on the HUBB

Join Date: Feb 2010
Location: Leeds
Posts: 7
Hi Again Jimmy

could you send me a PM with details of how I can contact you please
Reply With Quote
