A few fixes on an RTW trip.

KTM 690 Teaspoon shift lever fix: In Turkey my shift lever spring broke. I noticed a teaspoon on the ground and it worked for the next 1000 km until I could replace it in Georgia.



KTM 690 Automatic decompression slop fix: In Russia, the screw that holds weight that activates the automatic decompression came loose. This in turn widened out the hole in the weight so there was slop. It would pull on the shaft and make a small copper clip fail. Using a few different files, I "machined" a washer to fit inside the weight that was just thick enough to take the slop out without hindering the movement. This lasted 8,000 km to Sakhalin island where I replaced the weight with a new piece.



BMW 650 chain adjustment fix.. with KTM wrench: On the start of the BAM, my friend's BMW 650 Dakar broke the piece that allows the rear tire/chain tension to be adjusted. The best thing we could fix it with was the KTM wrench I had. This lasted 8000 km to Vladivostock. From there, the bike was shipped back to Europe and he replaced the wrench with a stock piece.



Regulator Rectifier from 95 kawasaki in KTM 690: In Tajikistan, my RR went out on my 690. The only replacement I could find was from a 95 Kawasaki street bike. It even bolted up with longer bolts. In a situation like this, any 3 wire input RR will work. It was used and cost me $40. I still have this RR in my bike 30,000 km later. I have a spare but haven't felt the need to fix what is not broken.



Suspension bolt fix on KTM 690: In Spain, we noticed my suspension was buggered from the lower bolt coming out of the lower shock point. On the 690, the top bolt is the same so we pulled that out and went looking for a replacement. We found a bolt that had the right threads and almost the right collar. With a think washer and a hacksaw, we had a bolt that matched. Since the head was to big to fit on the lower part, this was installed on the top. The top bolt is still installed 50,000 km later. The lower suspension links were replaced just in case.



Reply With Quote
  #2
Old 18 Dec 2013
Registered Users
Veteran HUBBer

Join Date: Apr 2012
Location: Europe currently
Posts: 213
Burnt out Stator

My bike wasn't charging in Bangkok last week. Turns out I had a burnt coil on the stator. There are 18 coils. 6 per phase. I simply removed the coil that had the fault to "ground" and soldered the leads. Bike now charging at 14.1 volts.


Not my pic, but this is what it looked like when I pulled it out.



Reply With Quote
  #3
Old 18 Dec 2013
Lifetime Member
HUBB regular

Join Date: Sep 2007
Location: Nanaimo BC Canada
Posts: 71
Excellent information. Thank you for sharing.

What did you use to coat the wire on the stator?

Dirtpig
Reply With Quote
  #4
Old 18 Dec 2013
Registered Users
HUBB regular

Join Date: Nov 2011
Location: San Diego, CA, USA
Posts: 92
Great info!

I take it by "Bodger Fix," you mean "McGyvering."

Good post!
Reply With Quote
  #5
Old 19 Dec 2013
Registered Users
Veteran HUBBer

Join Date: Apr 2005
Location: Oxford UK
Posts: 2,116
Quote:
Originally Posted by Danny Diego View Post
Great info!

I take it by "Bodger Fix," you mean "McGyvering."

Good post!

McWhat?

Good post from Snoah though - another one for the list
Reply With Quote
  #6
Old 19 Dec 2013
Registered Users
Veteran HUBBer

Join Date: Apr 2012
Location: Europe currently
Posts: 213
Quote:
Originally Posted by Dirtpig View Post
Excellent information. Thank you for sharing.

What did you use to coat the wire on the stator?

Dirtpig
I put gasket maker over the wire after the solder cooled.
Reply With Quote
  #7
Old 25 Feb 2014
Registered Users
Veteran HUBBer

Join Date: Apr 2012
Location: Europe currently
Posts: 213
When your skid plate falls off...

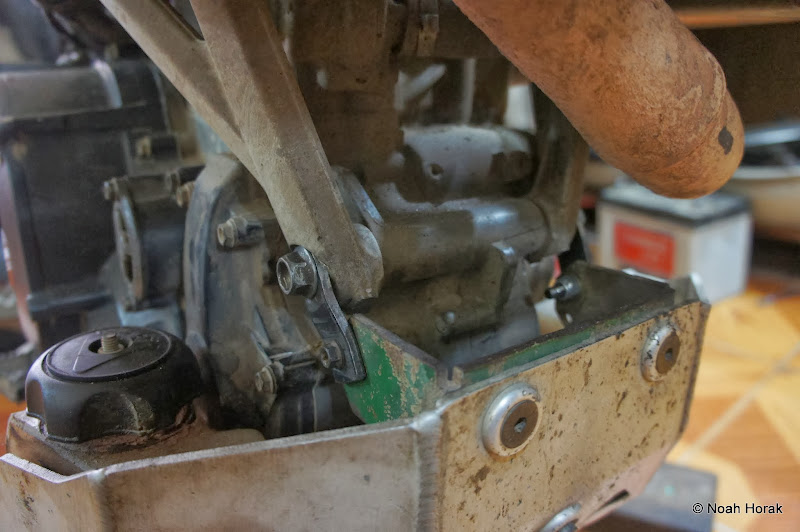

Riding into Cambodia, I heard a loud bang-skid sound. My skid plate fell off because the aluminum mounting bracket broke. With access to a drill press, hacksaw, grinder and a vice.. I made these some nice brackets to fix her.









I couldn't find a spacer that was 10mm ID and 20mm OD but they had a shitload of washers that were correct size. So a 120mm long bolt, 5 washers on each side and I was back in business. The distance from the center line of the big bolt to center line of the small bolt is about 32mm... I think
