National Luna Battery Connection Help

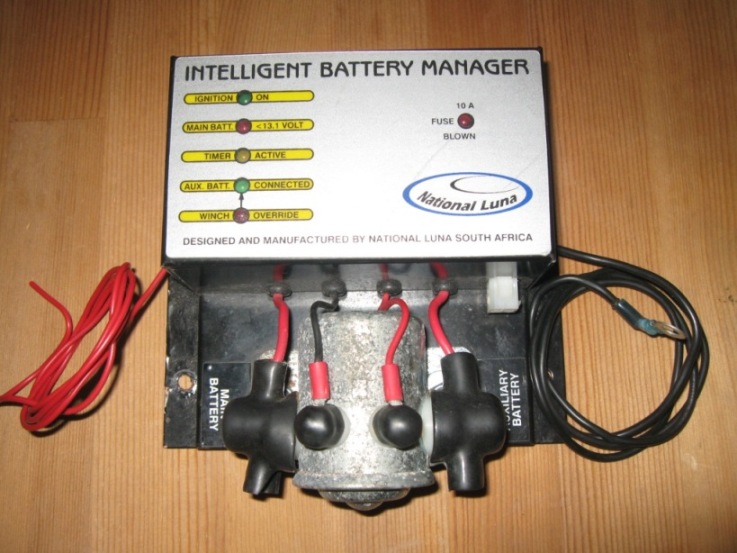

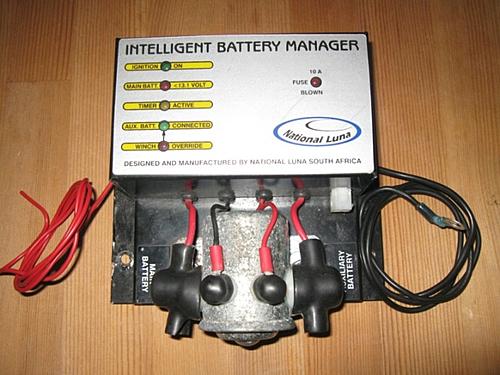

Late last year I bought this 2nd hand National Luna Battery Management System.

National Luna Battery Connection Help-national-luna.jpg

I've given the Auto Electrician (Mark) the following document to help him with the installation as no instructions came with the BMS. Its for a slightly different model...

http://www.nationalluna.com/Datashee...e%20manual.pdf

Am I right in thinking that the +ve on the left of the BMS (with black plastic cover) goes to the +ve on the Main Battery, and the +ve on the right (with black plastic cover) goes to the +ve on the Aux Battery.

Does the -ve of the Aux Battery itself go to the -ve of the Main Battery, which then goes back to the BMS via the Black Cable (coiled up) on the far Right Hand side?

What would the Red cable (coiled up on the far left hand side) be used for ?

Thanks in Advance,
Rich
__________________
Rich & Zowi
http://www.zo2oz.com
Reply With Quote
  #2
Old 21 Mar 2010
Registered Users
Veteran HUBBer

Join Date: Oct 2003
Location: Danmark
Posts: 346
Its obvious that the manual is for another model than yours, so I wonder if you have the same buttons as in the manual, if not, then the red wire could be the "timer override" but its not mentioned anywhere.

OR it could be an ignition connection, to switch off all the lamps and displays when stopped.

OR someone did his own mod the kit.

There is however both tlf number and e-mail address in the manual, so talk to the guys.

You are right about the rest of the wires as sketched by you.

PS sounds as a nice piece of kit and well designed (apart from the missing wire in the manual)
__________________
Poul
May you enjoy peace and good health !
Reply With Quote
  #3
Old 21 Mar 2010
Registered Users
Veteran HUBBer

Join Date: Feb 2009
Location: Bristol UK
Posts: 454
Quote:
Originally Posted by rbarton7 View Post
Late last year I bought this 2nd hand National Luna Battery Management System.

Attachment 3109

I've given the Auto Electrician (Mark) the following document to help him with the installation as no instructions came with the BMS. Its for a slightly different model...

http://www.nationalluna.com/Datashee...e%20manual.pdf

Am I right in thinking that the +ve on the left of the BMS (with black plastic cover) goes to the +ve on the Main Battery, and the +ve on the right (with black plastic cover) goes to the +ve on the Aux Battery.

Does the -ve of the Aux Battery itself go to the -ve of the Main Battery, which then goes back to the BMS via the Black Cable (coiled up) on the far Right Hand side?

What would the Red cable (coiled up on the far left hand side) be used for ?

Thanks in Advance,
Rich
Drop NL an email, they are reportedly a very good "customer support" company. No doubt they will have older instructions on file somewhere that they could PDF you.

what you have suggested sounds correct, but I would get a set of instructions to clarify anything.

G
__________________
Land Rover D90
www.Siroccoverland.com | Follow us on Facebook
Reply With Quote
  #4
Old 22 Mar 2010
Gold Member
HUBB regular

Join Date: Mar 2008
Location: Southport
Posts: 33
Thanks for the replies.... I've emailed National Luna and am hoping that they can help.

Cheers,
Rich
__________________
Rich & Zowi
http://www.zo2oz.com
Reply With Quote
  #5
Old 1 Apr 2010
Registered Users
New on the HUBB

Join Date: Oct 2007
Location: uk
Posts: 17
I,m fairly sure that wire goes to your ignition switch. I know I have a couple of pics somewhere that show the wiring diagrams etc I will post them up for you in a short while.

Gaz
Reply With Quote
  #6
Old 1 Apr 2010
Registered Users
New on the HUBB

Join Date: Oct 2007
Location: uk
Posts: 17
Here they are







Gaz
Reply With Quote
  #7
Old 1 Apr 2010
Gold Member
HUBB regular

Join Date: Mar 2008
Location: Southport
Posts: 33
Thanks for the Pics - it looks like you've confirmed that it is an ignition wire.

I didnt hear back from National Luna
__________________
Rich & Zowi
http://www.zo2oz.com
Reply With Quote
  #8
Old 7 Apr 2010
Gold Member
HUBB regular

Join Date: Mar 2008
Location: Southport
Posts: 33
I just wanted to post that National Luna have got back to me to confirm that the red wire is the Ignition Wire.

Many thanks to fellow Hubb Posters and thanks to National Luna
__________________
Rich & Zowi
http://www.zo2oz.com
Reply With Quote
  #9
Old 7 Apr 2010
Registered Users
Veteran HUBBer

Join Date: Apr 2001
Location: Leicestershire,UK, or in my Iveco Daily 4x4
Posts: 474
They are a great piece of kit, had one in my 101 (its still there and running to my knowledge) and that was installed in '02
__________________
Rich

Iveco Turbo Daily 4x4 40-10
Ex Owner LR101 300Tdi Ambi 'Tiggurr'
Reply With Quote
