Disco rear door cooking tray/cabinet
Hi,

leaving for Morocco again in about 3 months.
Trying to improve the Discovery, this time with a rear door mounted kitchen tray.
Does anyone have pics of one of these handy constructions?
In view of cashflow and such, I plan to make one myself.

Thanks for posting,

Joey
__________________
__________________
Landrover Discovery 2 Td5 with a Garmin 276c and a great co-driveress
Reply With Quote
  #2
Old 25 Jan 2011
Registered Users
Veteran HUBBer

Join Date: Oct 2007
Location: Bridgend, South wales
Posts: 108
disco table
Hi Joey
In work at mo and dont have pics of mine to hand
anyhow check the thread here : Fold down table for rear door? - Page 3 - Expedition Portal Forum
you should be able to see the photos without being logged in


regards

gren
Reply With Quote
  #3
Old 26 Jan 2011
Registered Users
Veteran HUBBer

Join Date: Sep 2009
Posts: 116
You could always cook out of the back of your disco (less wind). The disco already has a table (back bumper ;-)
Last edited by Maximus; 29 Jan 2011 at 00:05.
Reply With Quote
  #4
Old 26 Jan 2011
Registered Users
Veteran HUBBer

Join Date: Oct 2007
Location: Bridgend, South wales
Posts: 108
I dont like the idea of cooking inside a vehicle since i watched a mate kick over a coleman sportster stove while he was sitting between it and the door.. Oh how i laughed

if that was my disco, knowing my luck the stove would flare and set fire to the stuff in the net above or the rising heat would melt my favorite fleece or other combustable stored there.

not having a go .. just have experience(nice soft skin on my cheeks & no need to shave for 5 months) of the after effects of a brain fart when gas welding.

regards all
Reply With Quote
  #5
Old 7 Nov 2011
Registered Users
HUBB regular

Join Date: Jan 2009
Location: Netherlands
Posts: 52
The result of some afternoon bodging with leftovers ....
Attached Thumbnails

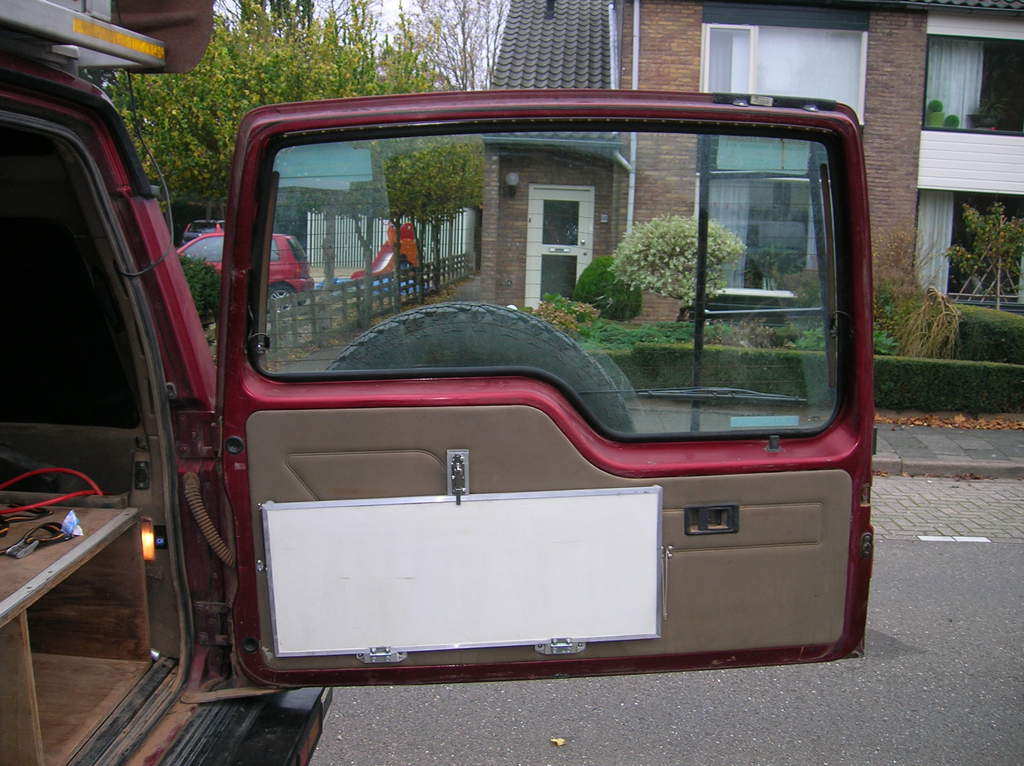

Disco rear door cooking tray/cabinet-dscn0068.jpg

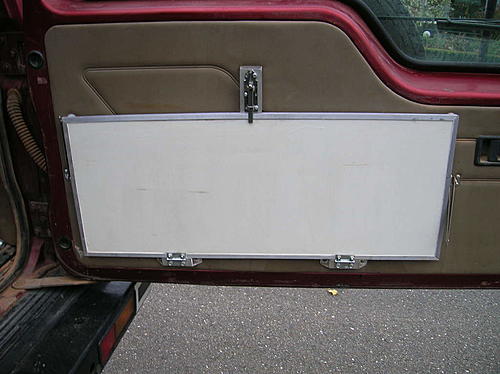

Disco rear door cooking tray/cabinet-dscn0069.jpg

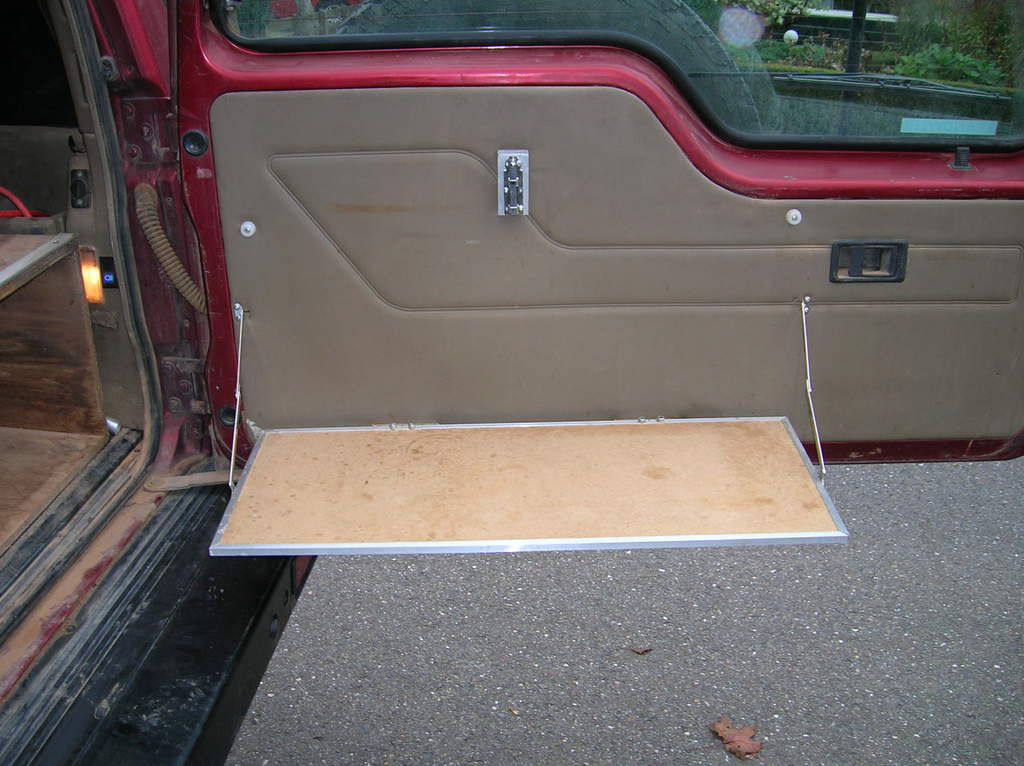

Disco rear door cooking tray/cabinet-dscn0070.jpg

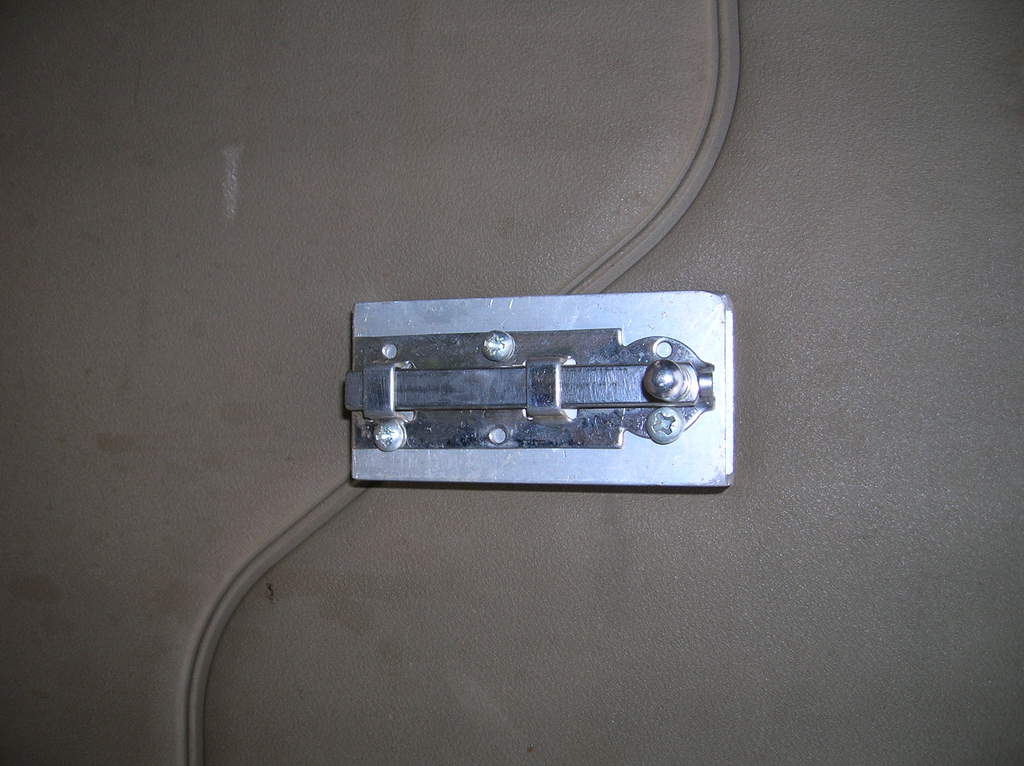

Disco rear door cooking tray/cabinet-dscn0071.jpg

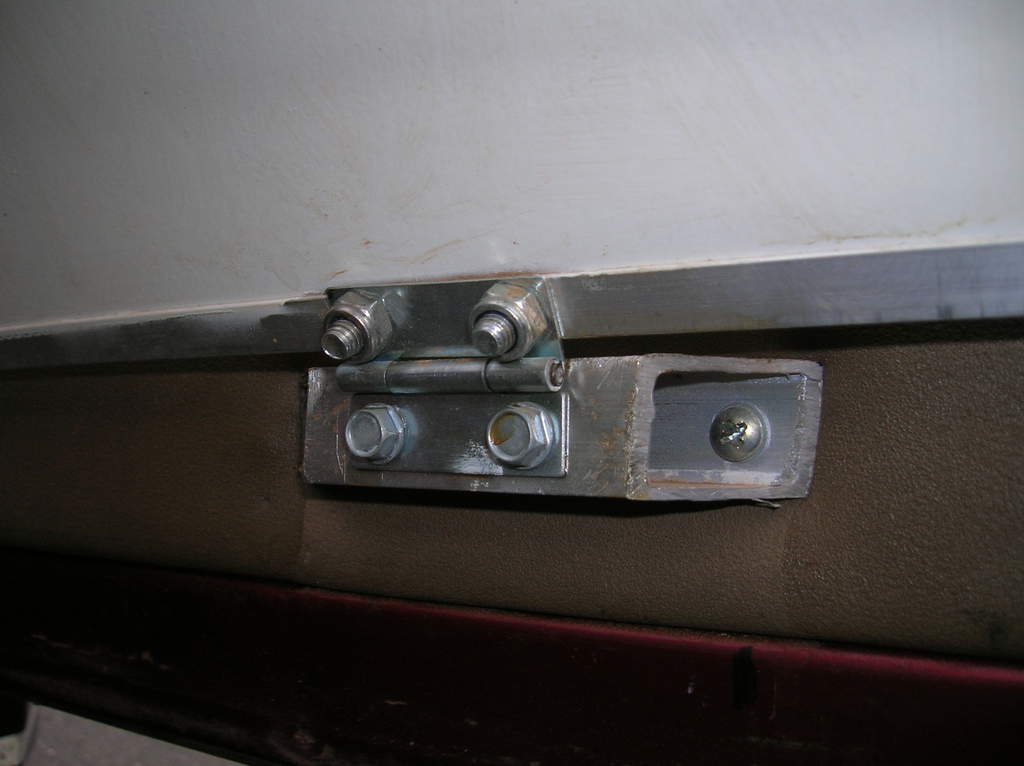

Disco rear door cooking tray/cabinet-dscn0072.jpg

__________________
Landrover Discovery 2 Td5 with a Garmin 276c and a great co-driveress
Reply With Quote
  #6
Old 7 Nov 2011
Registered Users
HUBB regular

Join Date: Jan 2009
Location: Netherlands
Posts: 52

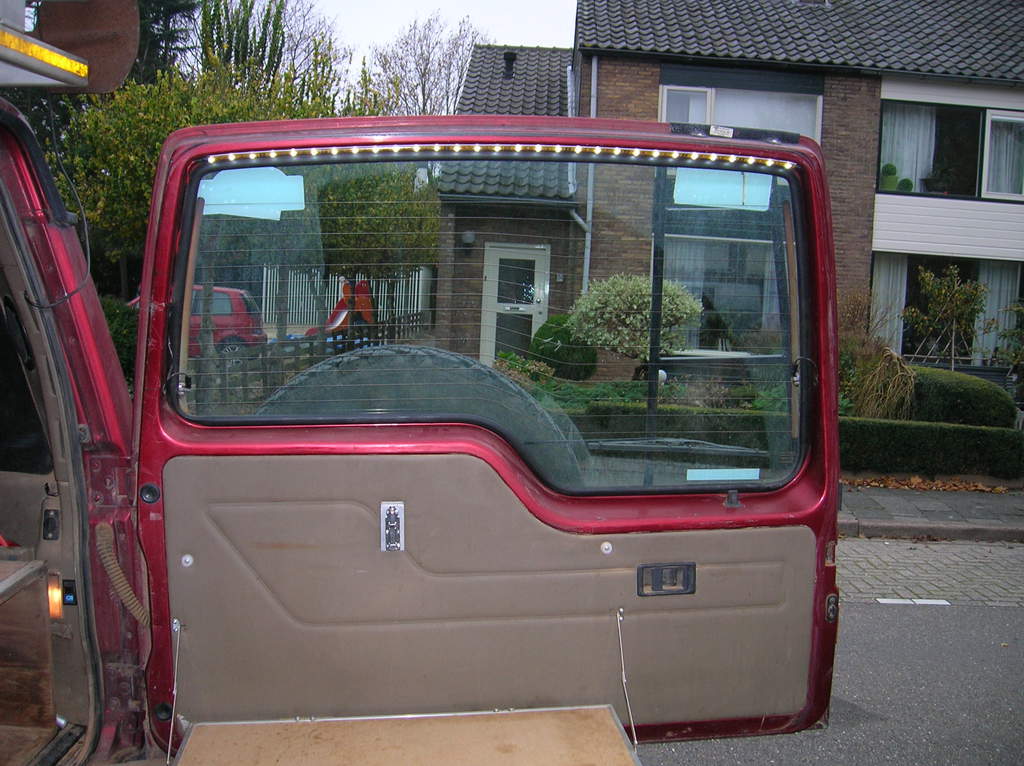

Also added an LED lightstrip to the backdoor, works a treat !
Attached Thumbnails
Disco rear door cooking tray/cabinet-dscn0073.jpg

__________________
Landrover Discovery 2 Td5 with a Garmin 276c and a great co-driveress
Reply With Quote
  #7
Old 7 Jan 2012
Registered Users
New on the HUBB

Join Date: Jan 2011
Location: UK
Posts: 3
No pix with me at the moment, but I'll see what I can find. I added two fold-down tables to the back of my D2 (same door as D1). One is higher on the left and the other lower on the right side. I have a storage box on the very bottom left.

The setup works fine for me. The sightly larger right side shelf holds the gas stove and pots can sit on the left. I made a small awning to go over the open area behind when the door is open. If I am camping my RT tent opens over the back. I arranged so the stove is actually fastened to the shelf in use, so chances of it falling off are slim.

My entire rear panel is chequerplated with the table folding up against. Works fine, looks fine.

Check out Landiebox for some ideas. My first shelf is from Mobile Storage Systems but they are a bit difficult to deal with remotely. Probably best to chat to them at a show. The second shelf I had Landiebox make to my specs. Works a treat.
Reply With Quote
  #8
Old 7 Jan 2012
Registered Users
New on the HUBB

Join Date: Jan 2011
Location: UK
Posts: 3

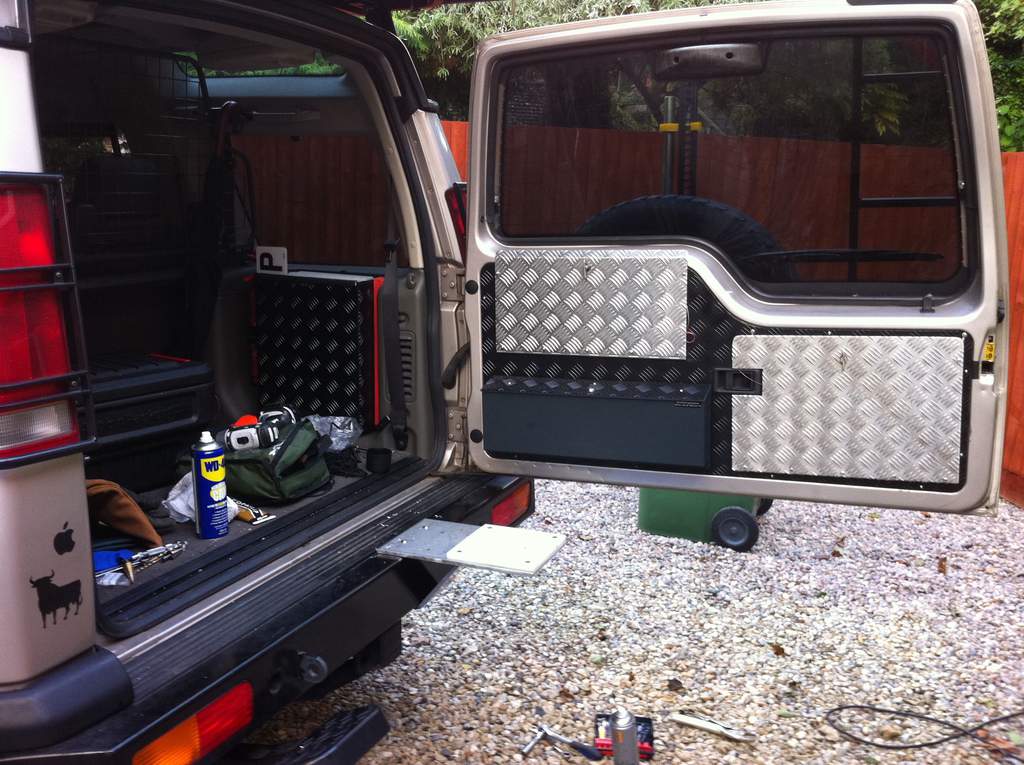

Found a pic
Left shelf MSS, right shelf Landiebox
Attached Thumbnails
Disco rear door cooking tray/cabinet-disco_door.jpg

Reply With Quote
