Iveco Eurocargo ML150 4x4 Expedition Truck Build

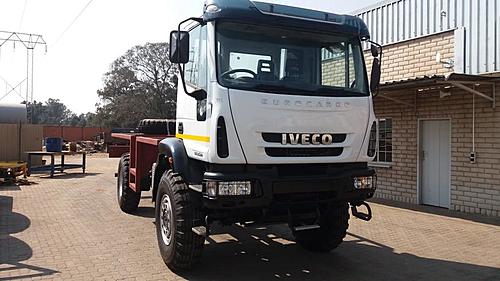

After having built a 2017 Fuso FG6 Camper Truck (currently in the market for sale) and enjoying it around Southern Africa for the last 2 years we are finally ready to upgrade to something bigger for our upcoming round-the-world family tour.

We researched a bunch of chassis cab options for such a build and when buying new nothing can beat the Eurocargo on value for money!

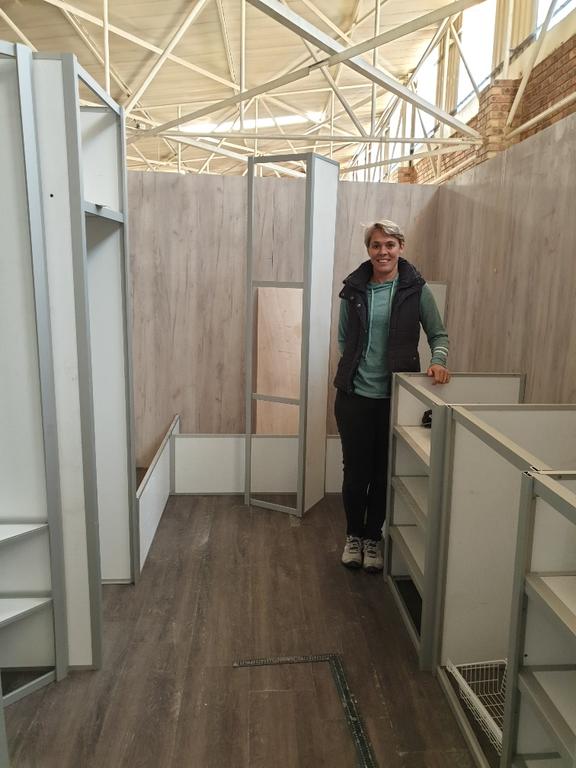

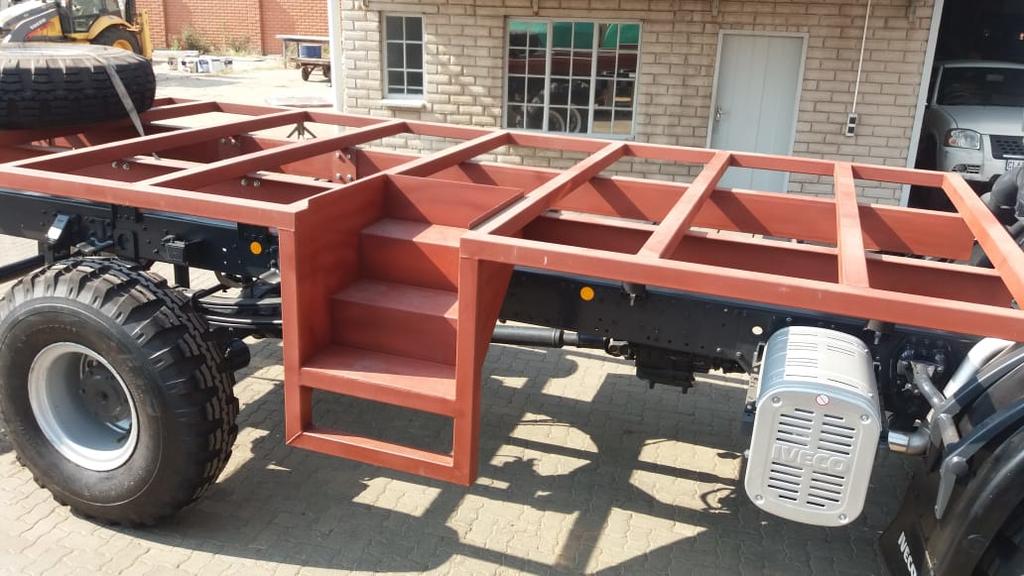

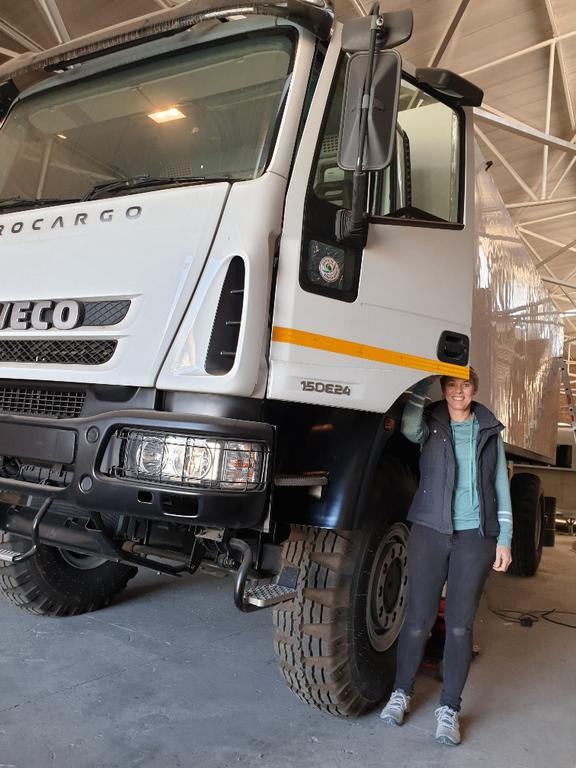

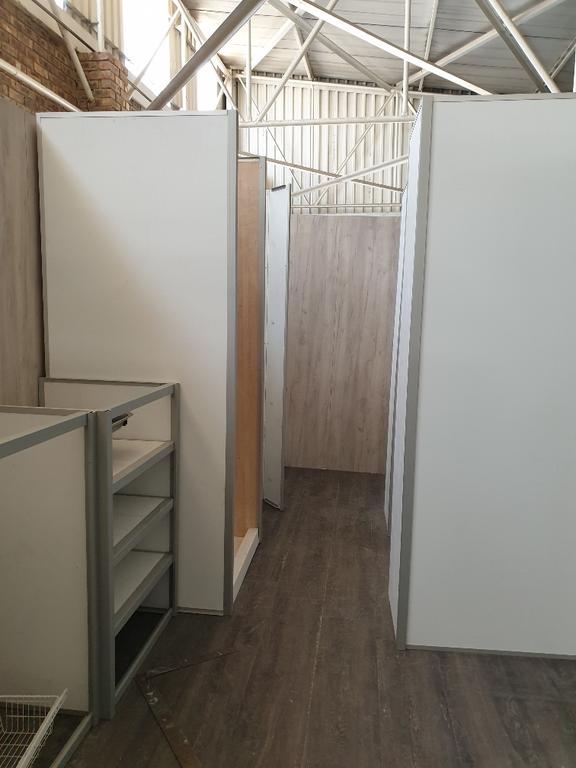

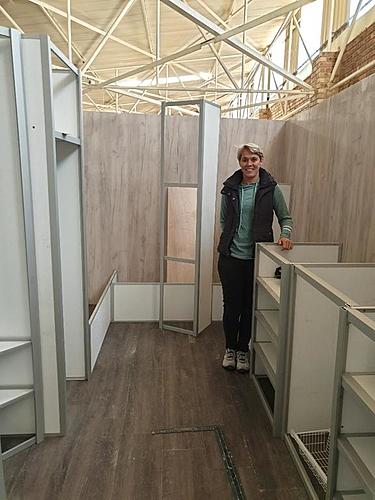

So here are some photos of our build in progress.

Spec will include:

6 Berth interior
* Queen Bed to sleep 2
* Bunk Beds to sleep 2
* Dinette to sleep 2
* Shower cubicle
* Separate WC cubicle
* Fully Equipped Kitchen
* Walk-in-Closet
* Crawl-thru to Cab

Liquids

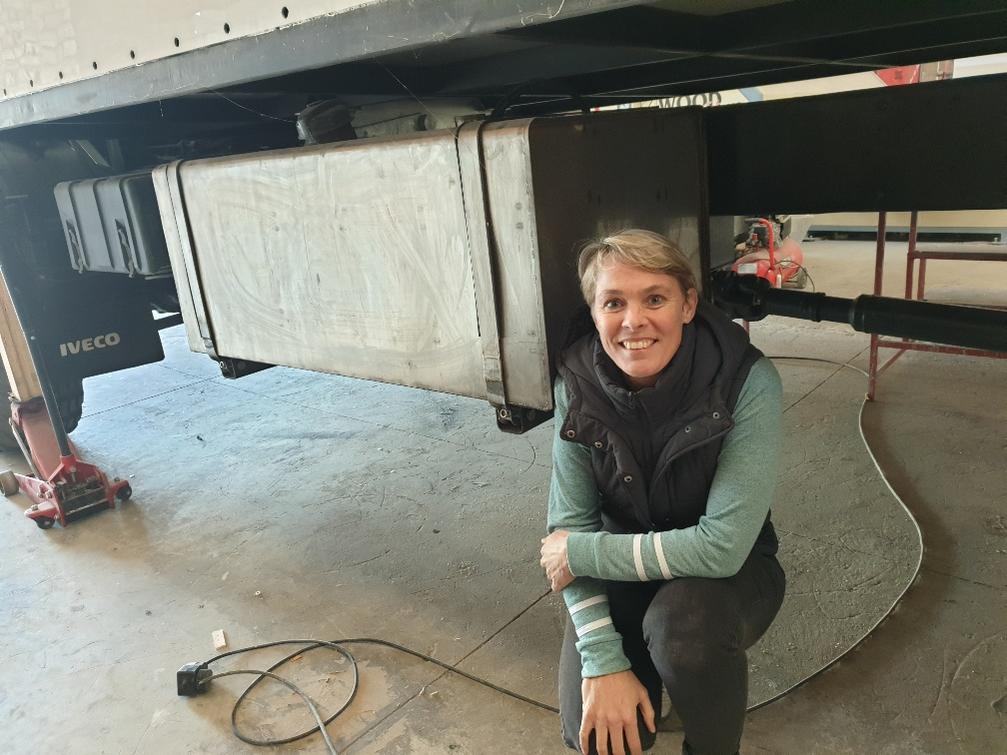

* 500L (132 gal) Diesel
* 700L (185 gal) Water
* 200L (53 gal) Black Water
* 150L (40 gal) Grey Water

Electrical & Appliances
* 7.1kW Super Capacitor with Lithium Batteries and Solar panels.
* Residential Fridge/Freezer
* Washer/Dryer
* Aircon
* Various ceiling fans & vents
* 3Kva silent inverter generator
* CCTV installation to include drive & reverse cameras

Exterior

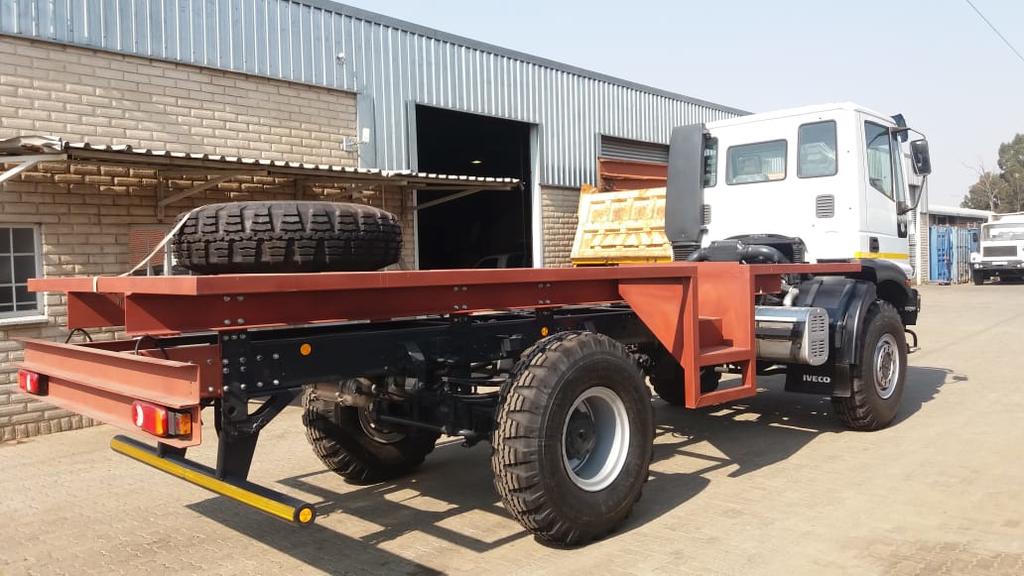

* Chassis was extended by 1100mm between the axles
* Roof Platform (manhole access from int)
* 2x Spare Wheels
* Bullbar with winch
* Rear winch with motorcycle lift
* Exterior Kitchen
* Awning
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20180816-wa0019.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20180816-wa0020.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20180816-wa0021.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190703_123321_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190703_123702_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190703_123730_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190703_124204_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190703_124634_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.

Last edited by Family Friendly 4x4; 7 Aug 2019 at 08:41.
Reply With Quote
  #2
Old 14 Jul 2019
Gold Member
Veteran HUBBer

Join Date: Feb 2011
Location: In Ireland, Working to save for the next trip
Posts: 291

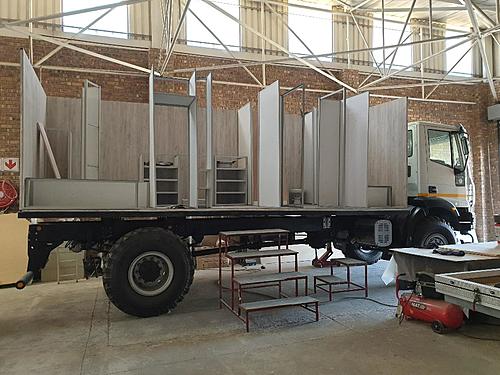

Never seen the inside built before the walls before, but I can see how it makes it easier to get the stuff in.

Looks good!
Reply With Quote
  #3
Old 16 Jul 2019
Registered Users
Veteran HUBBer

Join Date: Nov 2011
Location: Netherlands
Posts: 377
Wow, that is a huge truck. Good luck.
__________________
2011 Overland from Amsterdam to Nepal and back
2018 Overland from Amsterdam to Tokyo via Central Asia and Mongolia
Reply With Quote
  #4
Old 28 Jul 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13
Quote:
Originally Posted by Mervifwdc View Post
Never seen the inside built before the walls before, but I can see how it makes it easier to get the stuff in.

Looks good!

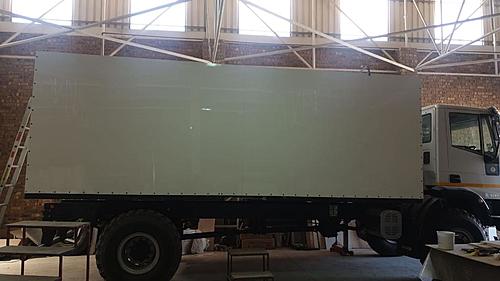

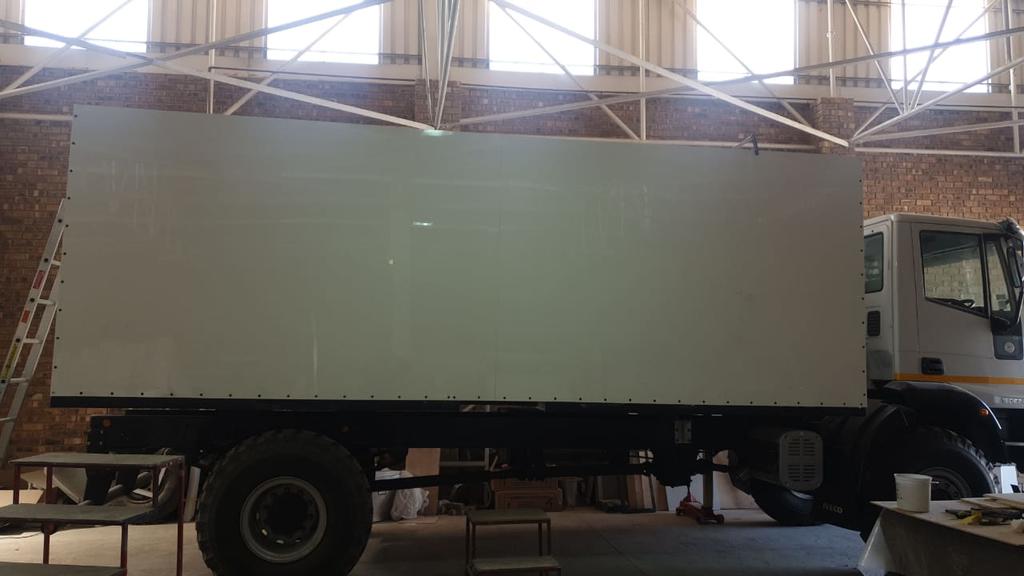

We are doing everything back to front, now we have put the walls up and don't know how to get in! LOL
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-walls.jpg

__________________
Gustav Marais - Boldy going where others have already been.

Last edited by Family Friendly 4x4; 23 Aug 2019 at 11:22.
Reply With Quote
  #5
Old 3 Aug 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

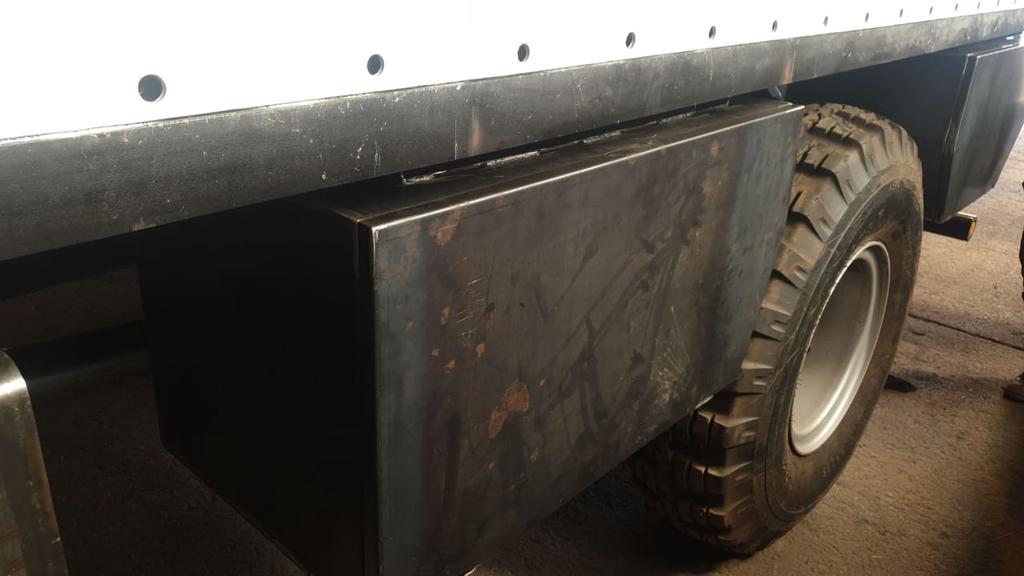

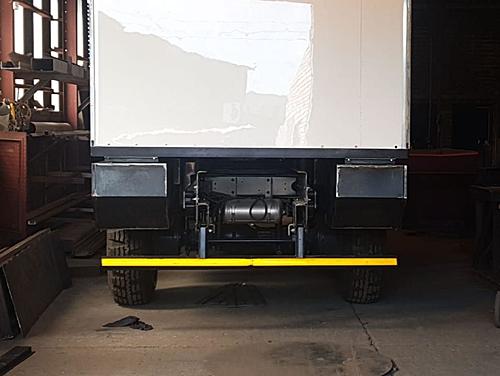

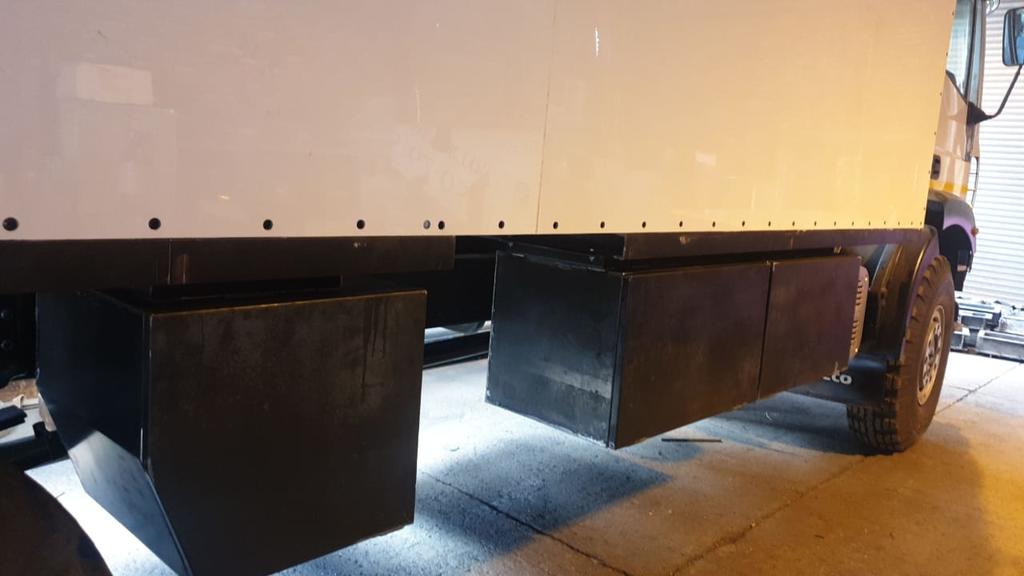

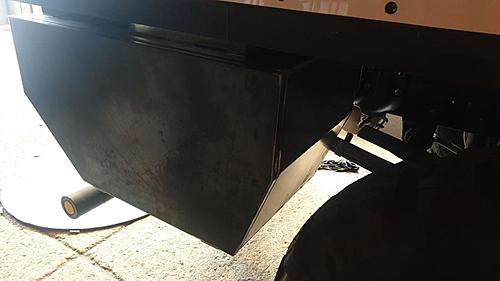

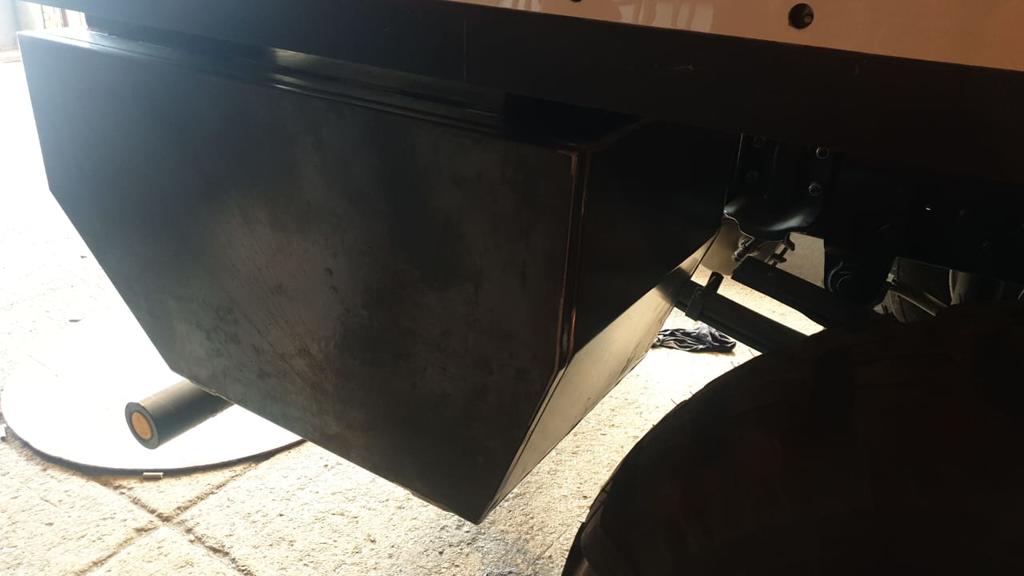

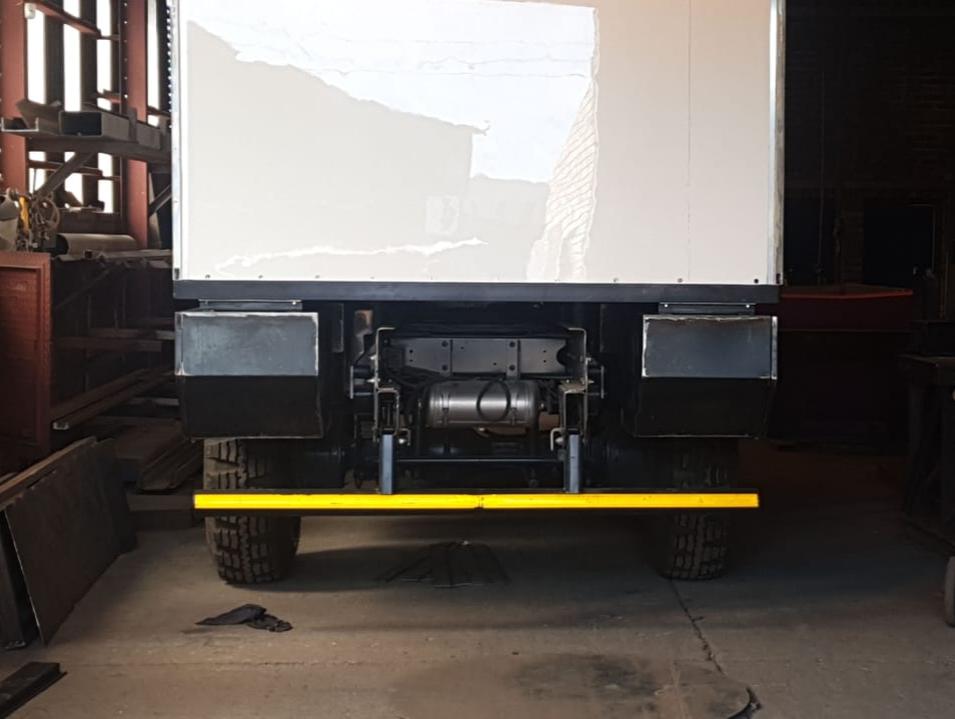

Storage Boxes

Our storage boxes have been manufactured and fitted.

Just got to remove them again for spraying.

The box in the middle will house the outdoor kitchen.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20190802-wa0000.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20190802-wa0002.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-img-20190802-wa0001.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190802_142345.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #6
Old 3 Aug 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

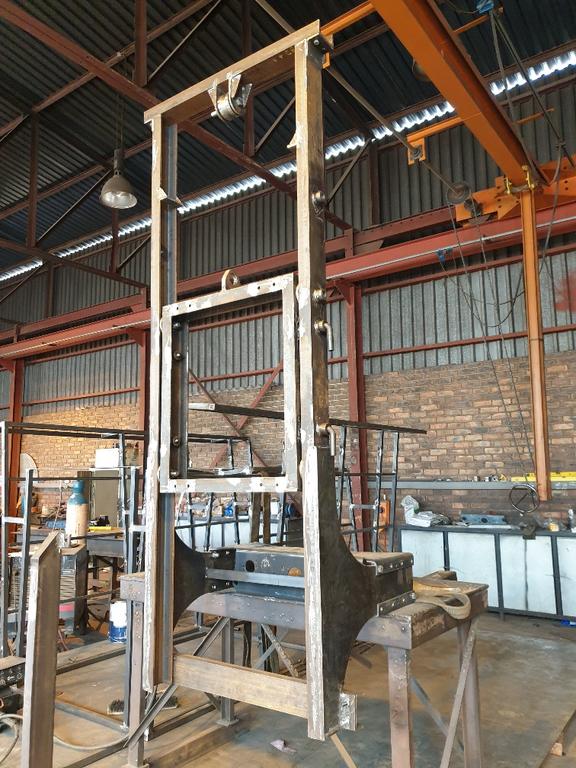

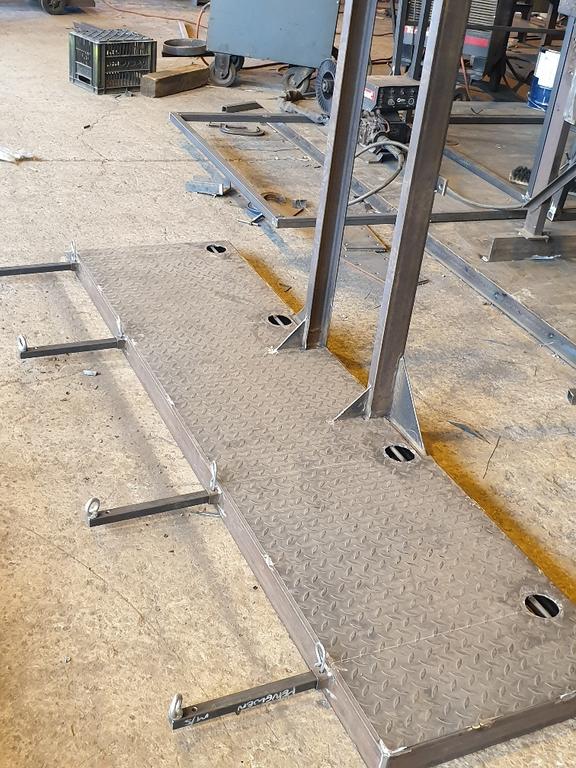

Motorcycle Lift

And our motorcycle lift is coming along nicely.

It will slide up and down by utilizing the rear mounted winch.

Update: The Lift is now ready to be sprayed.

Just need to cut the platform loose again as I have decided that it makes sense to add tail-lift hinges rather than a fixed platform so that the platform can be folded flat upright when not in use. Will save money when shipping also.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_122418_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_122448_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.

Last edited by Family Friendly 4x4; 3 Oct 2019 at 13:11. Reason: Progress update
Reply With Quote
  #7
Old 23 Aug 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

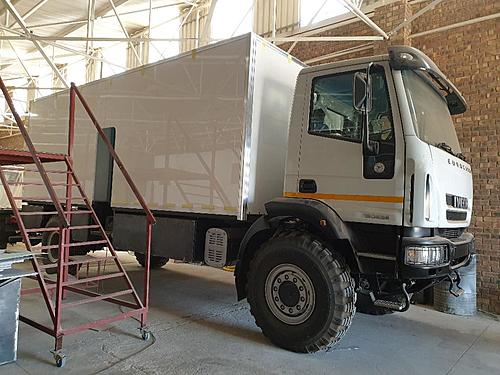

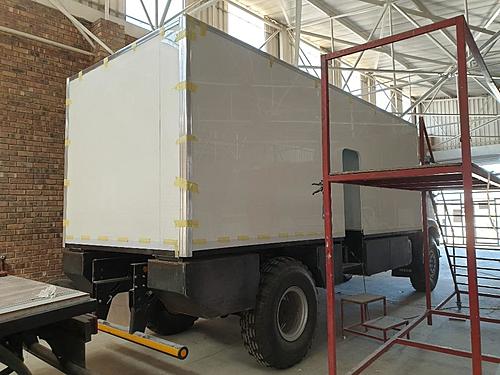

Further progress on the box

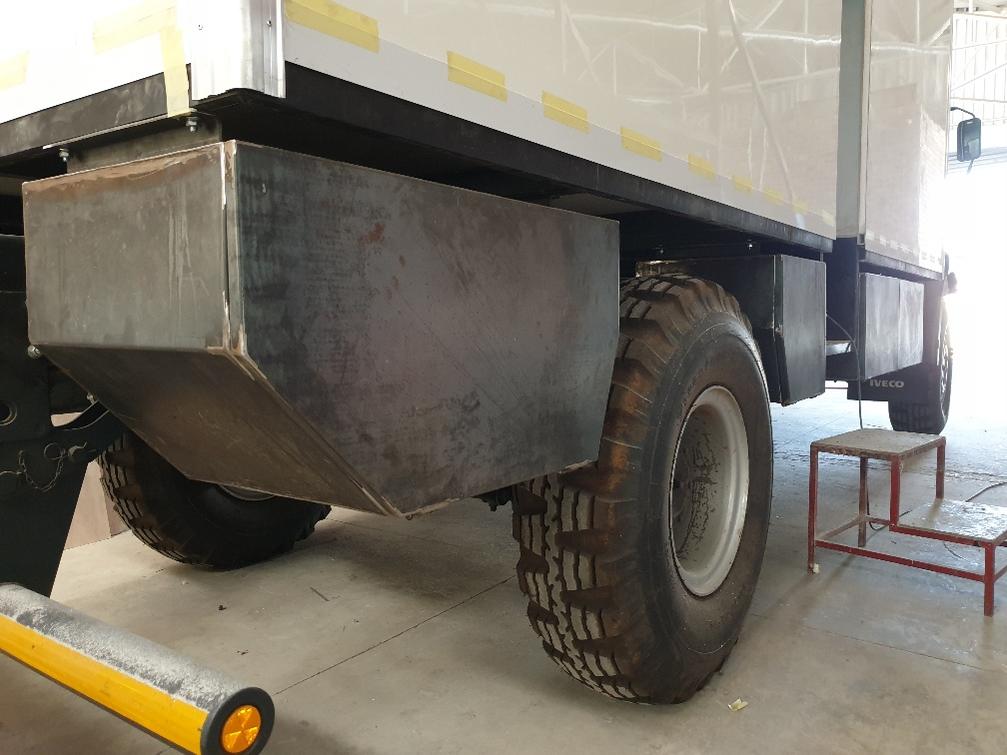

Our living space has now been sealed. Edging strips will be sprayed matching white for now but we will probably have the truck wrapped in some personal decals at the end.

Storage boxes need to be finished off and then we can move onto finishing the interior fitment.

Some big storage boxes to follow still between the cab and the box on either side of the Crawl-Thru.

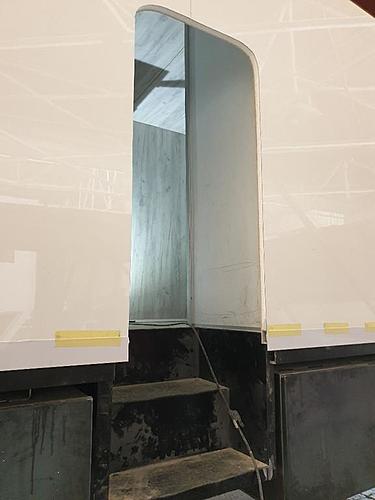

With the door cut and stairs fitted it is starting to look like something.

Once we cut the 6x windows it will look more like a home for the road.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_130740_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_130706_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_131935_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_132030_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #8
Old 23 Aug 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13
Swivel Mount

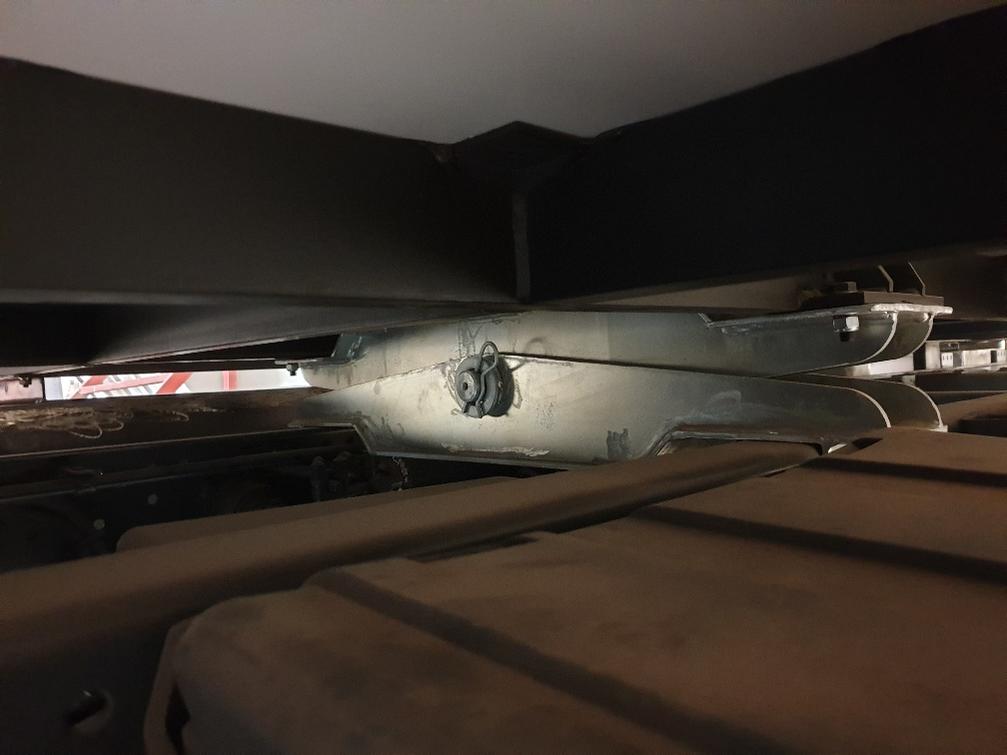

This is the swivel mount fitted to the body behind the cab to allow for flex of the chassis. The rear end is bolted down solid.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_120738_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #9
Old 3 Oct 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

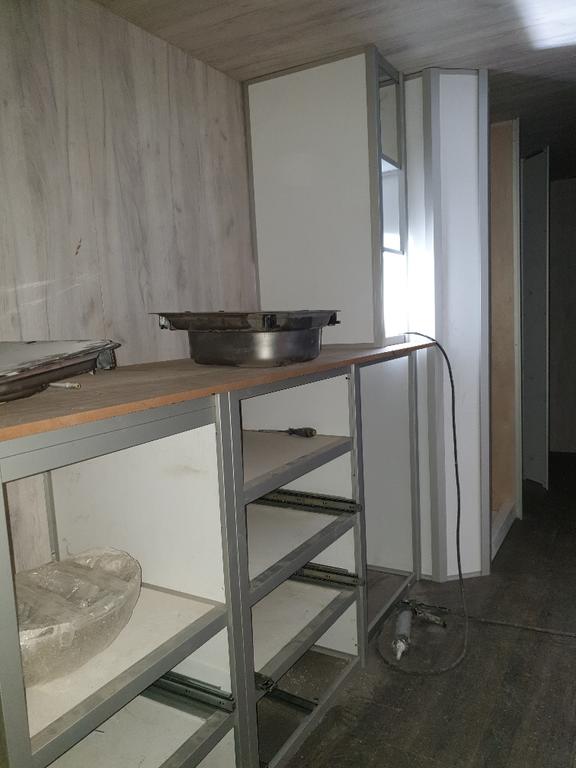

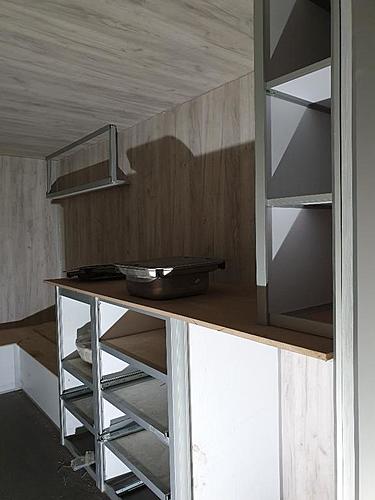

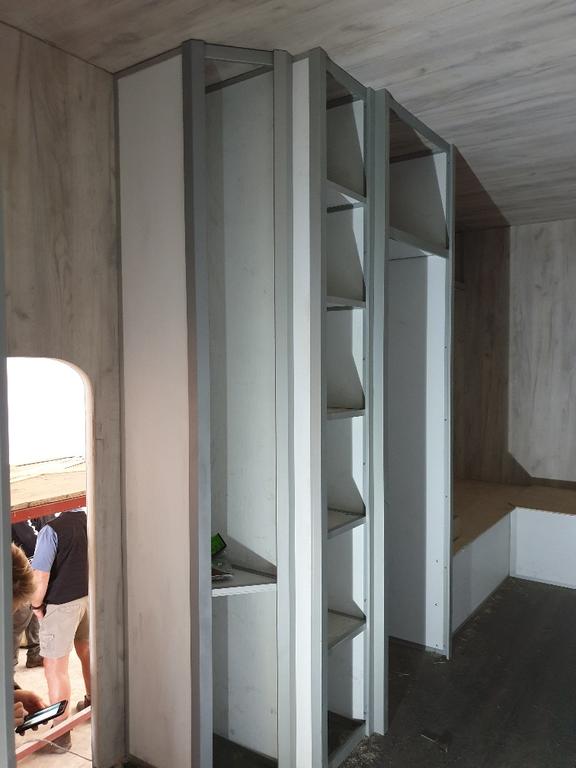

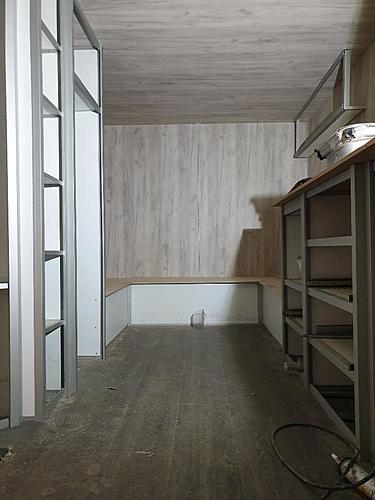

Interior Fitment

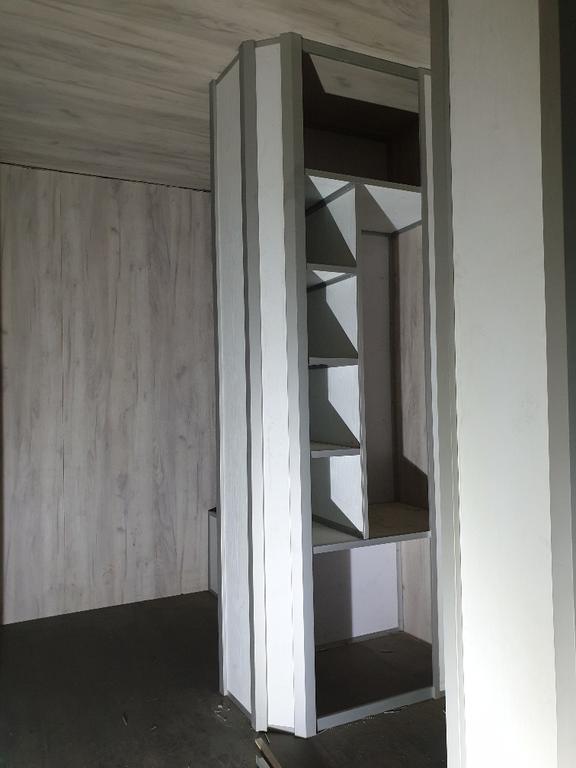

Our interior is slowly starting to make sense, albeit a bit dark! 6x windows still need to be cut.

We will have a white bulkhead with LED down-lights up against the ceiling to break up all the wood grain effect.

The shower door will swing out and lock against the walk-in-closet accross the passageway in order to open up a large area for getting out of the shower and straight into the wardrobe with privacy from the kitchen and lounge. A feature we have seen and like on some European trucks.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_113024_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_113138_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_113858_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_113443_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20190814_113835_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #10
Old 11 Oct 2019
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

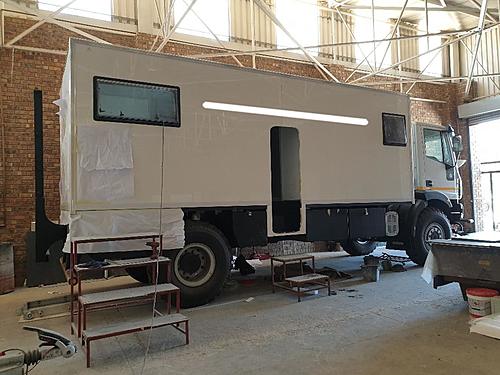

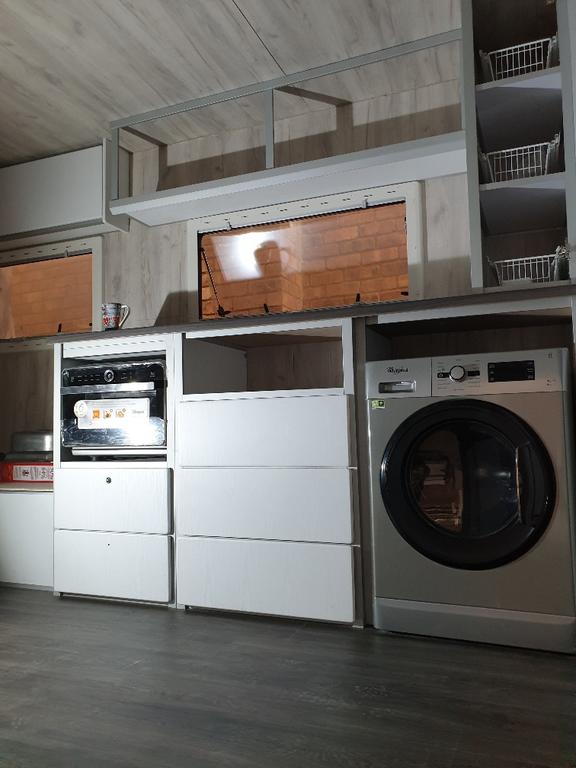

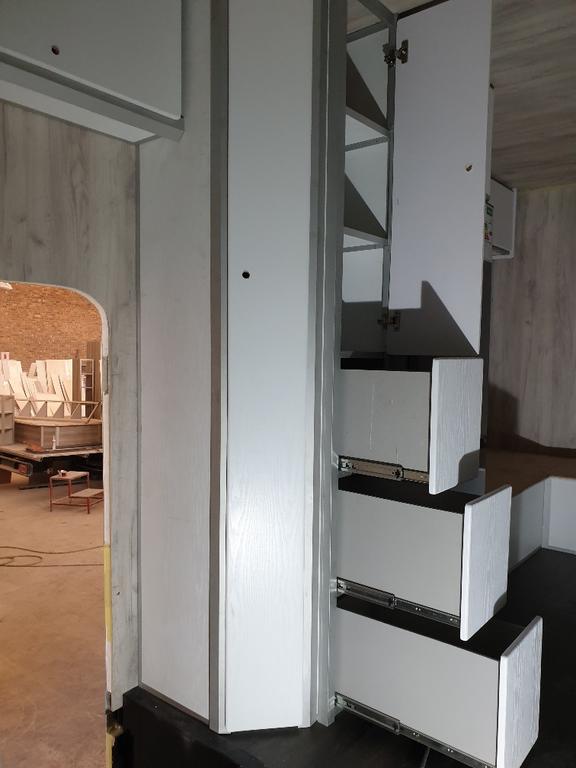

Will we complete this build by the end of the year??

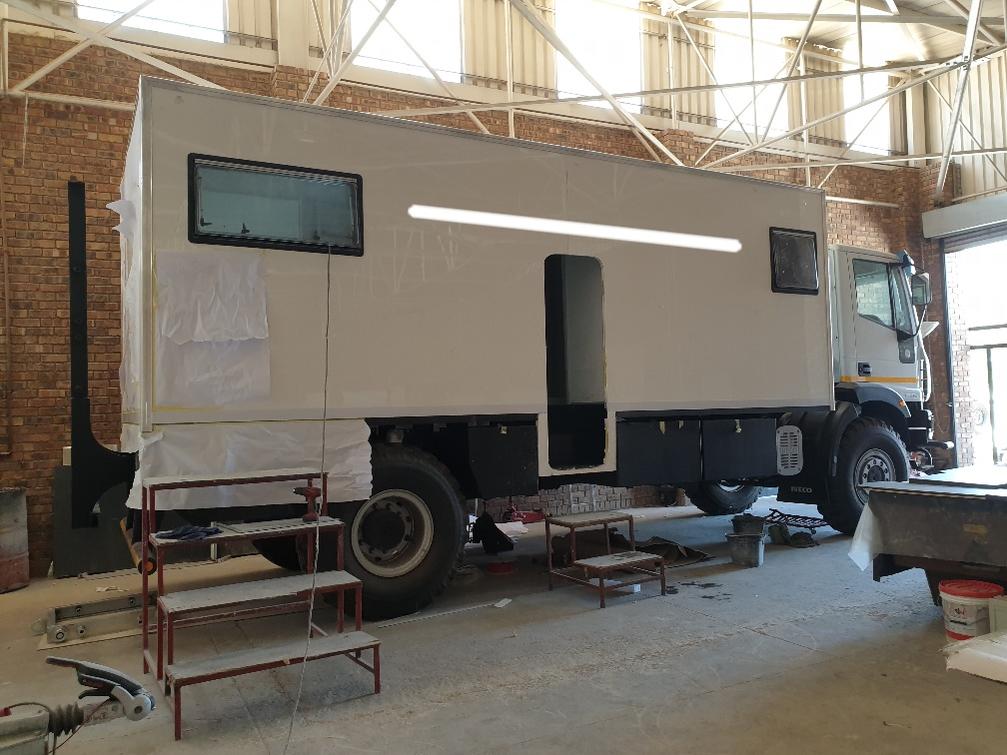

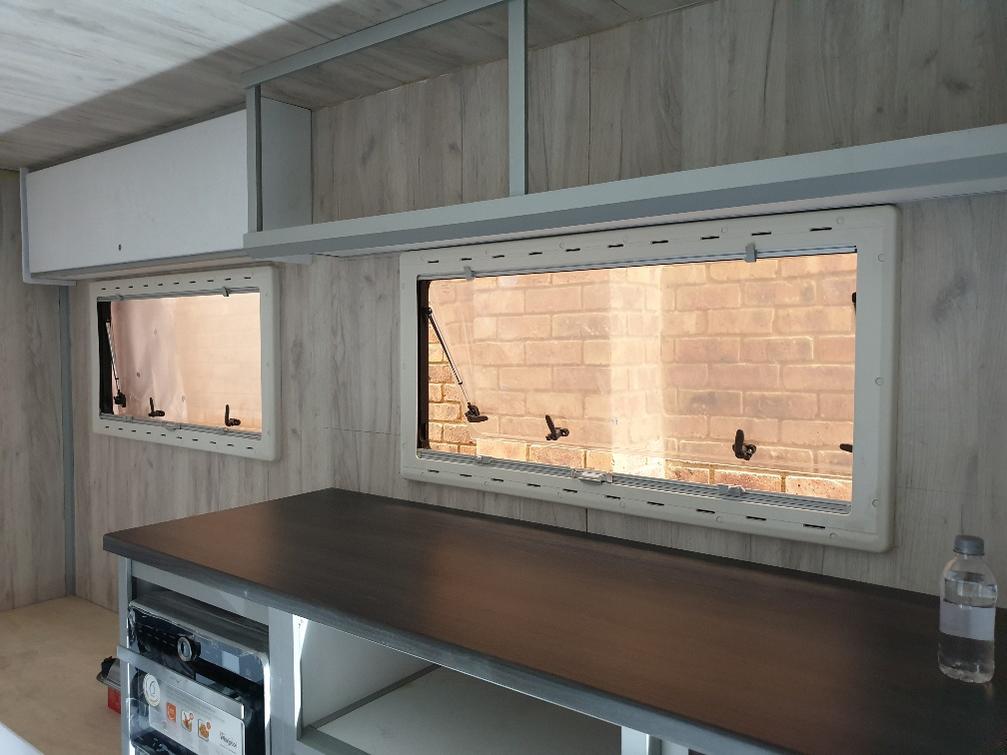

We finally got around to cutting the windows.

PS. The white line in the side view picture of the truck indicates our intended position for the awning.

There is still a ton of work to be done on the interior fitment but it is starting to create the idea of our home on wheels that we imagined.
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191008_153454_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191008_112810_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191008_113958_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191008_113151_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191008_113853_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #11
Old 8 Jan 2020
Registered Users
New on the HUBB

Join Date: May 2019
Location: Cape Town
Posts: 13

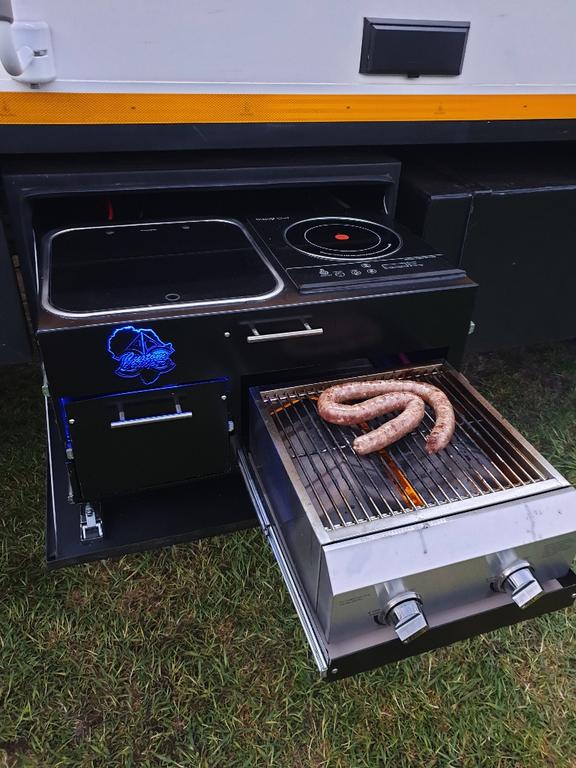

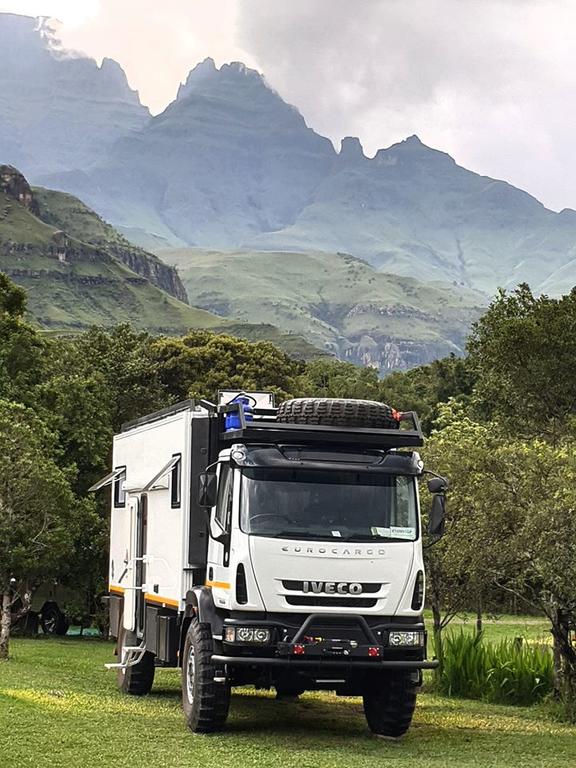

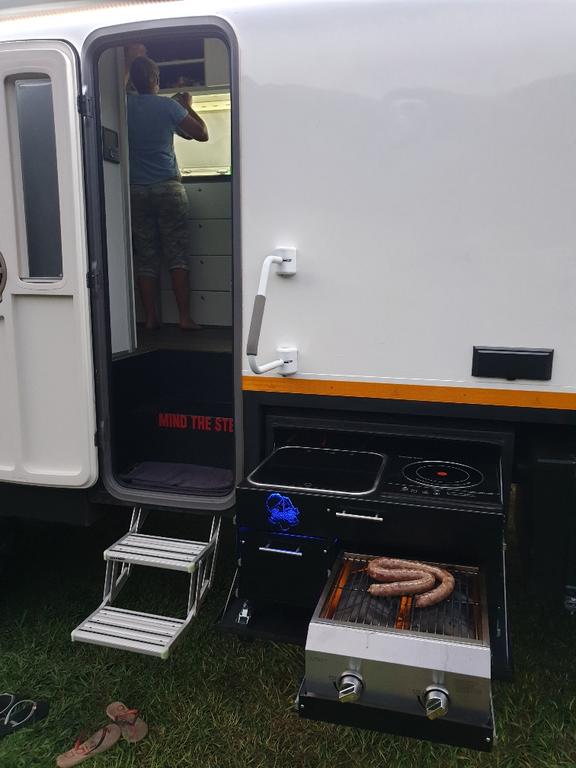

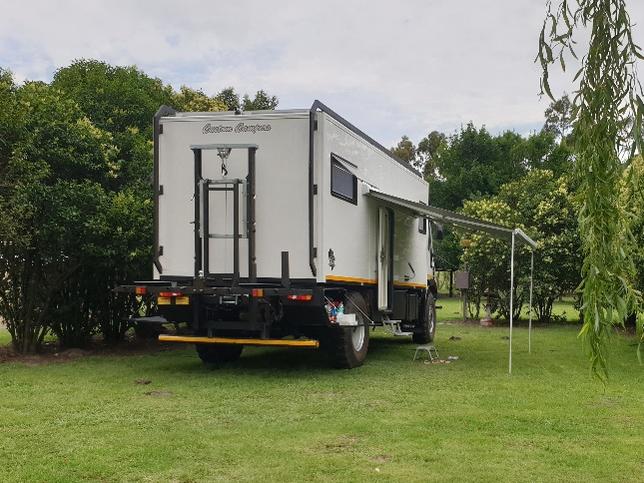

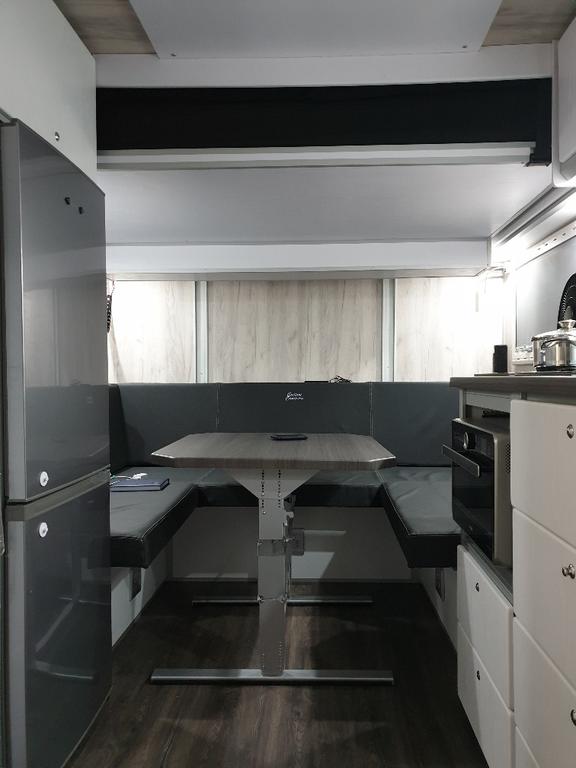

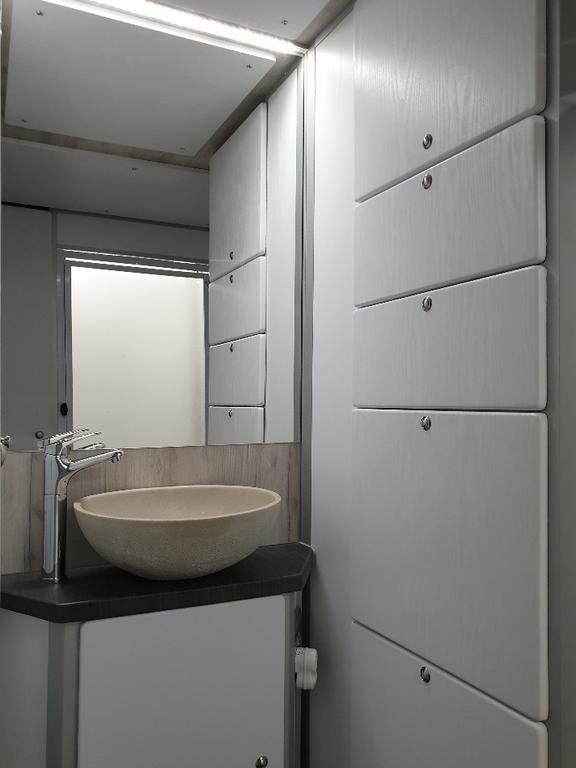

The Test Trip

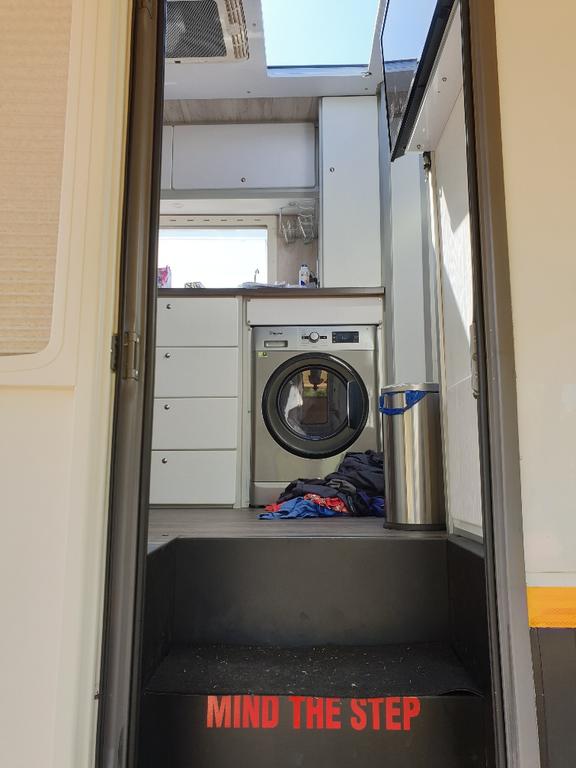

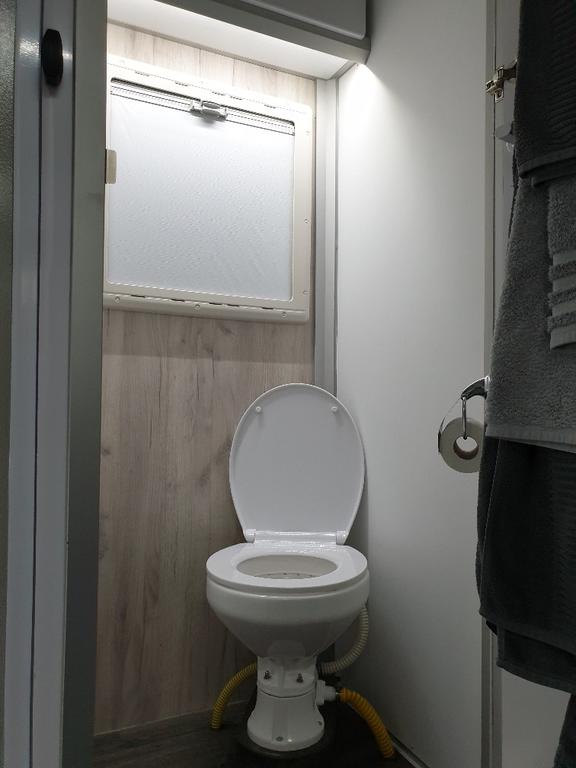

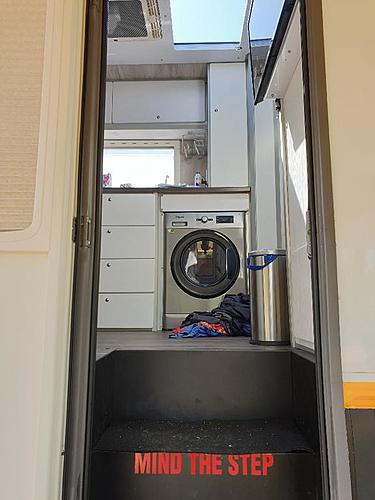

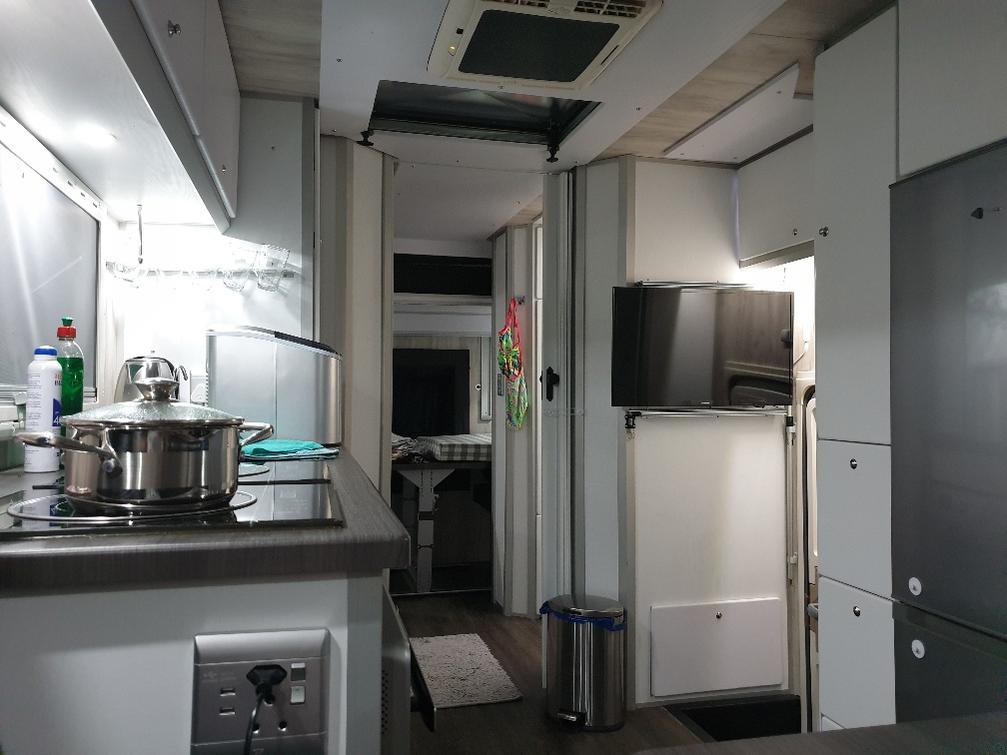

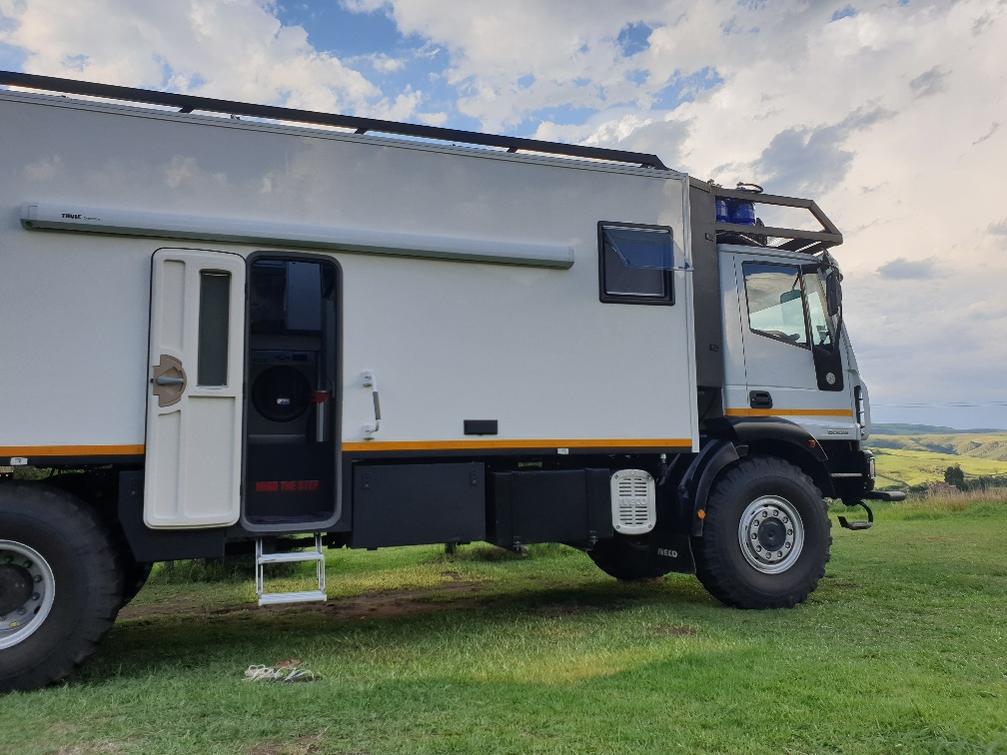

We did not quite make our end of year completion deadline but we were able to take the Eurocargo out on a test trip.

Here are some photos of the progress so far:
Attached Thumbnails
Iveco Eurocargo ML150 4x4 Expedition Truck Build-81397901_10159177703087538_5618821163183505408_o.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20200102_180115_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191222_200431_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191222_201806_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191222_202526_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191222_202129_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20200102_191807_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20200102_191801_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20191222_150409_resized.jpg

Iveco Eurocargo ML150 4x4 Expedition Truck Build-20200105_231904_resized.jpg

__________________
Gustav Marais - Boldy going where others have already been.
Reply With Quote
  #12
Old 13 Jan 2020
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Bloody awesome, just a tad jealous.

Mezo.
Reply With Quote
  #13
Old 2 Feb 2021
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Posts: 833
Guess Sabrina brings the spam with her first post...

thanks Surfy, ‘Sabrina’ has been banned

@Family Friendly 4x4: How do you plan to carry the family? As far as I am able to see, only 3 Persons can stay in the driver cabin? Guess at many parts of the world it will be forbiden to stay at the rear during driving? At least Beds are planned for 6 travellers.

Surfy

Last edited by Tim Cullis; 2 Feb 2021 at 15:55. Reason: Reported user has been banned
Reply With Quote
Reply

Tags
eurocargo, expedition truck, iveco, ml150e24, overland truck


Currently Active Users Viewing This Thread: 1 (0 Registered Users and/or Members and 1 guests)


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Mercedes 814 da allrad 4x4 4wd expedition overland camper motorhome van truck LOOKBACK Overland Vehicles and Equipment for Sale / Wanted 2 30 Apr 2018 14:02
Iveco Daily 4x4, UK registered, expedition ready viewsfromtheroad Overland Vehicles and Equipment for Sale / Wanted 2 25 Feb 2018 21:58
Iveco 4x4 Expedition Ready for Sale viewsfromtheroad Overland Vehicles and Equipment for Sale / Wanted 1 27 May 2014 22:24
Iveco Daily 4x4 expedition ready and in UK viewsfromtheroad Overland Vehicles and Equipment for Sale / Wanted 0 15 Jan 2014 20:12
Iveco Daily 35.10 4x4 for sale - Expedition ready – UK registered viewsfromtheroad Overland Vehicles and Equipment for Sale / Wanted 1 15 May 2013 11:34




Announcements

Thinking about traveling? Not sure about the whole thing? Watch the HU Achievable Dream Video Trailers and then get ALL the information you need to get inspired and learn how to travel anywhere in the world!

Have YOU ever wondered who has ridden around the world? We did too - and now here's the list of Circumnavigators!
Check it out now
, and add your information if we didn't find you.

Next HU Eventscalendar

ALL Dates subject to change.

2025 Confirmed Events:

  • Virginia: April 24-27 2025
  • Queensland is back! May 2-4 2025
  • Germany Summer: May 29-June 1 2025
  • CanWest: July 10-13 2025
  • Switzerland: Date TBC
  • Ecuador: Date TBC
  • Romania: Date TBC
  • Austria: Sept. 11-15
  • California: September 18-21
  • France: September 19-21 2025
  • Germany Autumn: Oct 30-Nov 2 2025

Add yourself to the Updates List for each event!

Questions about an event? Ask here

See all event details


World's most listened to Adventure Motorbike Show!
Check the RAW segments; Grant, your HU host is on every month!
Episodes below to listen to while you, err, pretend to do something or other...

Adventurous Bikers – We've got all your Hygiene & Protection needs SORTED! Powdered Hair & Body Wash, Moisturising Cream Insect Repellent, and Moisturising Cream Sunscreen SPF50. ESSENTIAL | CONVENIENT | FUNCTIONAL.

2020 Edition of Chris Scott's Adventure Motorcycling Handbook.

2020 Edition of Chris Scott's Adventure Motorcycling Handbook.

"Ultimate global guide for red-blooded bikers planning overseas exploration. Covers choice & preparation of best bike, shipping overseas, baggage design, riding techniques, travel health, visas, documentation, safety and useful addresses." Recommended. (Grant)



Ripcord Rescue Travel Insurance.

Ripcord Rescue Travel Insurance™ combines into a single integrated program the best evacuation and rescue with the premier travel insurance coverages designed for adventurers.

Led by special operations veterans, Stanford Medicine affiliated physicians, paramedics and other travel experts, Ripcord is perfect for adventure seekers, climbers, skiers, sports enthusiasts, hunters, international travelers, humanitarian efforts, expeditions and more.

Ripcord travel protection is now available for ALL nationalities, and travel is covered on motorcycles of all sizes!




What others say about HU...

"This site is the BIBLE for international bike travelers." Greg, Australia

"Thank you! The web site, The travels, The insight, The inspiration, Everything, just thanks." Colin, UK

"My friend and I are planning a trip from Singapore to England... We found (the HU) site invaluable as an aid to planning and have based a lot of our purchases (bikes, riding gear, etc.) on what we have learned from this site." Phil, Australia

"I for one always had an adventurous spirit, but you and Susan lit the fire for my trip and I'll be forever grateful for what you two do to inspire others to just do it." Brent, USA

"Your website is a mecca of valuable information and the (video) series is informative, entertaining, and inspiring!" Jennifer, Canada

"Your worldwide organisation and events are the Go To places to for all serious touring and aspiring touring bikers." Trevor, South Africa

"This is the answer to all my questions." Haydn, Australia

"Keep going the excellent work you are doing for Horizons Unlimited - I love it!" Thomas, Germany

Lots more comments here!



Five books by Graham Field!

Diaries of a compulsive traveller
by Graham Field
Book, eBook, Audiobook

"A compelling, honest, inspiring and entertaining writing style with a built-in feel-good factor" Get them NOW from the authors' website and Amazon.com, Amazon.ca, Amazon.co.uk.



Back Road Map Books and Backroad GPS Maps for all of Canada - a must have!

New to Horizons Unlimited?

New to motorcycle travelling? New to the HU site? Confused? Too many options? It's really very simple - just 4 easy steps!

Horizons Unlimited was founded in 1997 by Grant and Susan Johnson following their journey around the world on a BMW R80G/S.

Susan and Grant Johnson Read more about Grant & Susan's story

Membership - help keep us going!

Horizons Unlimited is not a big multi-national company, just two people who love motorcycle travel and have grown what started as a hobby in 1997 into a full time job (usually 8-10 hours per day and 7 days a week) and a labour of love. To keep it going and a roof over our heads, we run events all over the world with the help of volunteers; we sell inspirational and informative DVDs; we have a few selected advertisers; and we make a small amount from memberships.

You don't have to be a Member to come to an HU meeting, access the website, or ask questions on the HUBB. What you get for your membership contribution is our sincere gratitude, good karma and knowing that you're helping to keep the motorcycle travel dream alive. Contributing Members and Gold Members do get additional features on the HUBB. Here's a list of all the Member benefits on the HUBB.




All times are GMT +1. The time now is 12:16.
