IMS fuel tank queries.

I have an IMS fuel tank on my DR650 SE but there are two things that are bothering me, so i wonder if anyone can help

1. Firstly the breather hose/overflow that connects to the cap keeps coming of and is generally annoying, can i replace it with something else, i guess whatever i do i dont what bits entering the the tank and clogging things up.

2. The fuel valve leaks when i turn it to reserve, anyone know where can i get a suitable replacement. Ive heard pinglel make one, they have so many on their site which one do ppl use on there ims.

Cheers, Stephen
Attached Thumbnails

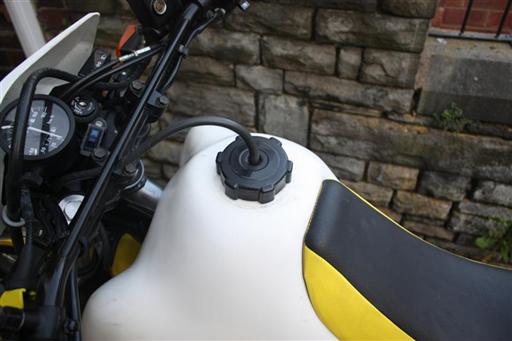

IMS fuel tank queries.-breather-hose.jpg

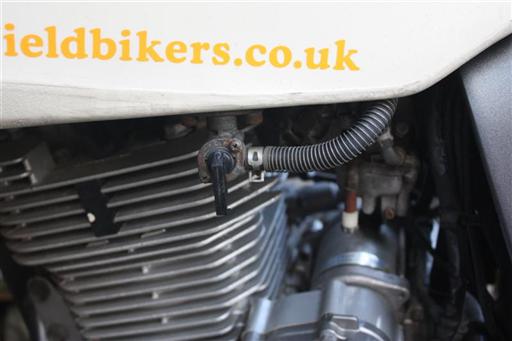

IMS fuel tank queries.-fuel-tap.jpg

Reply With Quote
  #2
Old 20 Aug 2009
BlackBeast's Avatar
Gold Member
Veteran HUBBer

Join Date: Jun 2007
Location: Ontario, CANADA
Posts: 313
Have you tried one of these & zip tie the bottom end to the fuel cap.



Are you using the IMS petcock? How full is the tank when turning to the petcock to reserve?
I changed to a pingel and haven't had any issues.
Reply With Quote
  #3
Old 20 Aug 2009
Registered Users
Veteran HUBBer

Join Date: Dec 2007
Location: Melbourne, Australia
Posts: 140
I ziptied a random, suitably sized buit of plastic hose to the brether nipple. Handy in that I could take it off whenever I removed the cap, but it did get a bit hard after several months.

As for the tap, I used the standard DR650 tap. I had to file out the hole in the tank slightly, and it means you only get 30-40km on reserve, but otherwise works well, and I like having it vacuum operated.

Ben
__________________
Vladivostok - Denmark 2008... Finished.
Denmark - South Africa 2010-2011... Finished.
Reply With Quote
  #4
Old 20 Aug 2009
MikeS's Avatar
Registered Users
Veteran HUBBer

Join Date: Nov 2005
Posts: 1,187
I'd get a locking filler cap. Main reason for this was having mine stolen off my 20L IMS tank and they then though it would be a good idea to drop stuff into the tank. Not particularly helpful when you're on the back roads of Pakistan but there you go. Had my breather pipe pinched in India too so I'd just stick with the cheap plastic lines and carry a spare rather than buying the expensive one.

I did find a locking cap that fitted the IMS tank but don't recall the make. Only about £20-30 I'd guess.

Did you fit the tap correctly?? Never had any leaks on mine but then the tap itself really is a flimsy piece of crap, however it did the job.
__________________
Mike


www.singapore-scotland.blogspot.com
www.argentina-alaska.blogspot.com
My little Vid: India/Pakistan

BMW R1150GS
Suzuki DR650 SE: Ride it like ya stole it. Oh, somebody just did...
Reply With Quote
  #5
Old 20 Aug 2009
Registered Users
HUBB regular

Join Date: Jun 2009
Location: Sheffield
Posts: 23
Thanks for the replies. A locking fuel cap sounds like a good idea, i will try and find one. Any suggestions for stockists in the UK that sell such things - fuel taps too.

The bike came with the tank fitted so i don't have the original valve. The valve does seem quite flimsy i think maybe i should just take it apart and replace the seals that have probably worn out.

Those pingel taps look good but i don't know if i can buy one in the uk and they seem expensive too! are there any cheaper alternatives?

Stephen.
Reply With Quote
  #6
Old 29 Aug 2009
Registered Users
HUBB regular

Join Date: Jun 2009
Location: Sheffield
Posts: 23
Found one This chap has an ebay store that sells the exact tap that i had on previously, well worth a ganders if your after such item: Rally & Overland Ebay Store

Stephen
