Camel foot side stand extension for adventure bikes (located in DE, shipping WW)
For sale are side stand extensions modeled after the foot of a Bactrian Camel (1st image).

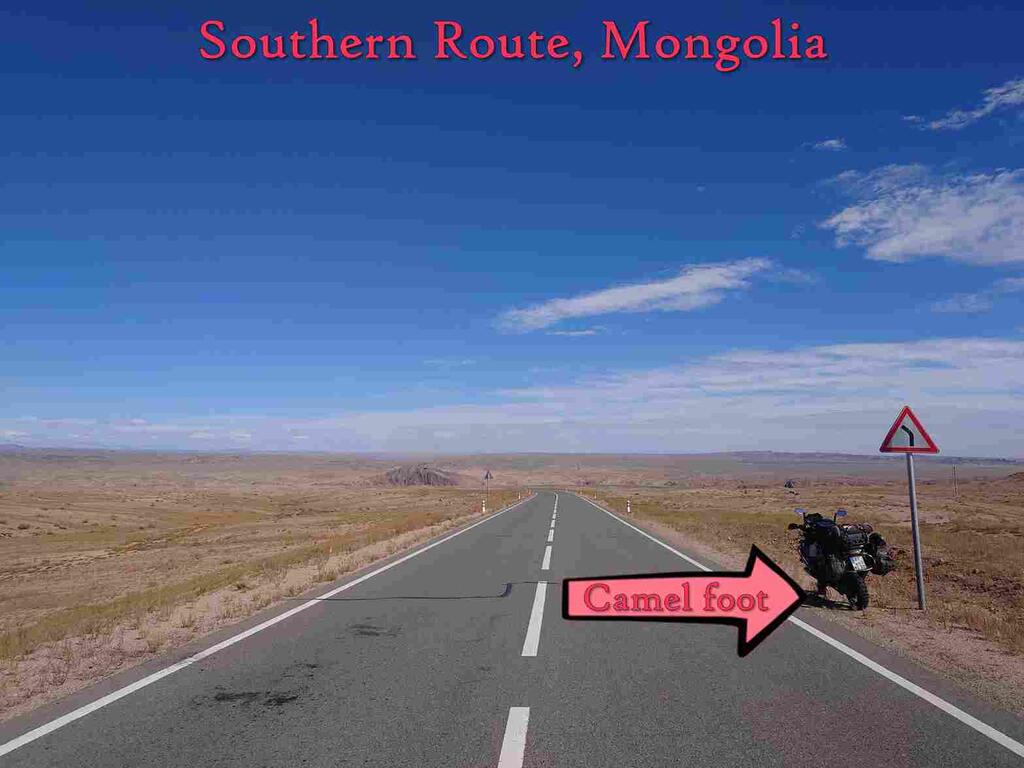

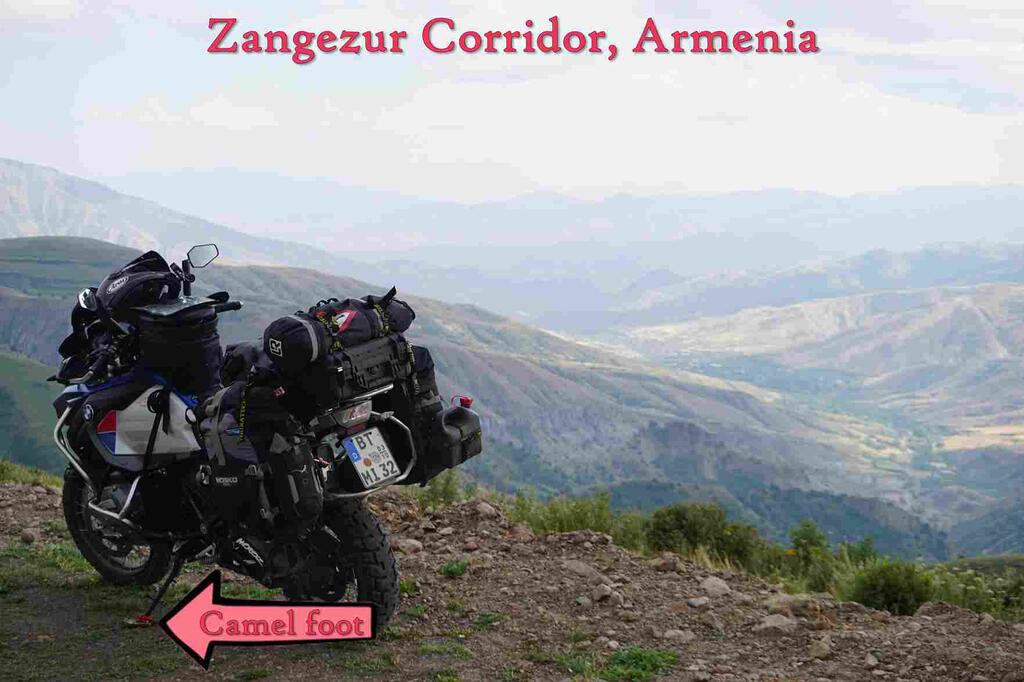

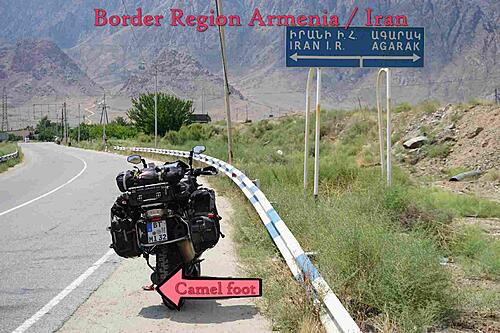

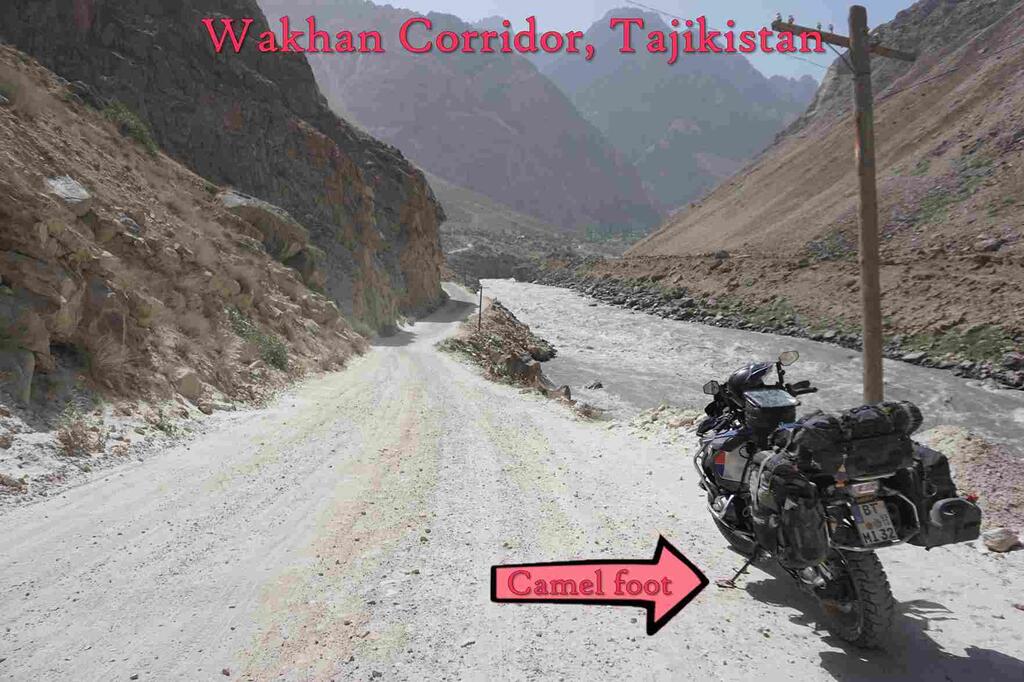

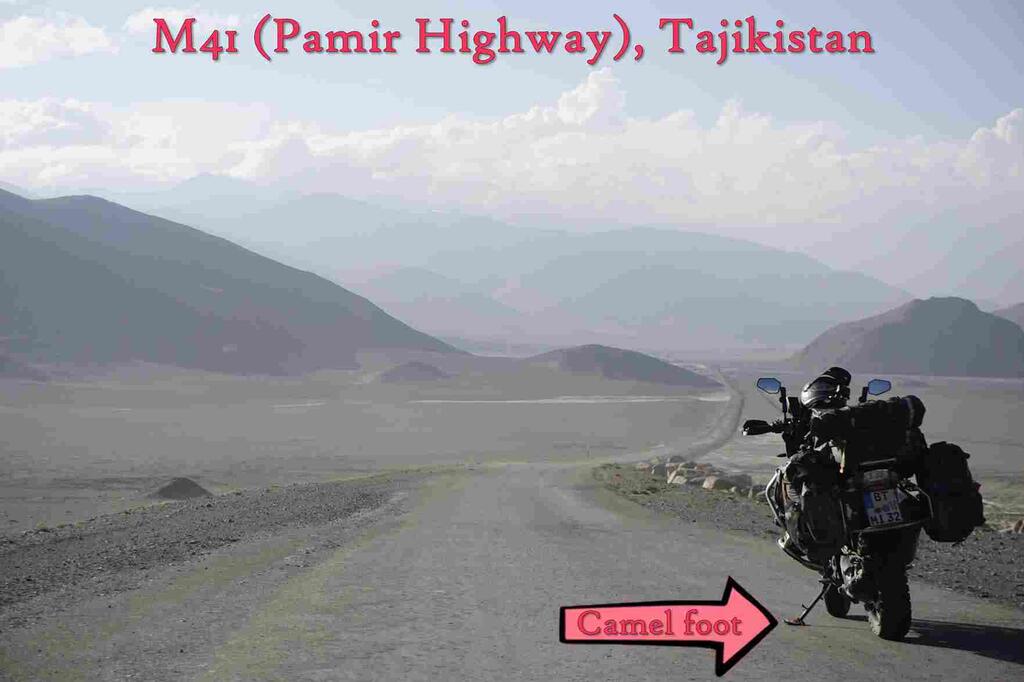

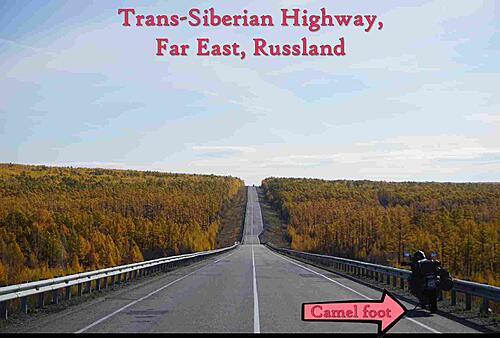

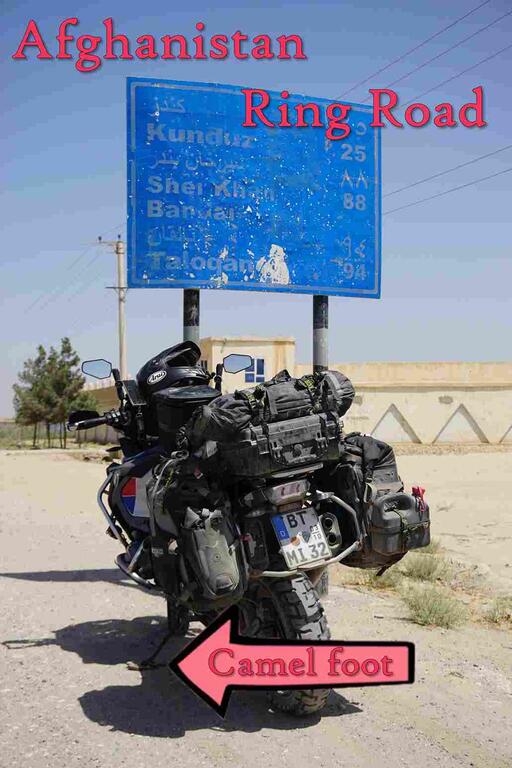

Successfully tested on a 6-month and 25,000 km long motorcycle tour from the Oberpfalz, Germany, to Vladivostok, Russia, during which I crossed several countries like Georgia, Armenia, Iran, Afghanistan, the Stans, Mongolia, as well as Siberia and the Far East of Russia.
Each set consists of a ground plate, clamp plate, and top plate including "Camel foot" logo, all laser-cut from stainless steel 304L. The assembly is done using 4 countersunk screws M6 (V2A), 4 washers M6 (V2A), and 4 nylon insert self-locking nuts M6 M6 (V2A). The countersunk screws are guided through 4 O-rings (NBR) between the ground plate and the clamp plate.

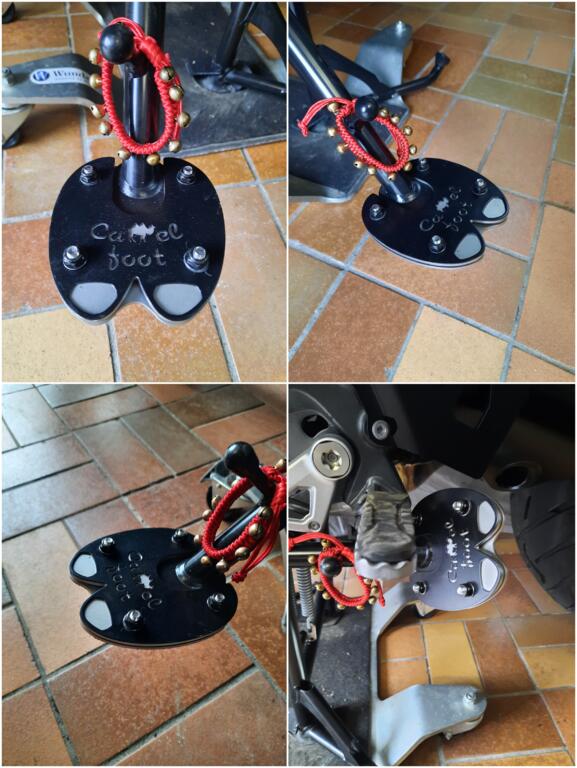

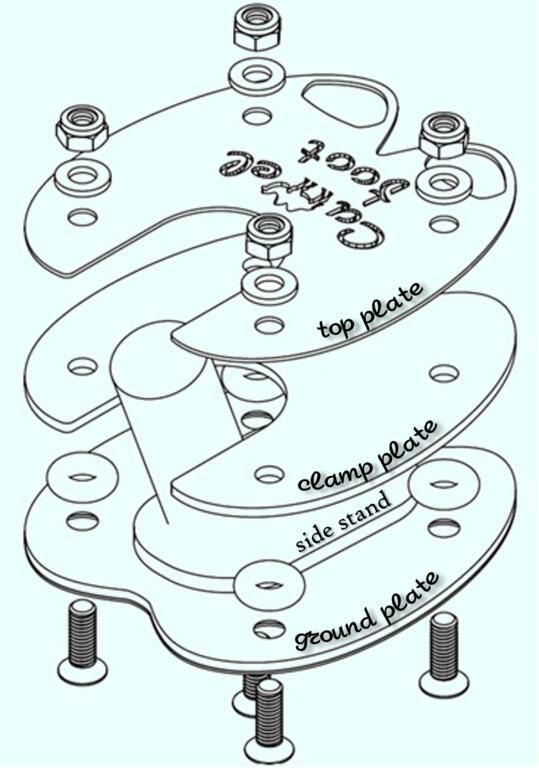

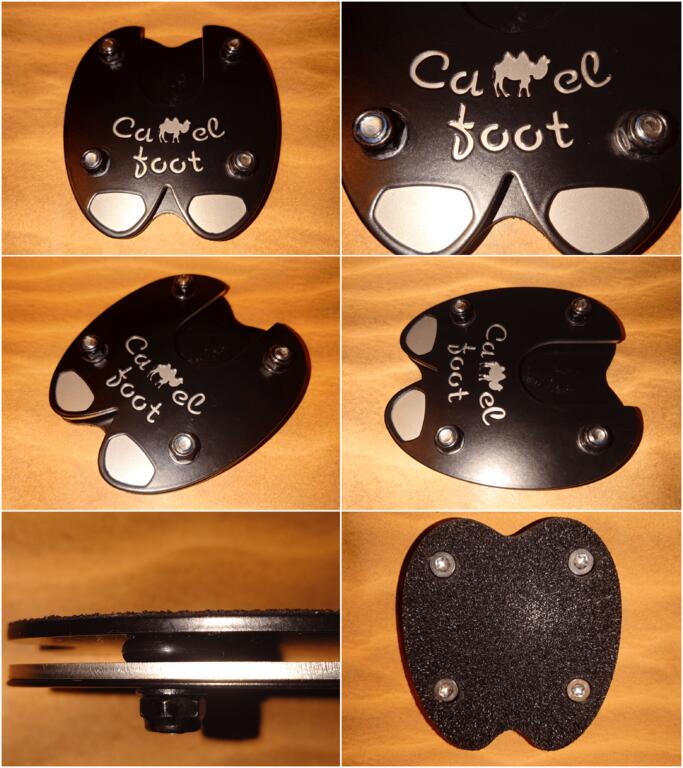

I believe the assembly should be easy to follow based on the exploded view (2nd image). Various views are shown in the 3rd image. Additionally, 3M anti-slip tape is adhered to the underside of the ground plate, which is also laser-cut for a perfect fit. As seen in the bottom right of the 3rd image, the holes are conically countersunk so that the countersunk screws sit flush with the ground plate.

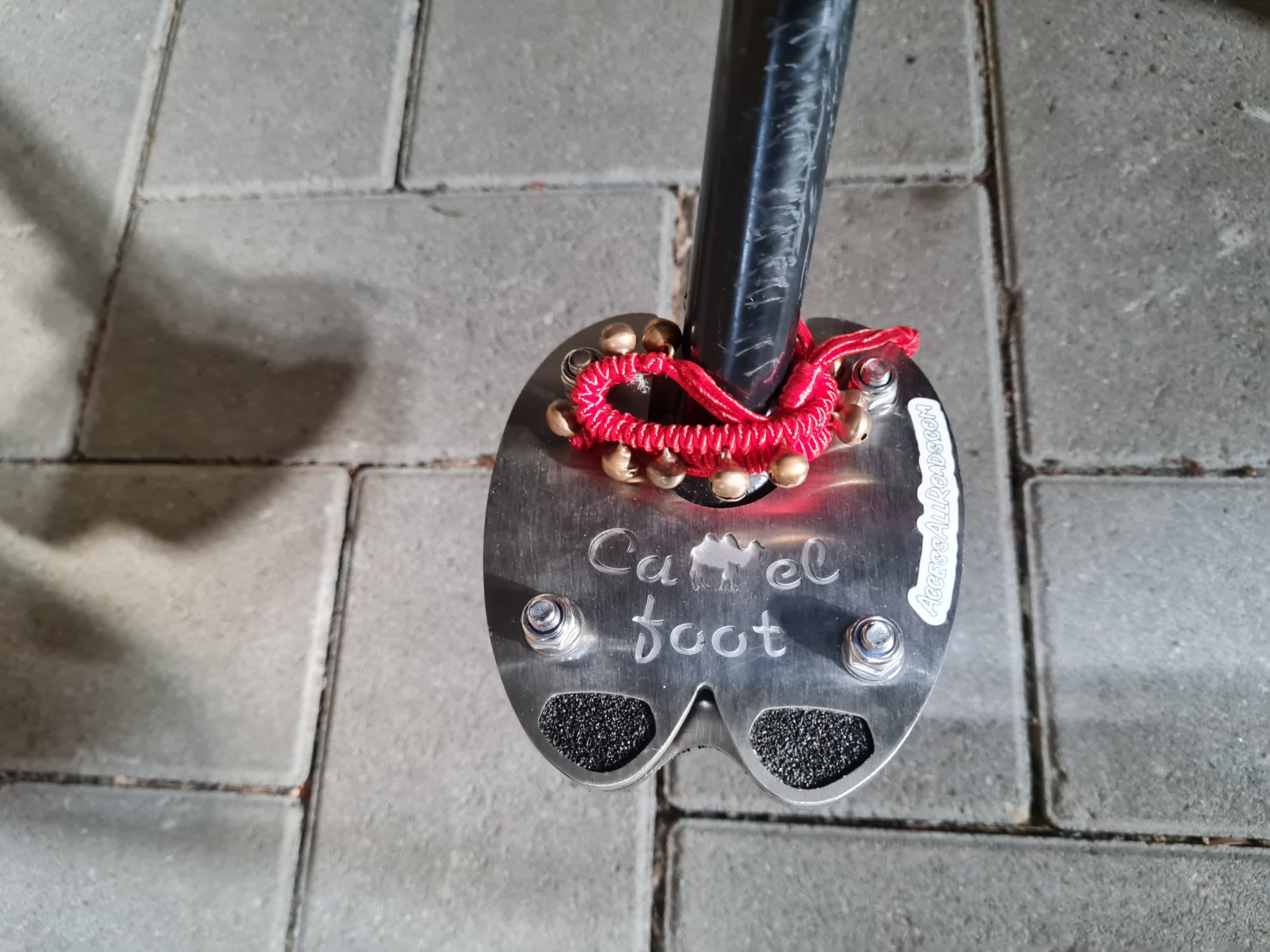

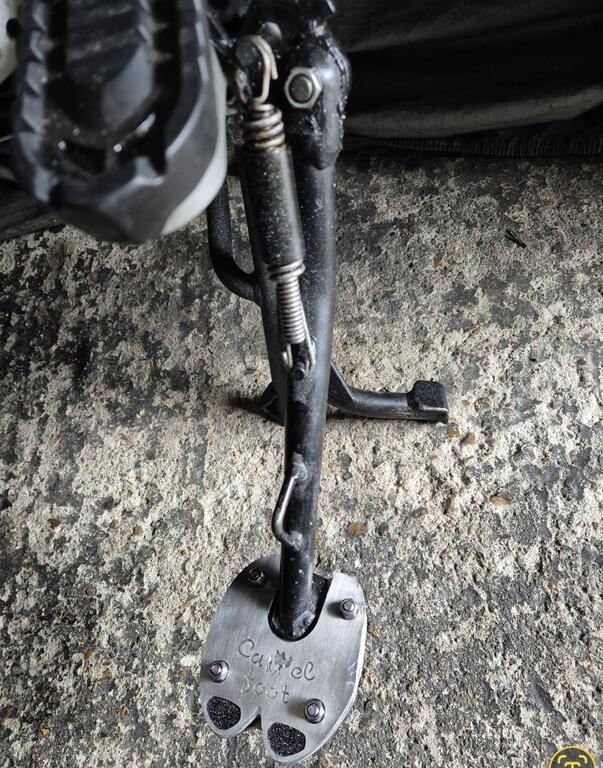

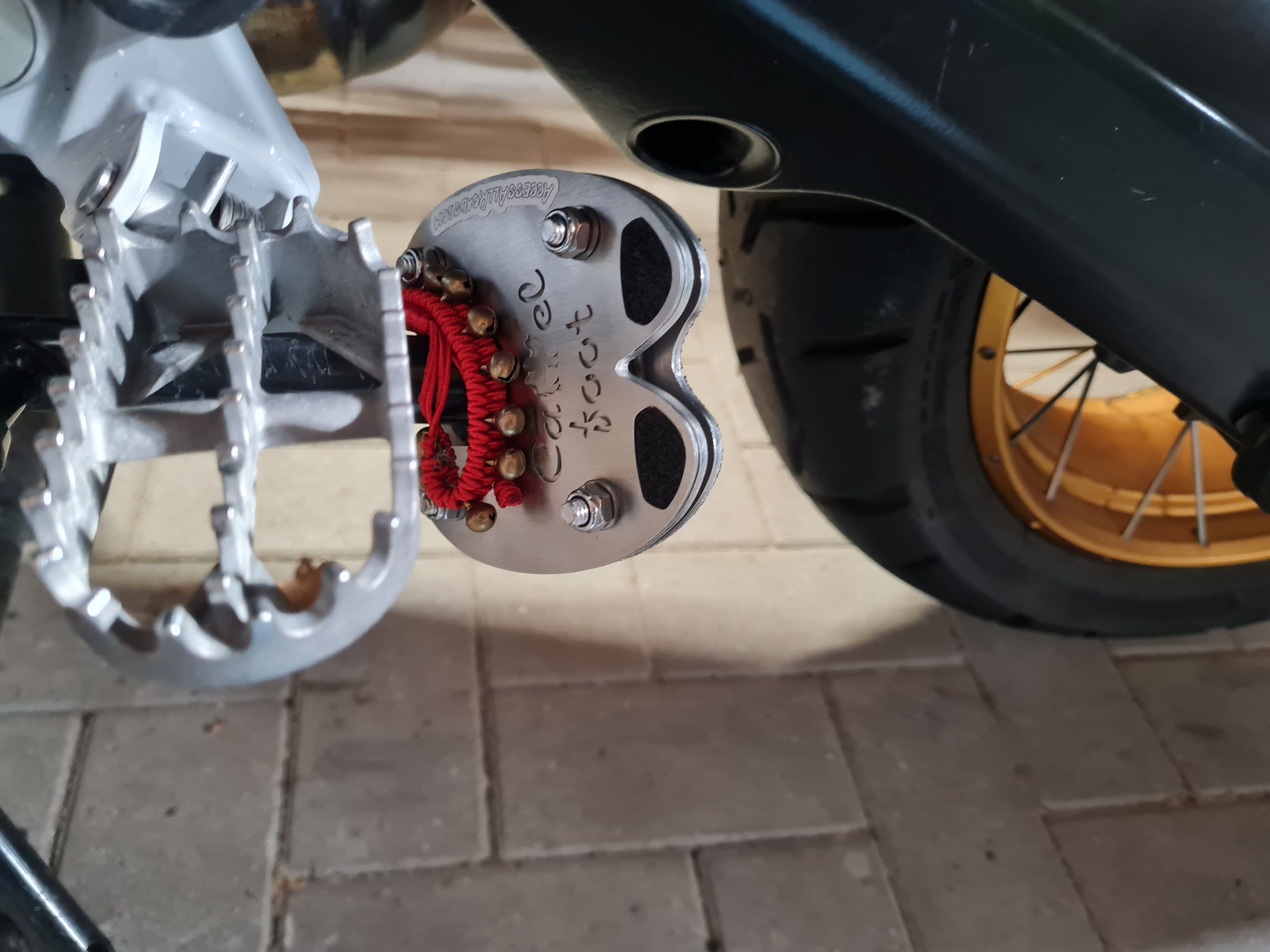

In the mounted state, it is hardly distinguishable from the "original" (4th image)^^.
The following variations of the camel foot are available:

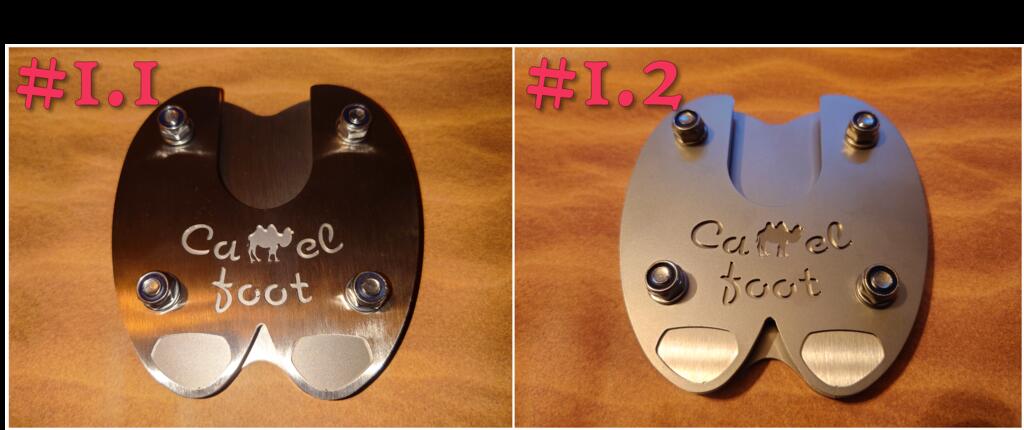

#1.1
Top plate polished ("glossy") | clamp plate bead-blasted (matte) | ground plate polished (240 grit)
#1.2
Top plate bead-blasted (matte) | clamp plate polished (240 grit) | ground plate bead-blasted (matte)

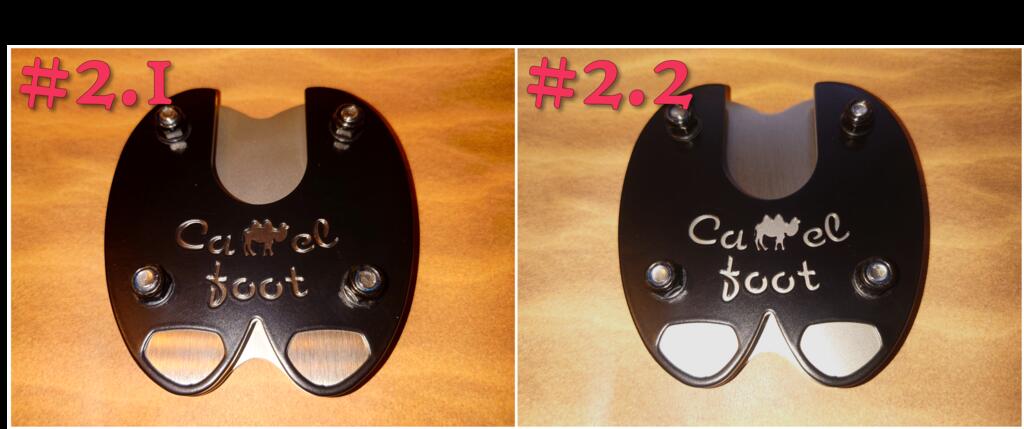

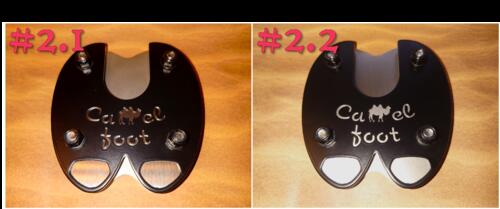

#2.1
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate polished (240 grit) | ground plate bead-blasted (matte)
#2.2
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate bead-blasted (matte) | ground plate polished (240 grit)
#3.1
Top plate polished ("glossy") | clamp plate powder-coated (RAL 9005 semi-gloss) | ground plate polished (240 grit)
#3.2
Top plate bead-blasted (matte) | clamp plate powder-coated (RAL 9005 semi-gloss) | ground plate bead-blasted (matte)

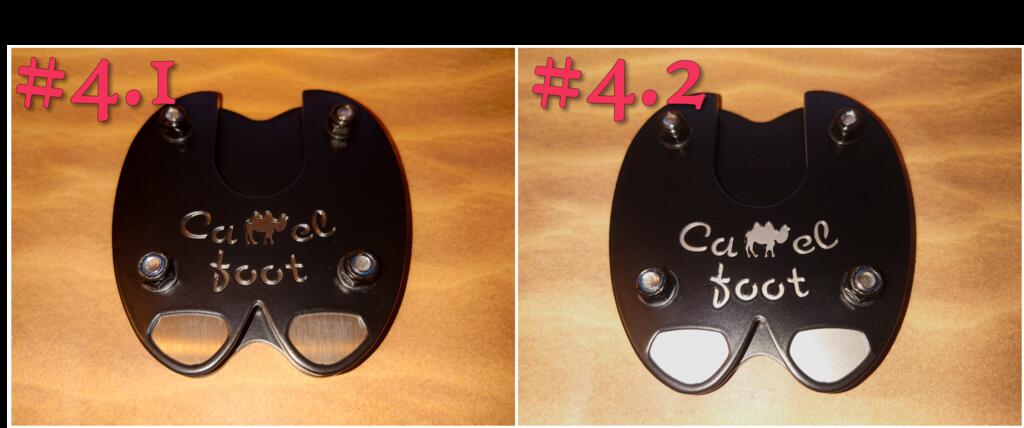

#4.1
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate polished (240 grit) | ground plate powder-coated (RAL 9005 semi-gloss)
#4.2
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate bead-blasted (matte) | ground plate powder-coated (RAL 9005 semi-gloss)

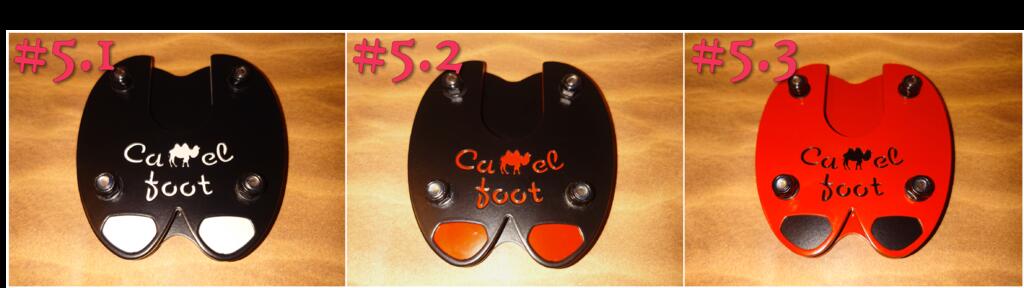

#5.1
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate powder-coated (RAL 9016 "traffic white") | ground plate powder-coated (RAL 9005 semi-gloss)
#5.2
Top plate powder-coated (RAL 9005 semi-gloss) | clamp plate powder-coated (RAL 3020 "traffic red") | ground plate powder-coated (RAL 9005 semi-gloss)
#5.3
Top plate powder-coated (RAL 3020 "traffic red") | clamp plate powder-coated (RAL 9005 semi-gloss) | ground plate powder-coated (RAL 3020 "traffic red")

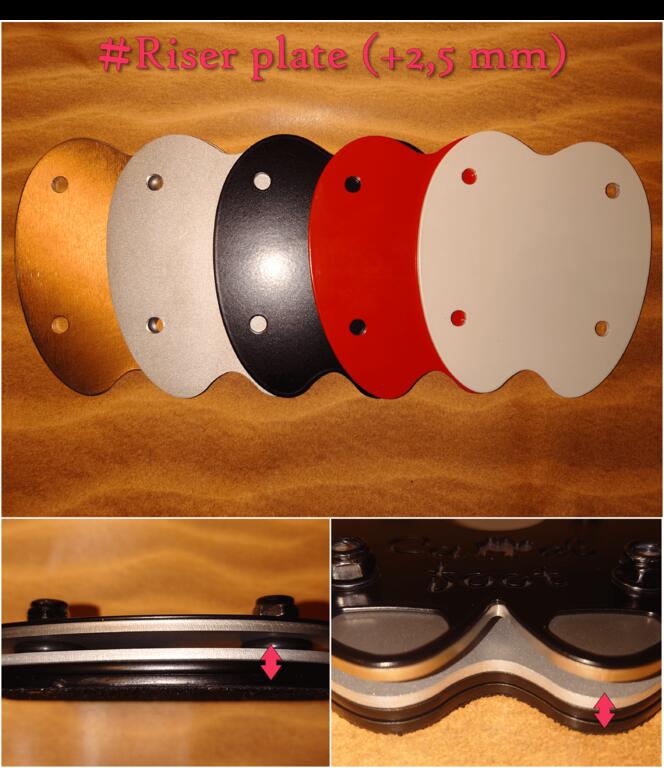

#Riser plates (+2.5 mm) in various colors.
These are simply placed on top of the ground plates.
For each riser plate, the side stand is extended by approximately 2.5 mm.
Of course, longer screws are included.
Price
A set (without powder coating) costs 25 €. For each powder-coated part, an additional 5 € is added.
An uncoated riser plate costs 5 €, with powder coating 10 €.
Shipping Costs
Per set: 1.80 € (uninsured) or 4.15 € (insured including tracking) within Germany. Shipping within the EU for 3.30 € (uninsured) or 7.00 € (insured including tracking).
Cost-effective shipping options to the USA and UK will follow promptly.
If you have any questions, feel free to ask!
|
!
!
