1986 XT600 Acerbis Desert Fuel Tank

I just picked up a NOS large capacity Acerbis Desert fuel tank for my 1986 Yamaha XT600. Unfortunately, the tank did not come with any hardware. Does anyone have this tank mounted? I need some help with mounting brackets. Does anyone know how this tank mounts? Can you provide a picture of the mounting bracket so that I can fabricate one for myself? Thanks.
Reply With Quote
  #2
Old 23 Apr 2007
Registered Users
New on the HUBB

Join Date: Nov 2006
Location: alberta canada
Posts: 6
acerbis tank

this might sound like a stretch but i know where you can get the hardware for your bike , Bent bike located in langley BC canada has on for a 1990 xt 600 now the tank wont fit but it has all the hardware
Reply With Quote
  #3
Old 21 Aug 2007
Registered Users
HUBB regular

Join Date: Mar 2007
Location: Atlanta, GA
Posts: 31
Mounting hardware

I managed to track down a tank with hardware. Here's a few pictures. I'll post the mounted tank once she's back together. Thanks for the help.



Reply With Quote
  #4
Old 22 Aug 2007
XTfubar's Avatar
Registered Users
HUBB regular

Join Date: Oct 2006
Location: Canada
Posts: 33
Nice tank. I think it's like mine..about 20L and blue. I can get over 500K out of mine...enjoy
Reply With Quote
  #5
Old 2 Mar 2012
Registered Users
New on the HUBB

Join Date: Apr 2010
Location: ireland
Posts: 1
XT 600 fuel tanks

Hey Im new to this site. Im having terrible trouble with my beloved 1985 55w tenere. Fixed various issues with it and have it running well now but cant use it. I have corrosion on the lower left of the fuel tank that has been welded 3 times and is now leaking again. I either want it repaired properly so that it will last or I would love to replace the thing for a new one or good 2nd hand one. The problem is I cant find any after market tanks for this frame. This tank was only fitted to 1985 and 86 models and even if I can find a 2nd hand one it will probably be in just as shit a condition as mine. What model were you fitting that long range tank to?? Any pics of it? Who supplied it? Any help is appreciated. Oh I believe the tank from a 34L model may fit mine also but not sure.
Reply With Quote
  #6
Old 3 Mar 2012
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
There are tanks for your bike on ebay, 34L is the same tank as the 55W, the only difference is the graphics on the 55W they slant backwards where the 34L sit upright.

Here`s one with in Germany right now, its cheap because its black so you would need to paint it & put new graphics on, which are available but getting the correct supplier is important.

But we see them all the time (34L`s mainly) but the odd 55W tank comes along every few months.

ebay.de (germany) is the best place to hunt for them.

Ive got one or two hanging up.



Mezo.
Reply With Quote
  #7
Old 17 Apr 2012
Registered Users
Veteran HUBBer

Join Date: Jan 2012
Location: North London
Posts: 102
How about this one that I am selling at the moment?

eBay - The UK's Online Marketplace

regards
theoneandonlymin

Now sold and on its way to Denmark.

Last edited by theoneandonlymin; 29 Apr 2012 at 11:15. Reason: update
Reply With Quote
  #8
Old 26 Apr 2012
Registered Users
New on the HUBB

Join Date: Apr 2012
Posts: 7
Quote:
Originally Posted by wabco63 View Post
this might sound like a stretch but i know where you can get the hardware for your bike , Bent bike located in langley BC canada has on for a 1990 xt 600 now the tank wont fit but it has all the hardware

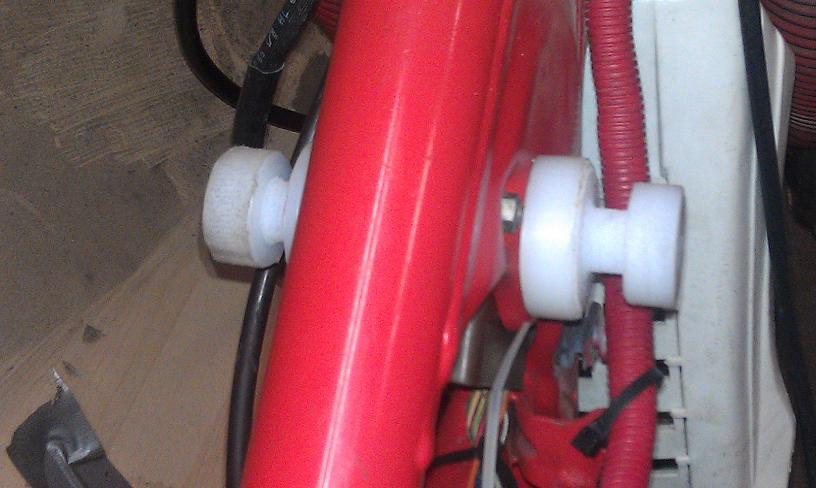

I realize the age of this thread but will post this as I couldnt find anything else to work . I made these out of some plastic and put a metal sleeve inside it for strength
Attached Thumbnails
1986 XT600 Acerbis Desert Fuel Tank-isize-edit.jpg

Reply With Quote
  #9
Old 6 May 2012
Registered Users
New on the HUBB

Join Date: May 2012
Posts: 4
Hi, Snofrog (and others) I'm from Belgium.
I'm trying to mount an Acerbis tank on my old XT600 1986...but I don't find any mounting kit...
You've done a nice job!
May I ask you the measures of your plastic pieces?
Thank you!
Reply With Quote
  #10
Old 7 May 2012
Registered Users
New on the HUBB

Join Date: Apr 2012
Posts: 7
Quote:
Originally Posted by Jo Belgium View Post
Hi, Snofrog (and others) I'm from Belgium.
I'm trying to mount an Acerbis tank on my old XT600 1986...but I don't find any mounting kit...
You've done a nice job!
May I ask you the measures of your plastic pieces?
Thank you!
I no longer have the notes from the build but if you can give me a day or two to pull it apart I will get them for you . Mark
__________________
I am the thread killer.
Reply With Quote
  #11
Old 7 May 2012
Registered Users
New on the HUBB

Join Date: May 2012
Posts: 4
It's perfect!!!! Thank you very much!!!
You're my savior
Reply With Quote
  #12
Old 9 May 2012
Registered Users
New on the HUBB

Join Date: Apr 2012
Posts: 7

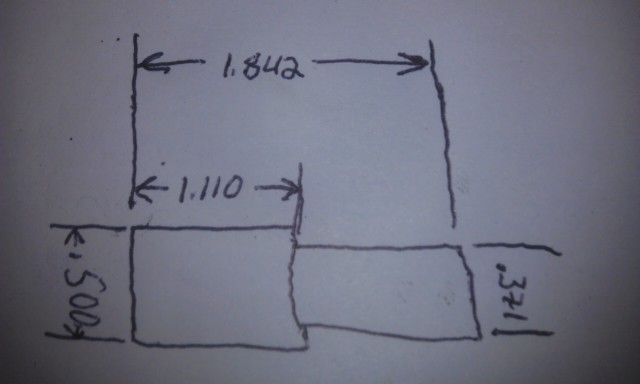

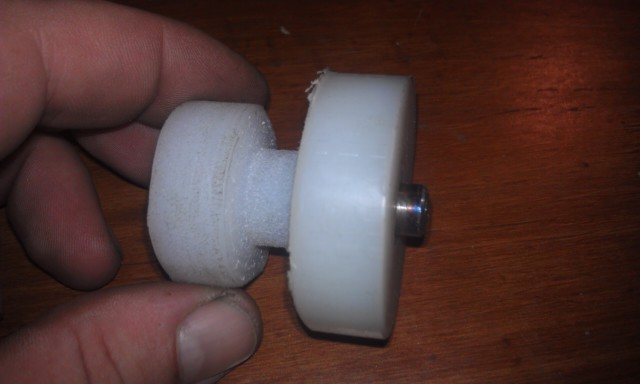

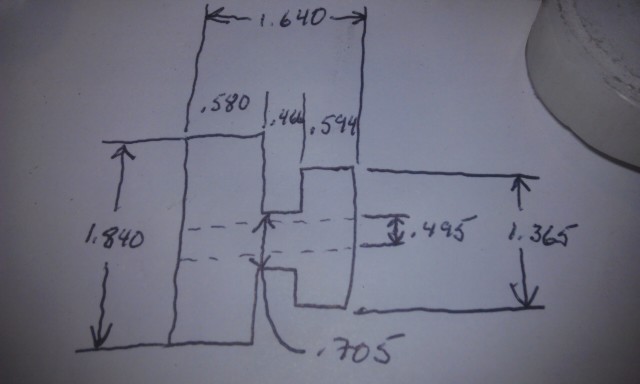

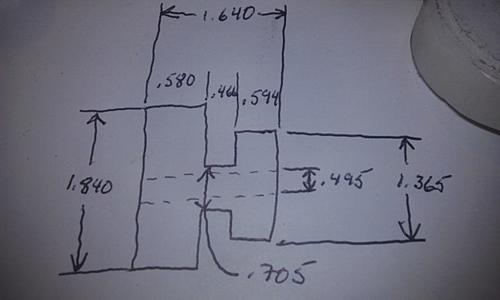

here you go , all dimensions are in inches
Attached Thumbnails
1986 XT600 Acerbis Desert Fuel Tank-imag0315.jpg

1986 XT600 Acerbis Desert Fuel Tank-imag0316.jpg

1986 XT600 Acerbis Desert Fuel Tank-imag0314.jpg

__________________
I am the thread killer.
Reply With Quote
  #13
Old 9 May 2012
Registered Users
New on the HUBB

Join Date: May 2012
Posts: 4
Thank you very much!
I will translate these in centimeters...
Reply With Quote
  #14
Old 10 May 2012
Registered Users
New on the HUBB

Join Date: Apr 2012
Posts: 7
Quote:
Originally Posted by Jo Belgium View Post
Thank you very much!
I will translate these in centimeters...
let me know how it works out for you
__________________
I am the thread killer.
Reply With Quote
