Question 1990 XT600 Head / Cam Journal Repair
I picked up an XT600 with 11,000 miles. I took the head off and the cam and head journals are scratched. In some older post (https://www.horizonsunlimited.com/hu...cam-worn-53548), I saw suggestions to 1. TIG weld the journals and have them machined, 2. machine the bearing bore and insert metal replacement journals or 3. use bronze journals.

My question is, are there any recommendations for shops in the U.S that can fix my scored cam and head journals?

Thanks
Jim
Reply With Quote
  #2
Old 7 Jul 2021
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
post pics of those "scratched" journals

unless you have previous experience and know what you are looking at, you might be worrying for nothing.


second, if journals are indeed bad, it could just be just tip of the iceberg, what about the rockers? and very likely oil pump is bad (didnt send oil to head) and the reason is often gearbox debris that detroyed it.


lets see some good pics, then I can give you advice, in such a case, IMHO its wrong to give an opinion without seeing, you might not need a repair in the first place...
Last edited by turboguzzi; 7 Jul 2021 at 18:22.
Reply With Quote
  #3
Old 8 Jul 2021
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Quote:
Originally Posted by turboguzzi View Post
post pics of those "scratched" journals
What Turbo said.

Besides even if they are bad (doubtful with that low milage) it would be cheaper to just buy a used head off ebay rather than trying to repair yours.

Mezo.
Reply With Quote
  #4
Old 9 Jul 2021
Registered Users
New on the HUBB

Join Date: Jul 2021
Posts: 5
1990 XT600 Head / Cam Journal Repair
Attached are pictures. The outside journals on the cam are more worn and the left most journal on the top/bottom of the head.

If they aren't worn enough for machine work, do you recommend any "clean up" or other treatment?

Thanks
Attached Thumbnails

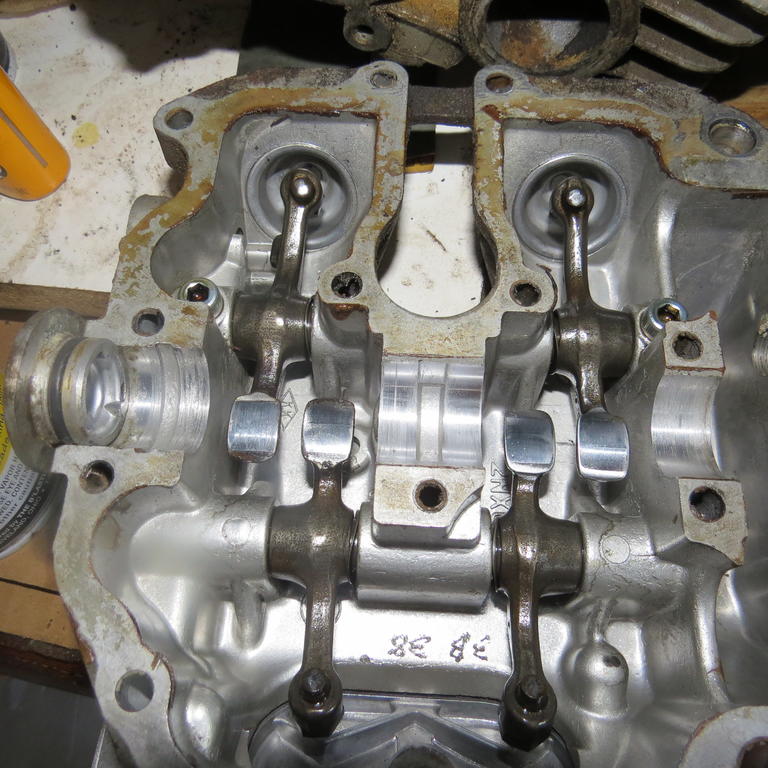

1990 XT600 Head / Cam Journal Repair-img_4427.jpg

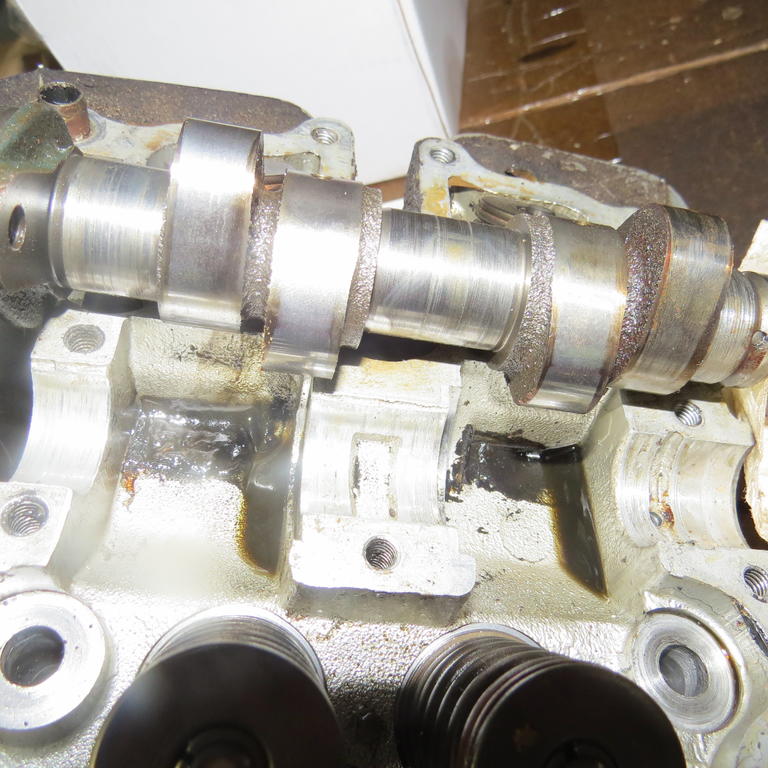

1990 XT600 Head / Cam Journal Repair-img_4425.jpg

Reply With Quote
  #5
Old 9 Jul 2021
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
thats an ok condition head in my book



maybe take a pic of the most worn area you are mentioning, both head and cam, hard to see them in these bigger pics.


was there any specific reason you took the valve cover off? like noise or was it just paranoia ?
Reply With Quote
  #6
Old 9 Jul 2021
Registered Users
New on the HUBB

Join Date: Jul 2021
Posts: 5
1990 XT600 Head / Cam Journal Repair
More pictures - the cam chain side journal; top of head, cam and bottom respectively.

I took the head and cylinder off because the engine wouldn't rotate. I probably didn't try hard enough though because the cylinder came off without much struggle after the head was off. Machine shop bored cylinder +2.00mm (to 97.00mm) and I got a new piston. Shop said they couldn't fix head, but I am thinking something can be done with it versus getting replacements (I am not going racing and it is an old dirt bike).

Thanks for the feedback.
Jim
Attached Thumbnails

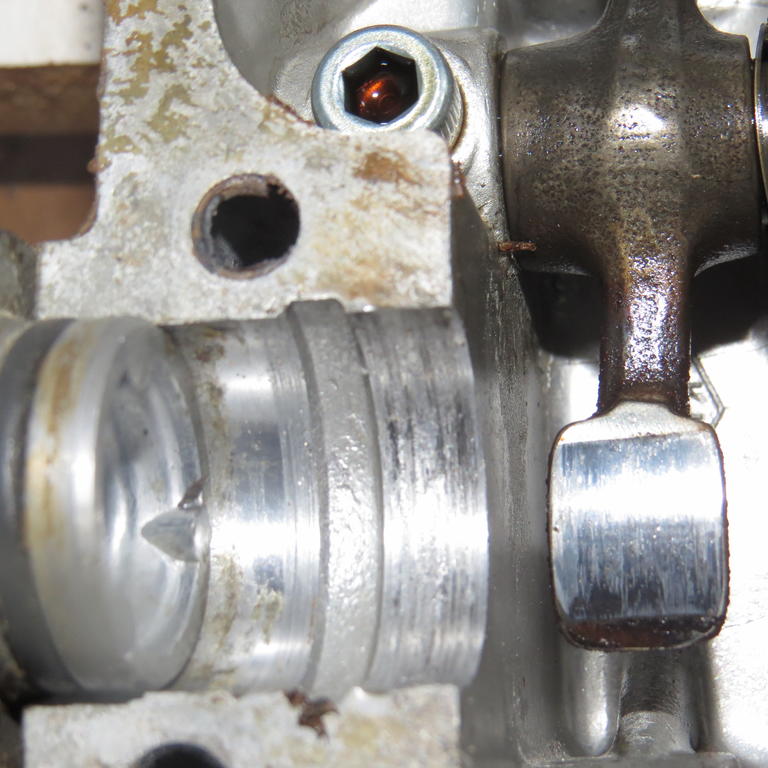

1990 XT600 Head / Cam Journal Repair-img_4431.jpg

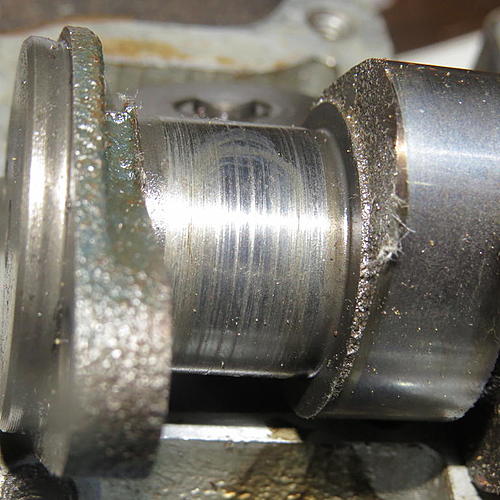

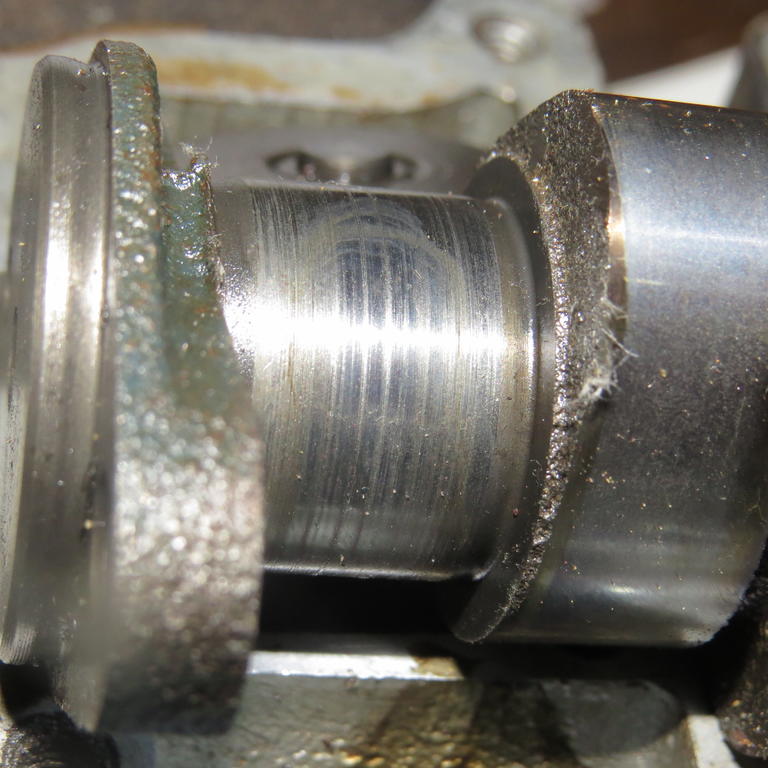

1990 XT600 Head / Cam Journal Repair-img_4430.jpg

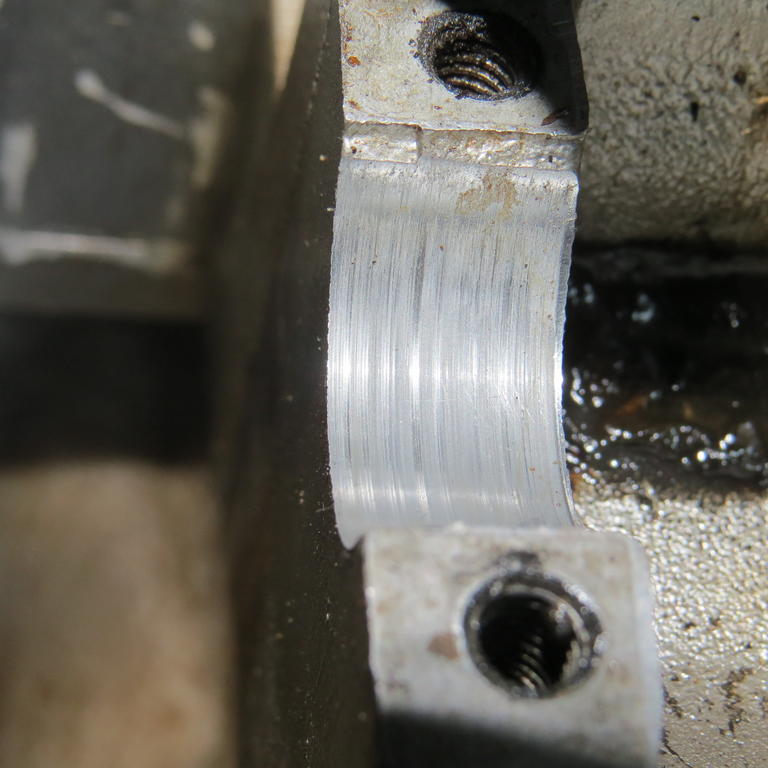

1990 XT600 Head / Cam Journal Repair-img_4429.jpg

Reply With Quote
  #7
Old 9 Jul 2021
N67's Avatar
N67 N67 is online now
Registered Users
Veteran HUBBer

Join Date: Oct 2016
Location: Dusheti, Georgia
Posts: 196
can't do any assessments.
in long term, just wanted to suggest using magnets - at least on the oil drain plug (fastest and easiest).
so far can't find that topic, but i do remember from this forum that it is also doable just below oil pump (with flat hdd magnets). this option should be the best.
Reply With Quote
  #8
Old 10 Jul 2021
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
That`s not normal wear, its starved of oil.

Mezo.
Reply With Quote
  #9
Old 10 Jul 2021
Registered Users
New on the HUBB

Join Date: Jul 2021
Posts: 5
1990 XT600 Head / Cam Journal Repair
Correct.

What do I do about the scored journals?

Thanks
Reply With Quote
  #10
Old 11 Jul 2021
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
I know this isn't the answer you want to hear, but ask your self WHY it was oil starved.

Don't know any machine shops in the USA to do the work, one I know locally would simply mill the journal deeper with a spherical bit and then take a lick of the mating head to cover surface to restore clearance. No need to weld



But like I said in my first Post, question is why it got oil starved, you need to check and solve the roo9t cause.,
Reply With Quote
  #11
Old 11 Jul 2021
Registered Users
New on the HUBB

Join Date: Jul 2021
Posts: 5
1990 XT600 Head / Cam Journal Repair
Thanks, I will look into your suggestion.

Regarding root cause, I'll investigate. I suspect, the owner let the oil level run low, but will look for other evidence.
