Front axlebolt holder.

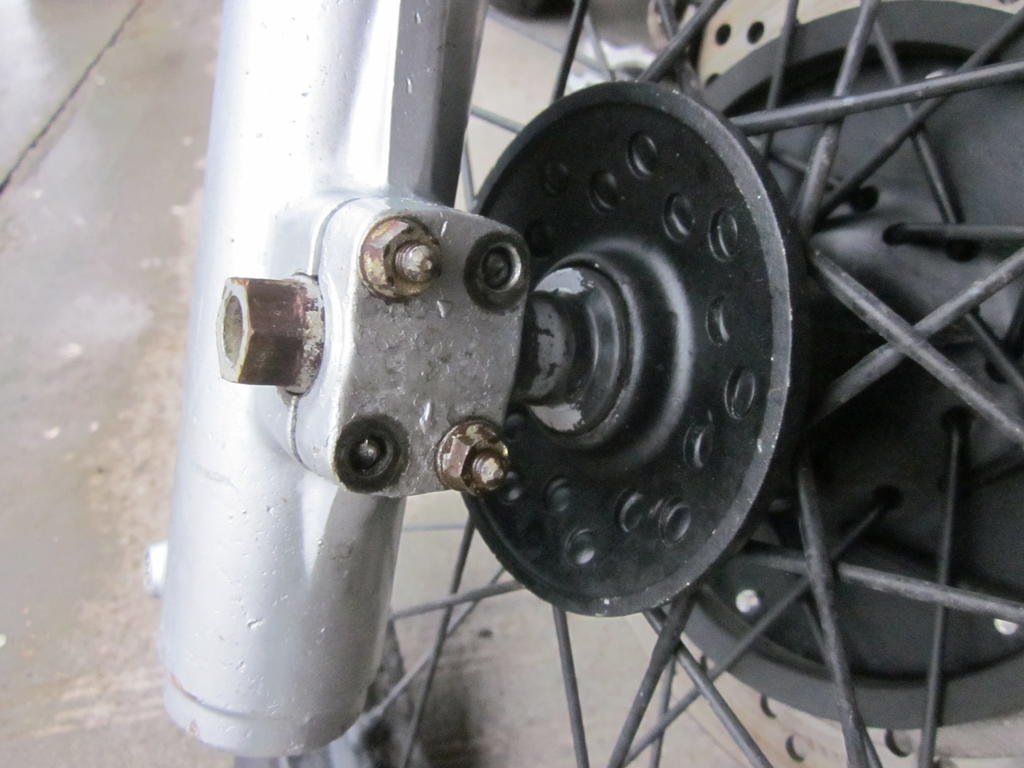

On my XT 600, 1990 mod, two of the 6mm bolts holding the front axlebolt holder is broken.
Are theese bolts pinbolts that can be replaced?
Attached Thumbnails
Front axlebolt holder.-xt-600.jpg

Reply With Quote
  #2
Old 3 Dec 2016
Benson-1215's Avatar
Registered Users
HUBB regular

Join Date: Dec 2012
Location: Caerphilly
Posts: 39
Yes looking at the two remaining I would do them all . As there are two types of material Cast Aluminium alloy and steel apply heat to the area and using two nuts tightened up against each other turn the bottom one anticlockwise to remove the old stud.

Sent from my SM-G920F using Tapatalk
__________________
"I came into this world with nothing and with careful management
I still have most of it left"
Reply With Quote
  #3
Old 3 Dec 2016
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Replace with a 6mm threaded rod, or cuf of the boltheads of a 6mm bolt and use them as a stud.
Reply With Quote
  #4
Old 3 Dec 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
This maybe not be an easy job, maybe best welding a nut on the remaining to get them out. Steel and alu are no good mix, sometimes its like the are welded togheter.
Reply With Quote
  #5
Old 4 Dec 2016
Registered Users
Veteran HUBBer

Join Date: Jun 2012
Posts: 135
First of Id spray the nuts and studs with wd40 and remove the nuts. Remove the retaining plate and then use molegrips or similar to remove the studs.

If that dont work use the other given options..
Reply With Quote
  #6
Old 4 Dec 2016
Registered Users
New on the HUBB

Join Date: Dec 2016
Posts: 2
Thanks a lot for advise :-) Will try to repair next week.
Reply With Quote
  #7
Old 4 Dec 2016
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Also check that alloy plate is not cracked, ive had one with a hairline crack, best spotted ftom the back (where it touches the axle).

Mezo.
Reply With Quote
  #8
Old 12 Dec 2016
N67's Avatar
N67 N67 is online now
Registered Users
Veteran HUBBer

Join Date: Oct 2016
Location: Dusheti, Georgia
Posts: 201
I had exactly the same issue on two bolts.
there's no need to worry, any good turner could fix it in few minutes without a welding.
you might need new bolts and hopefully there isn't any corrosion. that's all.

in general, these bolts seem to be not strong enough. I'd replace all 4 in advance with a stronger ones...
Reply With Quote
  #9
Old 12 Dec 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
Nothing wrong with the original bolts, problem is that people dont pay attention to how to set this plate back and they dont use torque wrench.
Reply With Quote
  #10
Old 19 Dec 2016
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
As is was mentioned before,

Remove the wheel and tack weld the top of the remainder of the threads to create a head so you can use vice grips and just rotate it off...

The heat from the tack welds will loosen any corrosion on it but be fast doing it while it's hot!

Or ask a friend with a welding machine to do it for ya
