Headlight (Installing a switch 99 XT600E)

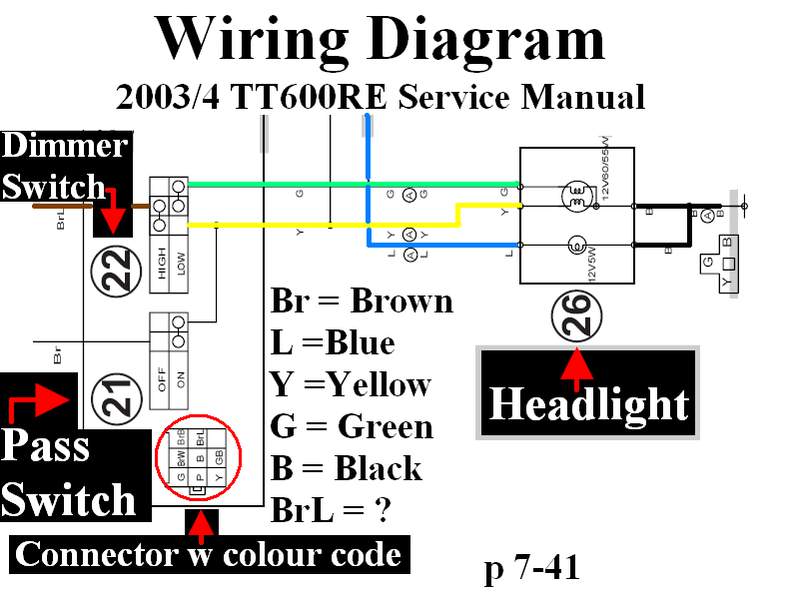

Has anyone installed a switch so you have the option of running with or without the light on ? which wire do you install the switch on ? from what I can make out it would be the BrL wire, top left on the diagram under "Dimmer Switch" also can be seen in the connector with the colour code. would appreciate confirmation before getting all carried away.
Attached Thumbnails
Headlight (Installing a switch 99 XT600E)-xt600headlight1.jpg

Reply With Quote
  #2
Old 20 Jul 2011
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
I have!

In my case I fitted a different headlight switch!

But you can also put one DPDT switch on the Yellow wire and the Green wire on that image you've posted.. Which will cut the power to the lights.

Vando
Reply With Quote
  #3
Old 20 Jul 2011
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
OR a normal ON-OFF switch on the brown wire....

(I'm refering to the Dimmer switch on both cases)


Vando
Reply With Quote
  #4
Old 20 Jul 2011
Registered Users
HUBB regular

Join Date: Sep 2008
Location: Canada
Posts: 84
Thanks Vando, I'm thinking of using a rubber encased toggle like those found on watercraft, save the battery from humping so hard eh, and a bit more juice if I ever wire up my electric vest.
Reply With Quote
  #5
Old 20 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Dunno what year, make and model your bike is, but youre probably not "saving" anything....If anyhting, you'll put more stress on youre reg/rec as it needs to "burn of" more current.

My '03 xt have around 80watts to spare with highbeam on...As in, you can put 80watts more load on the bike before it charges less (but still enough to be able to e-start the bike)

Anyhoot, to help you with youre question, xt600e's from atleast 1996 and up have a switch to turn of all lights.
Reply With Quote
  #6
Old 22 Jul 2011
Registered Users
HUBB regular

Join Date: Sep 2008
Location: Canada
Posts: 84
My bike is a 99 originally from Austria, I've looked everywhere Jens where do I find the secret "Off" switch ?
Reply With Quote
  #7
Old 22 Jul 2011
Registered Users
HUBB regular

Join Date: Sep 2008
Location: Canada
Posts: 84

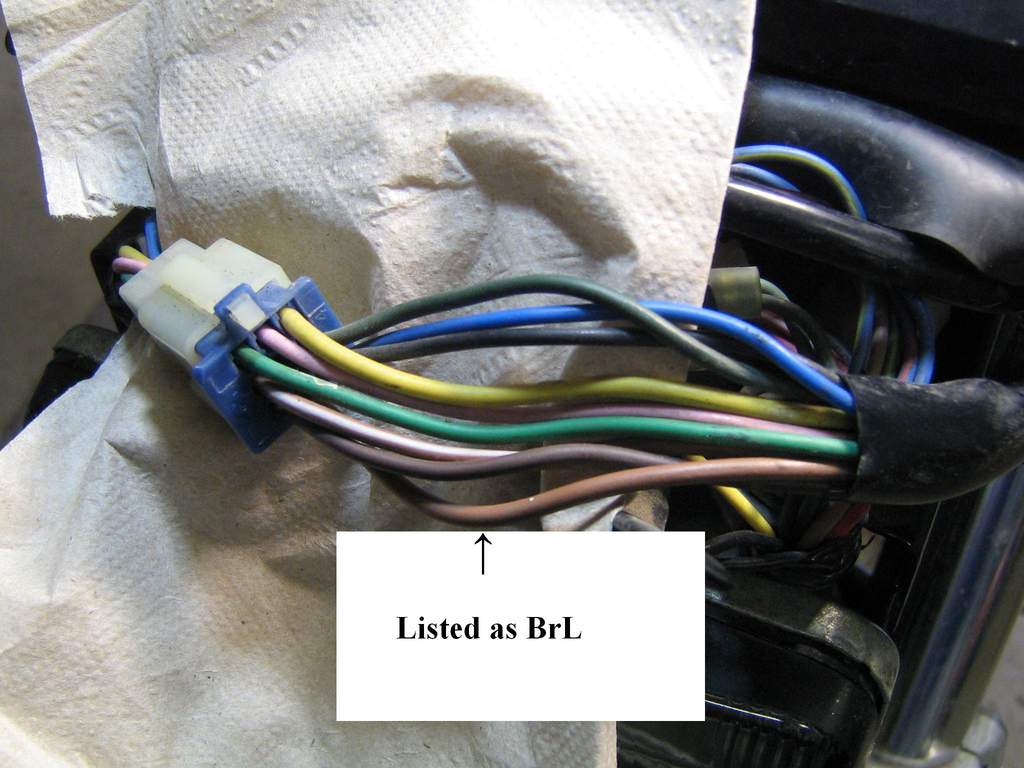

So I'll cut into this wire, on the connector it's opposite the pink wire, listed as BrL.
Attached Thumbnails
Headlight (Installing a switch 99 XT600E)-img_1268a.jpg

Reply With Quote
  #8
Old 23 Jul 2011
bacardi23's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2007
Location: XXX<-Portugal->Azores->Santa Maria (island)
Posts: 1,544
BrL it should be!

Just be sure to make the hack before the original dimmer switch!


Vando
Reply With Quote
  #9
Old 24 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Not the best pic but....



With the switch forward rear and front lights are on + brake light (if applied)
In the middle, position light, and rear light + brake light (if applied)
Towards the back, no light (dont think brake light come on either)

Thought this swich was normal, it is here in Denmark anyway.
Reply With Quote
  #10
Old 25 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Nov 2009
Location: christchurch newzealand
Posts: 384
Nice tank Jens,is it an acerbis or clarke ?....
Reply With Quote
  #11
Old 25 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Acerbis 23ltr, actually holds 25ltr when completely dry. Love it
Reply With Quote
  #12
Old 26 Jul 2011
Registered Users
HUBB regular

Join Date: Sep 2008
Location: Canada
Posts: 84
Thanks Jens, are you meaning the sliding switch ? the only manual I have for the bike is in Austrian I'll have to translate, the sliding switch is called "Lichtschalter" I thought it was for dimming the guage lights.
Reply With Quote
  #13
Old 26 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Yeah, the slide switch
Reply With Quote
  #14
Old 27 Jul 2011
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
Heres the a pic of all the light switches:



The red switch is overtaking lights, it turns on high beam as long is the switch is pulled. Its made for blinking down the road when overtaking, to see whats ahead, and alarm the person youre overtaking, making him know that youre about to go pass him.

Then there the slideswitch as described earlier. The brakelights does come on even when the lights is turned off.

And then the highbeam/low beam switch.

Dont know how the bikes in other countries is equipped, but I like what I have
Last edited by Jens Eskildsen; 3 Oct 2011 at 15:45.
