  #1
Old 25 May 2016
Registered Users
New on the HUBB

Join Date: May 2016
Location: Melbourne Australia
Posts: 7
XT600e Starter issues
Hi Guys

My 2001 xt600e battery just died. And I would be thankful if someone could help me to figure out the issue.

I use my bike every day for to commute to work. The last days it took always a bit longer to start up. yesterday it didn't want to start at all, so I thought it might be the battery. I jump started it with my car, and it started up straight away. Later that day it started up ok again.

But today I tried to start it up and and it hardly did anything, so I took the key out and it kept on trying to start up. So I pressed the kill switch, and it kept on trying.

Then I wanted to unscrew the cable from the battery to make it stop. After few sparks and a lot of smoke I got the battery out.

Noooow, before I replace the battery, what should I look after?

I don't want to wreck a brand new battery.

Hope my question is clear, thanks.
Reply With Quote
  #2
Old 25 May 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Solonoid Solenoid Starter Relay Yamaha XT600 1999 2004 | eBay
Reply With Quote
  #3
Old 25 May 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Had a riding lawnmower do that , parked it ,shut it off, went inside the house , came out 15min later and I hear this awful sound . Go over to the mower and it is sitting there spinning over (starter and wires very hot at this point) , ignition key was in the cup holder pocket not even in the ignition, motor not running but spinning away. Relay welded itself together. Glad I came back outside when I did , stuff was hot enough to almost ignite.

Your battery may not be bad if the relay was sticky and draining, just not enough to turn the starter. I'd maybe wait for the new relay to see if you need a new battery as well.
Reply With Quote
  #4
Old 25 May 2016
Registered Users
Veteran HUBBer

Join Date: Dec 2008
Location: Denmark
Posts: 1,417
New relay for sure. You can tap it with a hammer to get it unstuck.

They actually get stuck easier with a low voltage battery.
Reply With Quote
  #5
Old 26 May 2016
Bobmech's Avatar
Registered Users
Veteran HUBBer

Join Date: Sep 2008
Location: BOP , New Zealand
Posts: 185
Here's a thread which may help you decide whether to buy a Chinese or a Genuine starter solenoid

http://www.horizonsunlimited.com/hub...enoid-do-83312

Bob
__________________
Remember that Assumption is the mother of all f**k-ups.
Reply With Quote
  #6
Old 26 May 2016
Registered Users
New on the HUBB

Join Date: May 2016
Location: Melbourne Australia
Posts: 7
Thanks for all the replies

So do I understand this right?

Because the battery was getting weak, it took always longer to start up.
And because I pressed the starter button for always longer times by every start , it damaged the solenoid, causing it to give constant connection.
And this caused the battery to overheat and pop open?

I am new to this, so thanks for your patience.

So now, to fix this and avoid it to happen again.
I should get a Genuine starter solenoid and a stronger battery.

Or is the battery still maybe OK , even though it popped open on the top, if I just close it up again ?

Thanks
Reply With Quote
  #7
Old 26 May 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
If you wanna do this the best way for the future buy a new battery and genuine starter relay!
Reply With Quote
  #8
Old 26 May 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
Replace both. By holding the start button longer and longer, you overheated the solenoid and caused it to warp and stick. Always use OEM. Cheap chinese solenoids will not last from what I've read on this and other forums. I have kick start so no first hand knowledge. Just passing on what I've read...
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #9
Old 26 May 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
China parts are really good to have as extras when you troubleshoot and wait for OEM parts to arrive.
Reply With Quote
  #10
Old 26 May 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
GO China !!!













Reply With Quote
  #11
Old 27 May 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
Been there, don't like it.
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #12
Old 27 May 2016
Registered Users
New on the HUBB

Join Date: May 2016
Location: Melbourne Australia
Posts: 7
Hi

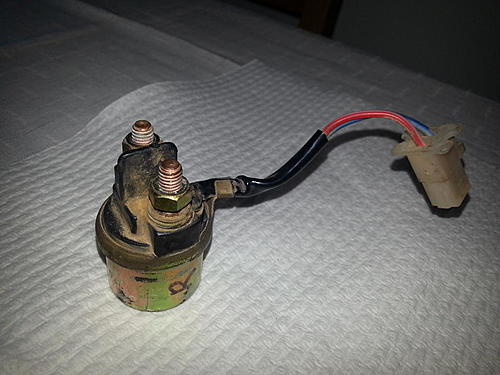

So, think I found the solenoid Starter Relay, and took it out.
But it looks kind of different then the ones I saw on ebay. Like the one xtrock posted or this one, that i am considering getting

Aftermarket Starter Solenoid Yamaha XT600E 1990 TO 2002 | eBay

Or did I take the wrong part out?

I also just realized that I jump started my bike with my car the other day, while my car was running. Which possibly damaged the starter solenoid?
Attached Thumbnails
XT600e Starter issues-20160527_144532.jpg

Reply With Quote
  #13
Old 27 May 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,364
Its the correct part, seems like they use old relay on some of the 4pt. You can buy the original for almost same price Starter Relay Assy
3AY-81940-00-00 4KD-81940-00-00
$50.11
Reply With Quote
  #14
Old 27 May 2016
Registered Users
Veteran HUBBer

Join Date: Sep 2012
Location: Middle USA
Posts: 349
Quote:
Originally Posted by OZXT600e View Post
Hi

I also just realized that I jump started my bike with my car the other day, while my car was running. Which possibly damaged the starter solenoid?
NO, It would just spin the starter a bit faster.
__________________
'84 XT600 is now bored to 2nd oversize and new OEM pistons and rings installed. No more smoking.
Reply With Quote
  #15
Old 5 Jun 2016
Registered Users
New on the HUBB

Join Date: May 2016
Location: Melbourne Australia
Posts: 7

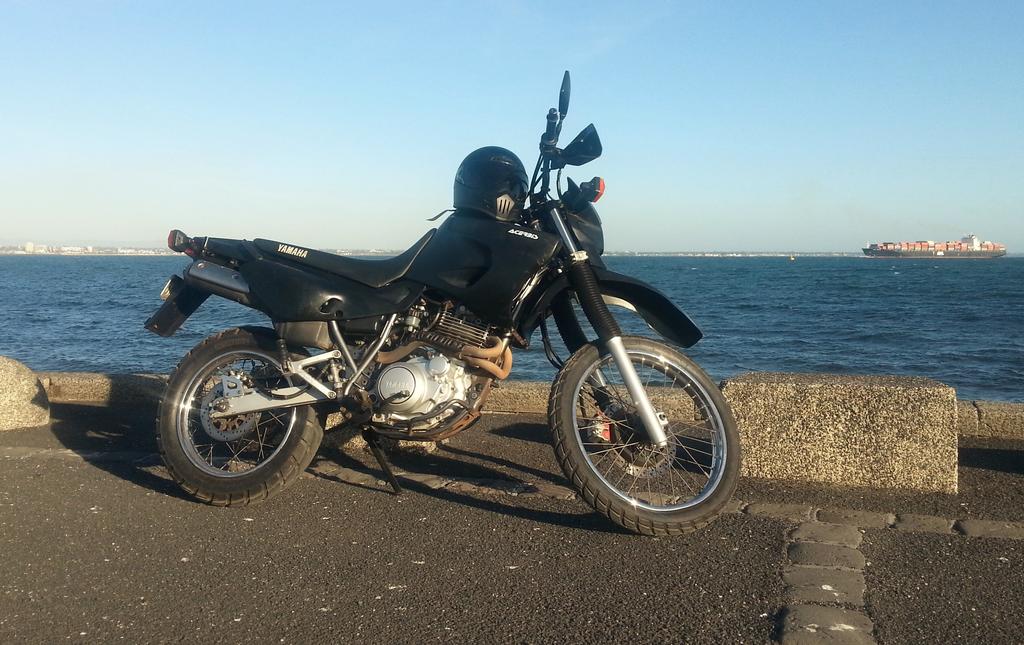

Thanks everyone, my bike is again up and running.
Attached Thumbnails
XT600e Starter issues-20160109_191733.jpg

Reply With Quote
