  #31
Old 25 Jun 2020
Registered Users
Veteran HUBBer

Join Date: May 2014
Location: Crete Greece
Posts: 106
Quote:
Originally Posted by traians View Post
Hi, mi brother took the cranckcase to get it repair, and its impossible ill have to buy one, the crank bearing has some freeplay.
I think im going to order the 3tb low engine because i dont find another one.
hello from Greece ! well xt is very popular here in Greece so we have a lot of used parts.

the site that we use both for cars and bikes is called car.gr

after 5 mins of searching i found this one

https://www.car.gr/parts/view/647091...t600-papagalos

hope it fits!
Reply With Quote
  #32
Old 28 Jun 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
long time nick! still riding like a hooligan?





sending an engine from Greece to the Dominican Republic will not be cheap...
Reply With Quote
  #33
Old 28 Jun 2020
Registered Users
New on the HUBB

Join Date: Jun 2020
Location: Dominican republic
Posts: 16
Quote:
Originally Posted by turboguzzi View Post
long time nick! still riding like a hooligan?





sending an engine from Greece to the Dominican Republic will not be cheap...
Hi
I found this crankcase cover, are the same code as my engine, but how i buy and ship to DR or to United States.


www.car.gr/d10768329
Reply With Quote
  #34
Old 28 Jun 2020
Registered Users
New on the HUBB

Join Date: Jun 2020
Location: Dominican republic
Posts: 16
Quote:
Originally Posted by nickargas View Post
hello from Greece ! well xt is very popular here in Greece so we have a lot of used parts.

the site that we use both for cars and bikes is called car.gr

after 5 mins of searching i found this one

https://www.car.gr/parts/view/647091...t600-papagalos

hope it fits!

Thanks!!!

I found one with the same engine code,


www.car.gr/d10768329

But i dont know how to buy it and ship it to United States or Dom rep.
Reply With Quote
  #35
Old 28 Jun 2020
Registered Users
Veteran HUBBer

Join Date: May 2014
Location: Crete Greece
Posts: 106
Quote:
Originally Posted by traians View Post
Thanks!!!



I found one with the same engine code,





www.car.gr/d10768329



But i dont know how to buy it and ship it to United States or Dom rep.
Send them an email and ask them about shipping costs. I'm not close, I live 400 miles away, otherwise I would stop by personally.

Sent from my MI 8 using Tapatalk
Reply With Quote
  #36
Old 2 Jul 2020
Registered Users
New on the HUBB

Join Date: Jun 2020
Location: Dominican republic
Posts: 16
Quote:
Originally Posted by nickargas View Post
Send them an email and ask them about shipping costs. I'm not close, I live 400 miles away, otherwise I would stop by personally.

Sent from my MI 8 using Tapatalk
thanks!!!

I have send them 2 emails and they don't answer.

right know my only option is the lower engine found on eBay, that engine seems to have the cable clutch in the right side like my engine.

https://www.ebay.com/itm/29329927005...1&isGTR=1#shId
Reply With Quote
  #37
Old 3 Jul 2020
Registered Users
New on the HUBB

Join Date: Jun 2020
Location: Dominican republic
Posts: 16

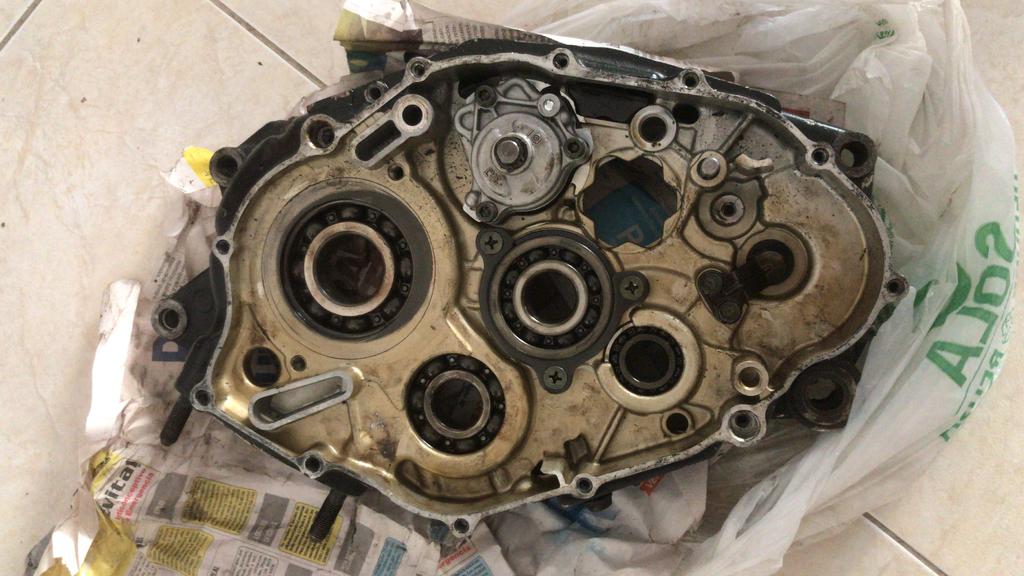

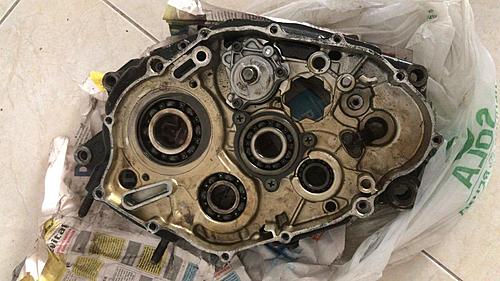

Look at the engine

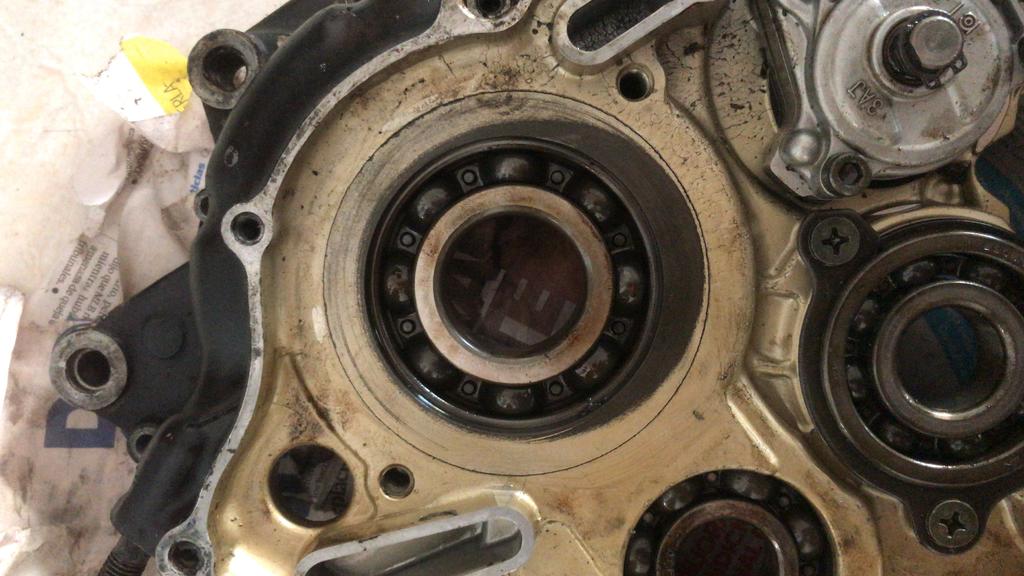

Over the bearing crankshaft is the problem.

I tried to buy the lower engine but is impossible to ship it to me. So i need to fix my cranckcase .
Attached Thumbnails
Yamaha xt600e 2003 dj02 crankcase right broken-c3935089-c1b0-4a78-b128-0129126b1db7.jpg

Yamaha xt600e 2003 dj02 crankcase right broken-d2562419-da3b-4309-8ef6-340514801049.jpg

Reply With Quote
  #38
Old 3 Jul 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
heat the crankcases with a propane torch and drive out all the beairngs first as well as remove the oil pump.


after that, take a picture from the inside too.


in orfer for the weld bead not to stick out, you or a machinist need to make a V groove into the material.



and like i said before, ask the welder to slowly heat the whole case so it doesnt distort, dont let him start welding without doing it.
Reply With Quote
  #39
Old 4 Jul 2020
Registered Users
Veteran HUBBer

Join Date: May 2014
Location: Crete Greece
Posts: 106
i'm always online my friend keeping up with posts that i could help and chat!

come to Crete (that goes for everyone here too) and let's ride together man!

now i'm currently trying to set up my single fcr 39 on my xt.

fiddling with the air and idle etc.

it's a beast and i'm sure you would love riding it!

Quote:
Originally Posted by turboguzzi View Post
long time nick! still riding like a hooligan?





sending an engine from Greece to the Dominican Republic will not be cheap...
Reply With Quote
  #40
Old 6 Jul 2020
Registered Users
New on the HUBB

Join Date: Jun 2020
Location: Dominican republic
Posts: 16
Quote:
Originally Posted by turboguzzi View Post
heat the crankcases with a propane torch and drive out all the beairngs first as well as remove the oil pump.


after that, take a picture from the inside too.


in orfer for the weld bead not to stick out, you or a machinist need to make a V groove into the material.



and like i said before, ask the welder to slowly heat the whole case so it doesnt distort, dont let him start welding without doing it.

thanks!!! I'll do that. I take pictures and upload them here.
Reply With Quote
  #41
Old 6 Jul 2020
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Quote:
Originally Posted by turboguzzi View Post
heat the crankcases with a propane torch.
The propane torch was my late fathers most useful tool (along with mothers freezer).

MEZ PORTING HOME PAGE

Mezo.
Reply With Quote
  #42
Old 6 Jul 2020
Registered Users
Veteran HUBBer

Join Date: Feb 2012
Location: Milan, Italy
Posts: 607
WOW, hat is off... of course heard about him, i do vintage road racing...


Did you follow his steps into porting?


I do my own, even built a flow bench, but always good to hear from somebody so close to a master!
Reply With Quote
  #43
Old 7 Jul 2020
R.I.P. 25 November 2021
Veteran HUBBer

Join Date: Feb 2010
Posts: 688
Quote:
Originally Posted by turboguzzi View Post
WOW, hat is off... of course heard about him
I sent you a PM, didn't want hijack the thread.

Mezo.
Reply With Quote
