Air cut off valve jammed.

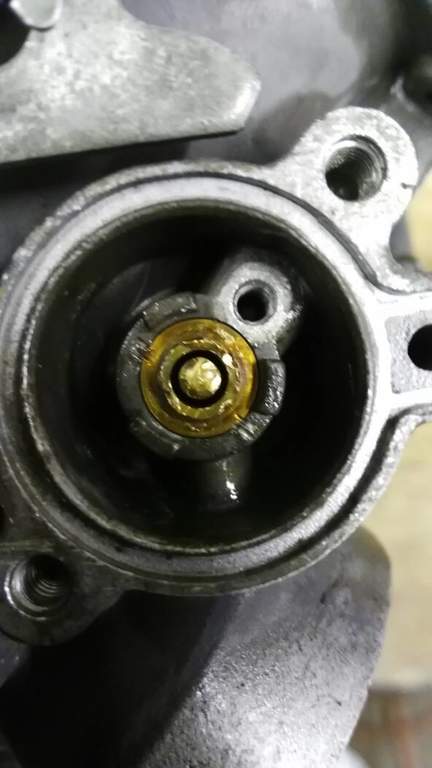

Before I take my newly acquired TT600 to Mongolia I thought I'd strip and clean the carb.. I discovered a jammed Air Cut off valve.

It's not budging and I can't get it out. Someone has already had a go in the past as there are tool marks.

Any tricks ???

Air cut off valve jammed.-uploadfromtaptalk1452510529950.jpg
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Last edited by *Touring Ted*; 14 Jan 2016 at 00:01.
Reply With Quote
  #2
Old 11 Jan 2016
g6snl's Avatar
Contributing Member
Veteran HUBBer

Join Date: Aug 2011
Location: Home in Essex GB
Posts: 564
Don't you just hate it when you find stuff like that!

Heat
Freeze
Boil
Soak in coke. Seriously! it has worked for me on things.
Pray ( this has never worked )

Drill out and replace?
__________________
Regards Tim

Learning my craft for the big stuff, it won't be long now and it's not that far anyway
Reply With Quote
  #3
Old 11 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
I was going to use heat but there is plastic washer behind it. Which may melt and block the vent hole.. Making my day even worse ha !!

It's soaking in WD40 now. Still jammed. Brass means it too sold to get hold off too. Daaaaaam.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #4
Old 11 Jan 2016
xtrock's Avatar
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Norway
Posts: 1,371
Do you have wisegrip? Maybe use dremel and cutting a few lines for better grip.
Reply With Quote
  #5
Old 11 Jan 2016
mollydog's Avatar
R.I.P.
Veteran HUBBer

Join Date: Aug 2003
Location: california
Posts: 3,824
Ted,
If it's corrosion holding it (doubtful?) the Go is a 50/50 mix (more or less) of Acetone and ATF (automatic trans fluid). Best penetrant rust dissolver ever. Beats them all.

If that does not work you may have to drill it or replace carb body.

If you can cut a BIG screwdriver slot in it (Dremel) try using an IMPACT Driver to break it loose. NOTE: you may break carb body doing this, so take care.
Reply With Quote
  #6
Old 11 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
I've had on good word from someone who works these carbs daily that they won't pull out. The core needs drilling out out, the outer tapping and then drawn out.

Not much margin for error there.. But if needs must.


The bike didn't pop on over-run. But I don't know if it's jammed on or off.

It can be tricky to start (A TT600 niggle), but runs well.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #7
Old 13 Jan 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
I had one that was stuck , don't know if as bad but I believe I took an air hose to the port from the back side to pop it out . I have a rubber tip that can be pressed against the hole and seal it up the 150psi. I don't think mine was corroded in just some gummy old fuel.
Reply With Quote
  #8
Old 13 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by jjrider View Post
I had one that was stuck , don't know if as bad but I believe I took an air hose to the port from the back side to pop it out .
Tried that.. Not budging at all.
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #9
Old 13 Jan 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Grease gun ? pump it from the same side as the air gun? They build up quite a bit of pressure , holding the tip tight would be the hard part.

Not much else but to drill and try tapping for a pullout.

The other option I see is that hole that the plunger is stuck in is cast all the way to the back side, just not drilled through. A person could drill from the end to get a 4mm punch in and once out, tap the hole for a pipe plug.
Reply With Quote
  #10
Old 13 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Part of the problem is that I don't know exactly what is behind the plunger. I have bought a repair kit which is the post but that doesn't match the rubbish picture of it in the manual...
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #11
Old 13 Jan 2016
Registered Users
HUBB regular

Join Date: Jun 2012
Location: Colchester, Essex
Posts: 81
I've no experience with these motors, but you could try getting the assembly well warmed up with a hot air gun, then shocking it with Wurth Rost Off Ice, or similar.
It has worked for me in the past.
Reply With Quote
  #12
Old 13 Jan 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
Just have to ask



It's just drilled the diameter of the plunger outer piece then has a flat bottom for the spring. The wall on the back side is maybe 1 to 1.5mm thick.

Once the whole part is out on mine I see air or grease from that hole in the back won't have as much push as it could because of where the hole is , though all that is holding is 1mm of that endcap if the plunger is moving , if the plunger is also stuck then there is quite a bit more holding. It took quite a bit of force to get mine out here , and my plunger was loose and working, just that cap was tight as heck.
Reply With Quote
  #13
Old 13 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
Quote:
Originally Posted by jjrider View Post
Just have to ask



It's just drilled the diameter of the plunger outer piece then has a flat bottom for the spring. The wall on the back side is maybe 1 to 1.5mm thick.

Once the whole part is out on mine I see air or grease from that hole in the back won't have as much push as it could because of where the hole is , though all that is holding is 1mm of that endcap if the plunger is moving , if the plunger is also stuck then there is quite a bit more holding. It took quite a bit of force to get mine out here , and my plunger was loose and working, just that cap was tight as heck.

Great..... Thanks a lot


Just to confirm. Did you drill the plunger out of the middle first ???

Or did you just drill out the top collar ???

When I blow air into mine, it just comes out of the centre.


Thanks, Ted
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #14
Old 14 Jan 2016
*Touring Ted*'s Avatar
Contributing Member
Veteran HUBBer

Join Date: Jul 2005
Location: Wirral, England.
Posts: 5,673
I think I will drill the centre plunger out until just below the collar. Then I will increase drill bit size until it is just a little smaller than the diameter of the collar. It should come out then.

Then I will have to see what the plunger is like underneath.

These carbs are VERY rare. I don't want to screw it up !!
__________________
Did some trips.
Rode some bikes.
Fix them for a living.
Can't say anymore.
Reply With Quote
  #15
Old 14 Jan 2016
Registered Users
Veteran HUBBer

Join Date: May 2013
Location: Wisconsin, USA
Posts: 827
I didn't have to drill anything , this one came out just pulling out on the plunger. If you drilled from the back with a .125 drill you could just push the setup out with a punch . The hole would need to be plugged back up though.

My internet access is messed up and almost impossible to upload the picture for the plunger (why I couldn't even respond earlier)
